Current-Limited, Power Distribution Switches,SGM2594C Replace UP7566.
SGM2594C.pdf優(yōu)勢替代
FEATURES
? Compliant to USB Specifications
? Operating Range: 2.7 V to 5.5 V
? 75mΩ (5V Input) High Side MOSFET Switch
? 100uA Typical Quiescent Current
? <1uA Typical Shutdown Current
? Over Current/ Short Circuit Protection
? Output Reverse Voltage/Current Protection
? Fast Short-Circuit Response Time: 2us (typ.)
? Thermal Shutdown Protection
? Deglitched Open Drain Fault Flag
? Slow Turn On and Fast Turn Off
? Enable Active-High or Active-Low
? Pb-Free (RoHS Compliant)
? UL Approved E316940
? TUV EN62368-1(Certification No.:R50179160)
? CB IEC62368-1 (Certification No.:50345136)

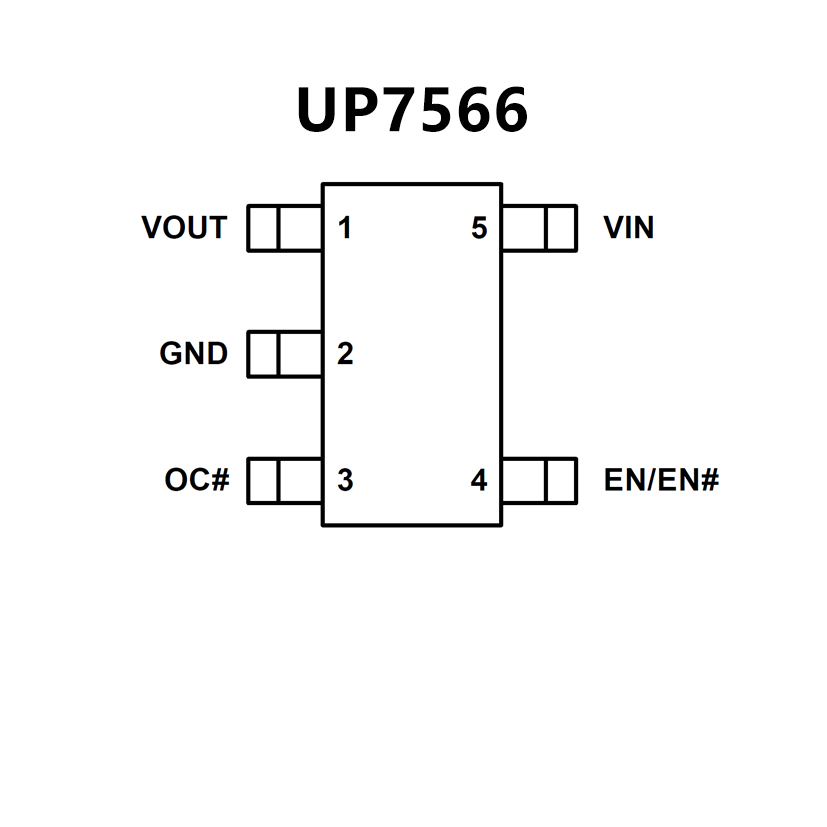

PIN CONFIGUTION
