Power Distribution Switches, SGM2590XN5G/TR Replace DIO7002AST5.
SGM2590
SGM2590.pdf
SGM2590.pdfFEATURES
? High-side N-MOSFET
? On-Resistance: 60mΩ (TYP)
? Programmable Current Limit Range: 0.1A to 3A
1.5A at RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 6V
? Quiescent Current: 27μA (TYP)
? Shutdown Current: 0.28μA (TYP)
? Soft-Start Function
? Over-Temperature Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Quick Output Discharge (SGM2590D Only)
? 1.2MΩ Pull-Down Resistor at EN Pin
? Available in a Green SOT-23-5 Package

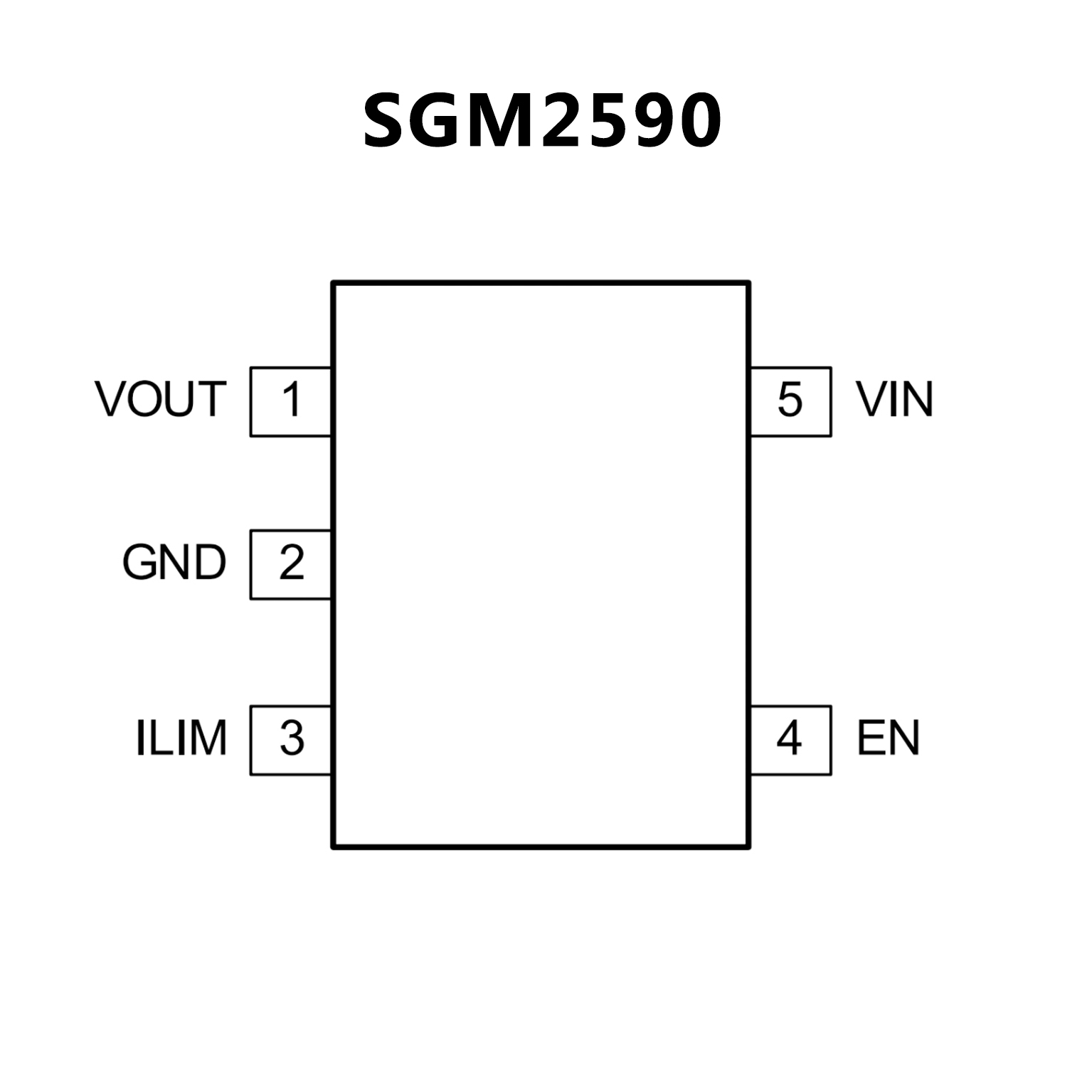

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input voltage: 2.7V to 5.5V
? Typical 70m? on-resistance
? 2.5A load current capability
? Programmable current limit
? Enable polarity:
DIO7002A: Active high
DIO7002B: Active Low
? Over current protection, short circuit protection and over temperature protection
? Reverse blocking (no body diode)
? No reverse current when power ON or power OFF
? Compact SOT23-5 package minimizes the board space

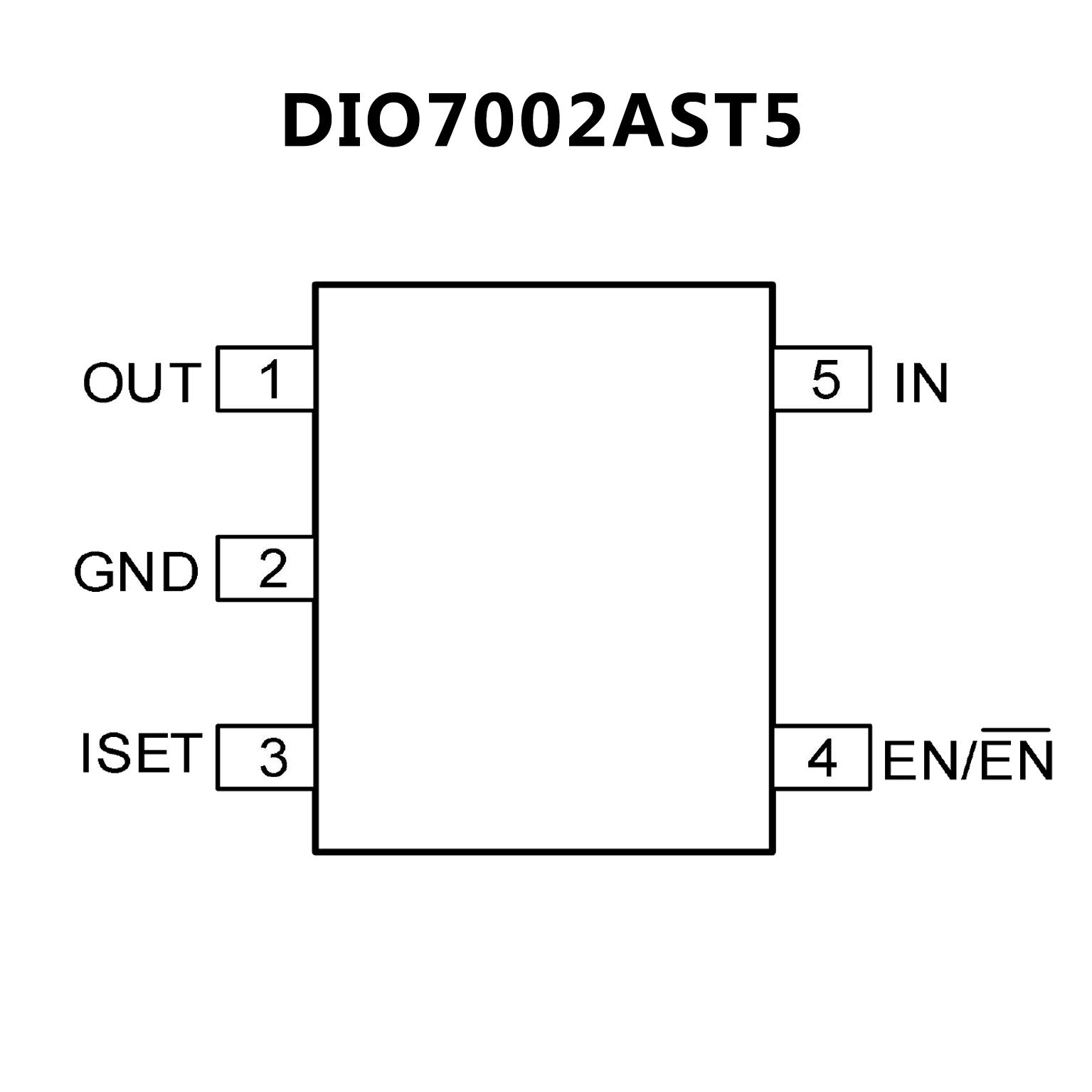

PIN CONFIGUTION
