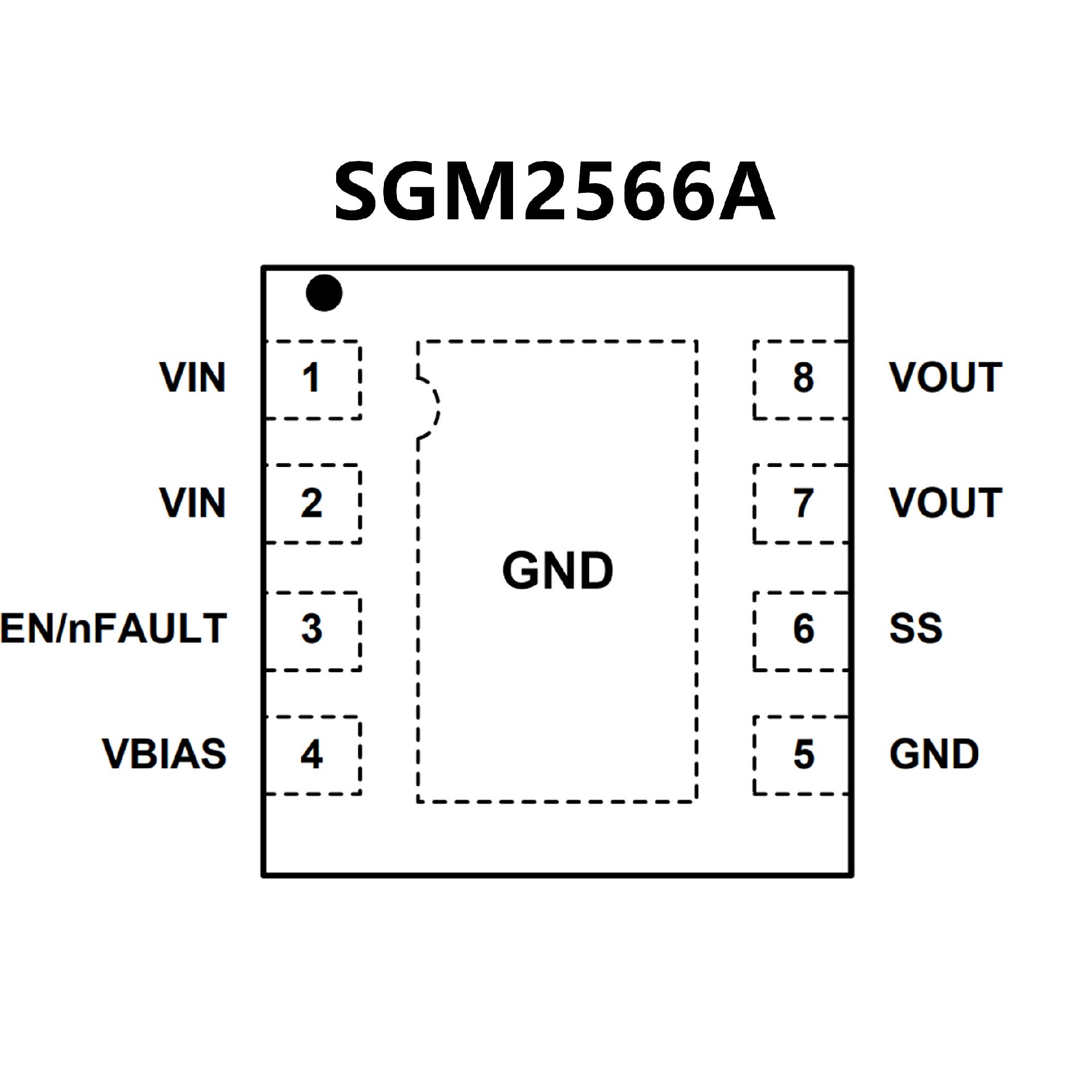

SGM2566A.pdf? Input Voltage Range: 0.8V to 5.3V
? Ultra-Low On-Resistance:
RDSON = 17m? at VIN = 3.3V (VBIAS = 5V)
? 6A Maximum Continuous Switch Current
? Low Quiescent Current:16μA
(VBIAS = 5V)10μA (VBIAS = 2.5V)
? Reverse Current Blocking Support
? Built-In Thermal Shutdown
? Short-Circuit Protection
? Soft-Start Function and Configurable Rise Time
? Enable Input or Alert Output
(EN/nFAULT Pin)
? Low Control Input Threshold Enables
Use of 1.2V,1.8V, 2.5V and 3.3V Logic
? SGM2566A: Quick Output Discharge
? -40℃ to +105℃ Operating Temperature Range
? Available in a Green TDFN-2×2-8L Package

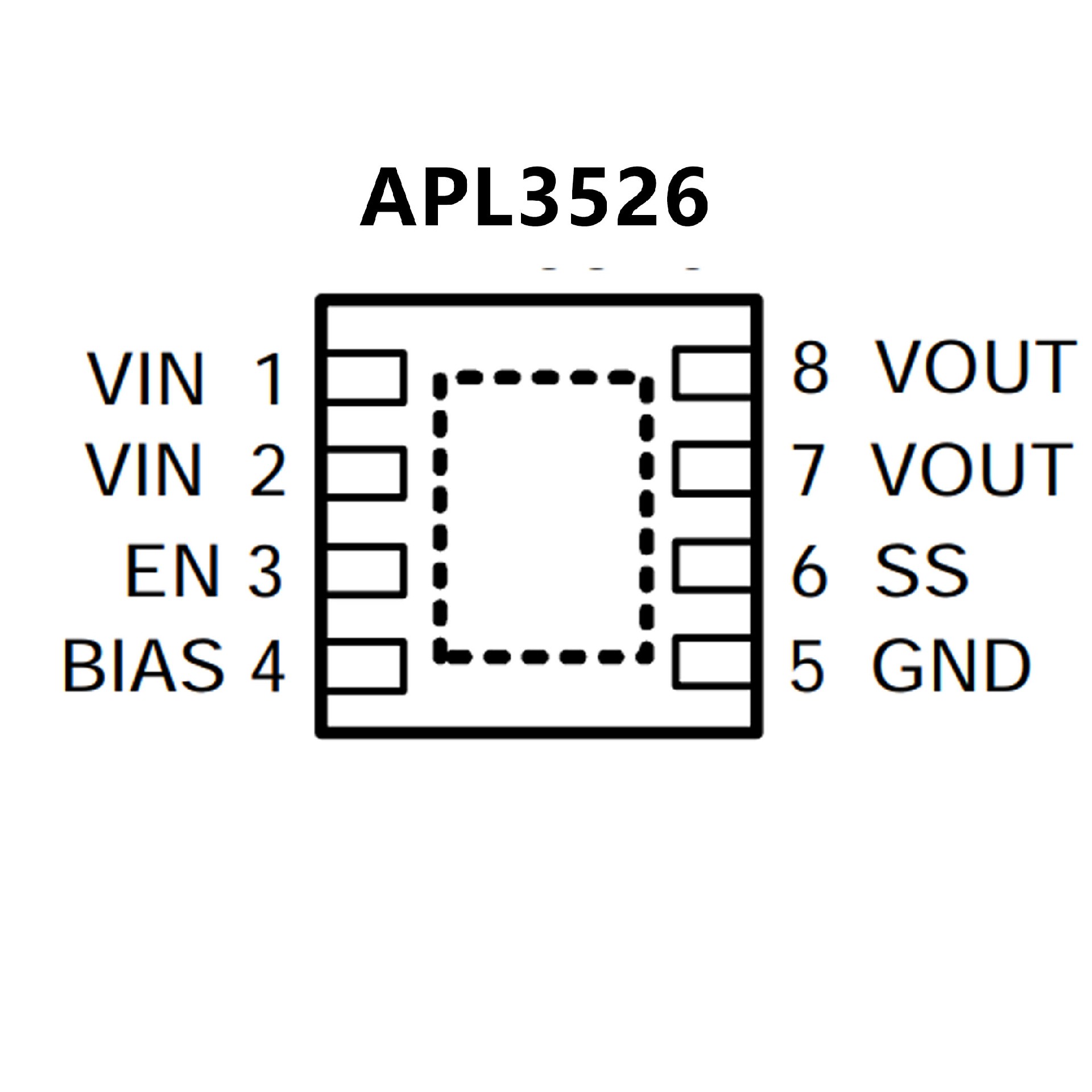

? 15m?(Typical) On-resistance
? 6A Continuous Current
? Soft Start Time Programmable by External Capacitor
? Wide Input Voltage Range (VIN): 0.8V to 5.5V
? Supply Voltage Range (VBIAS): 3V to 5.5V
? Output Discharge when Switch Disabled
? Reverse Current Blocking when Switch Disabled
? Over-Temperature Protection
? Enable Input
? Lead Free and Green Devices
Available (RoHS Compliant)
