5.5V, 4A, 16mΩ RON Load Switch with Reverse Current Protection,SGM2564 Replace NCP451.
SGM2564
SGM2564.pdf
SGM2564.pdfFEATURES
? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 4A
? Low On-Resistance
RON = 16mΩ at VIN = 3.3V
RON = 16mΩ at VIN = 1.8V
? Low Shutdown Current: 180nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.2V GPIO Control Input
? Bidirectional Power Supply for Power Zone Application
? Controlled Slew Rate to Avoid Inrush Current
? Quick Output Discharge
? Available in a Green WLCSP-1.45×0.95-6B Package

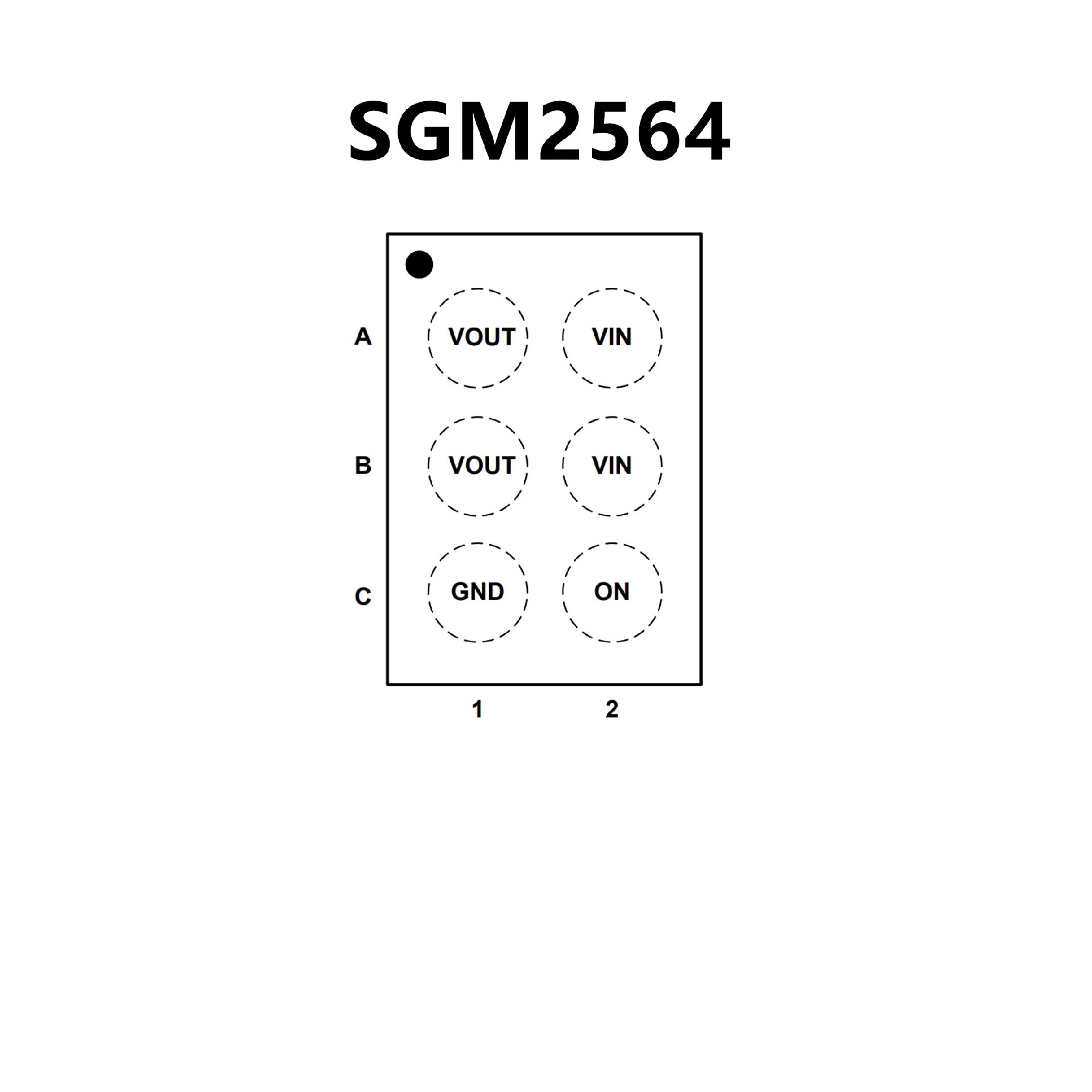

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 0.75 V – 5.5 V Operating Range
? 12 mΩN MOSFET from 3.6 V to 5.5 V
? 13 mΩN MOSFET from 1 V to 3.3 V
? DC Current Up to 3 A
? Output Auto?Discharge
? Active High EN Pin
? WLCSP6 0.9 x 1.4 mm
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHSCompliant

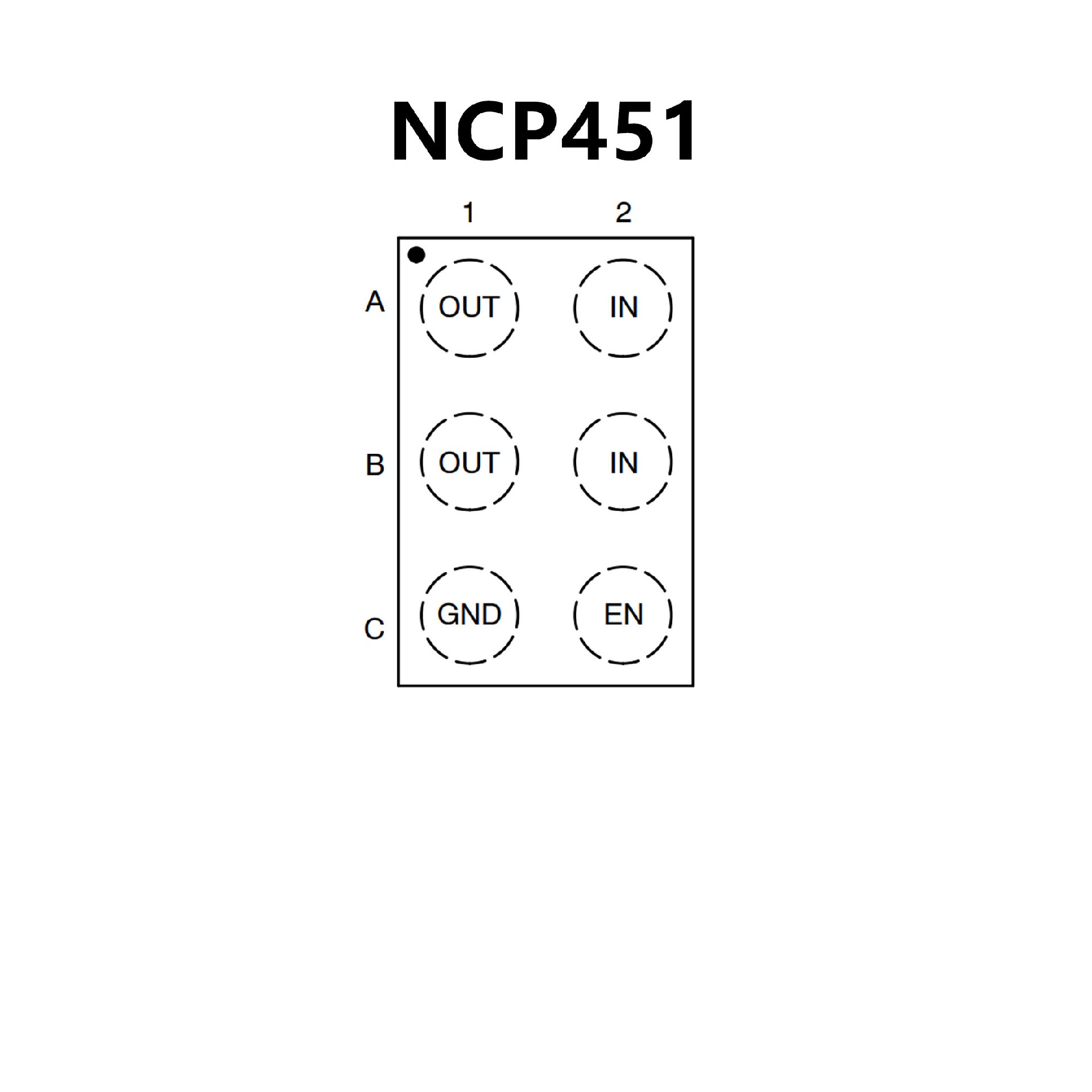

PIN CONFIGUTION
