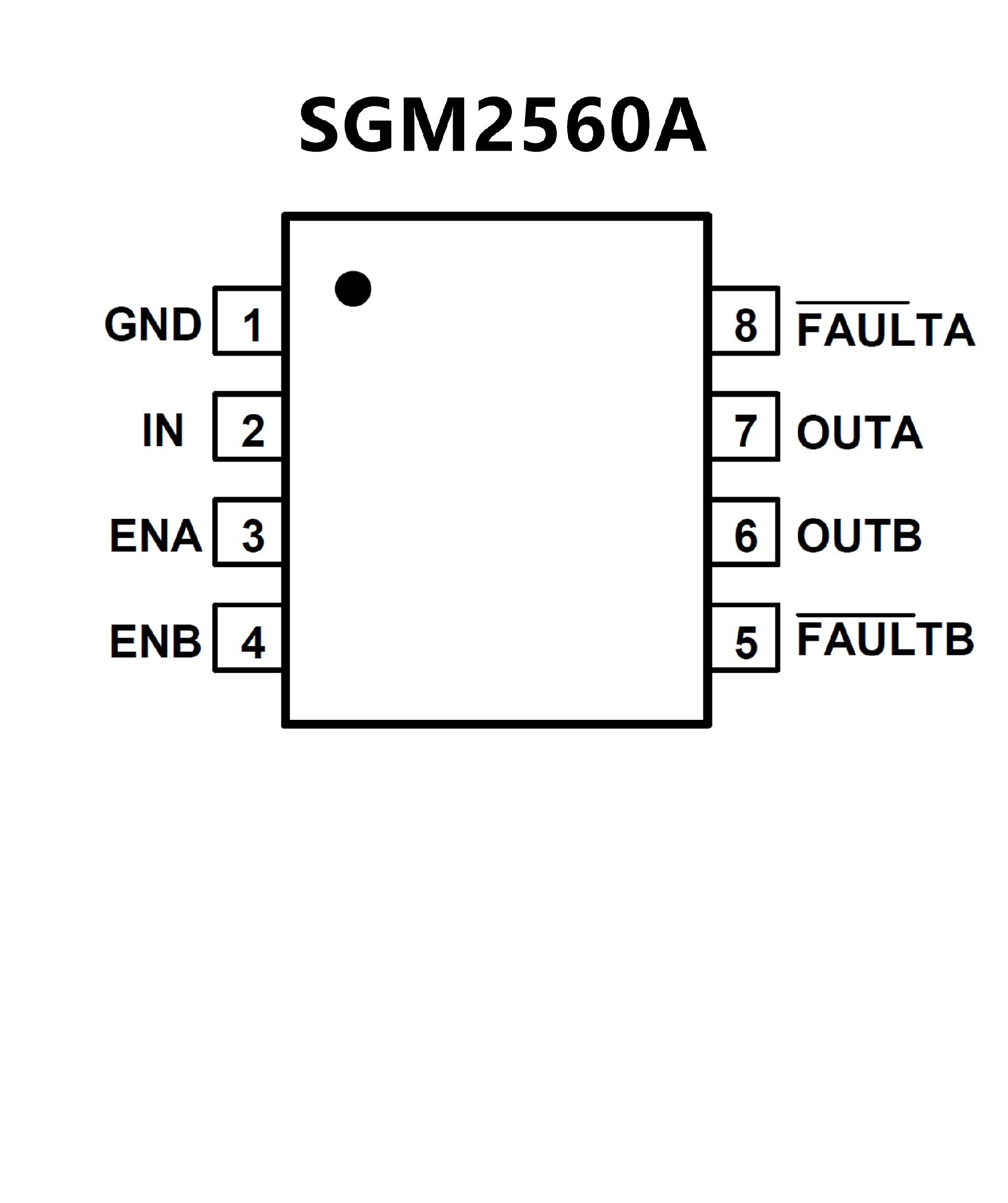

SGM2560AYS8G.pdf? 90mΩ (TYP) High-side MOSFET per Channel
? 1.1A Current Limit
? Input Voltage Range: 2.7V to 5.5V
? Low Quiescent Current: 28μA (Dual-Channel)
? Soft-Start Function
? Short-Circuit Protection with Thermal Shutdown
? Thermally Isolated Channels
? Fault Status Flag with 4ms Filter Eliminates False
Assertions
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current
? 1.8V Logic-Compatible Inputs
? Available in the Green SOIC-8 and TDFN-3×3-8L
Packages

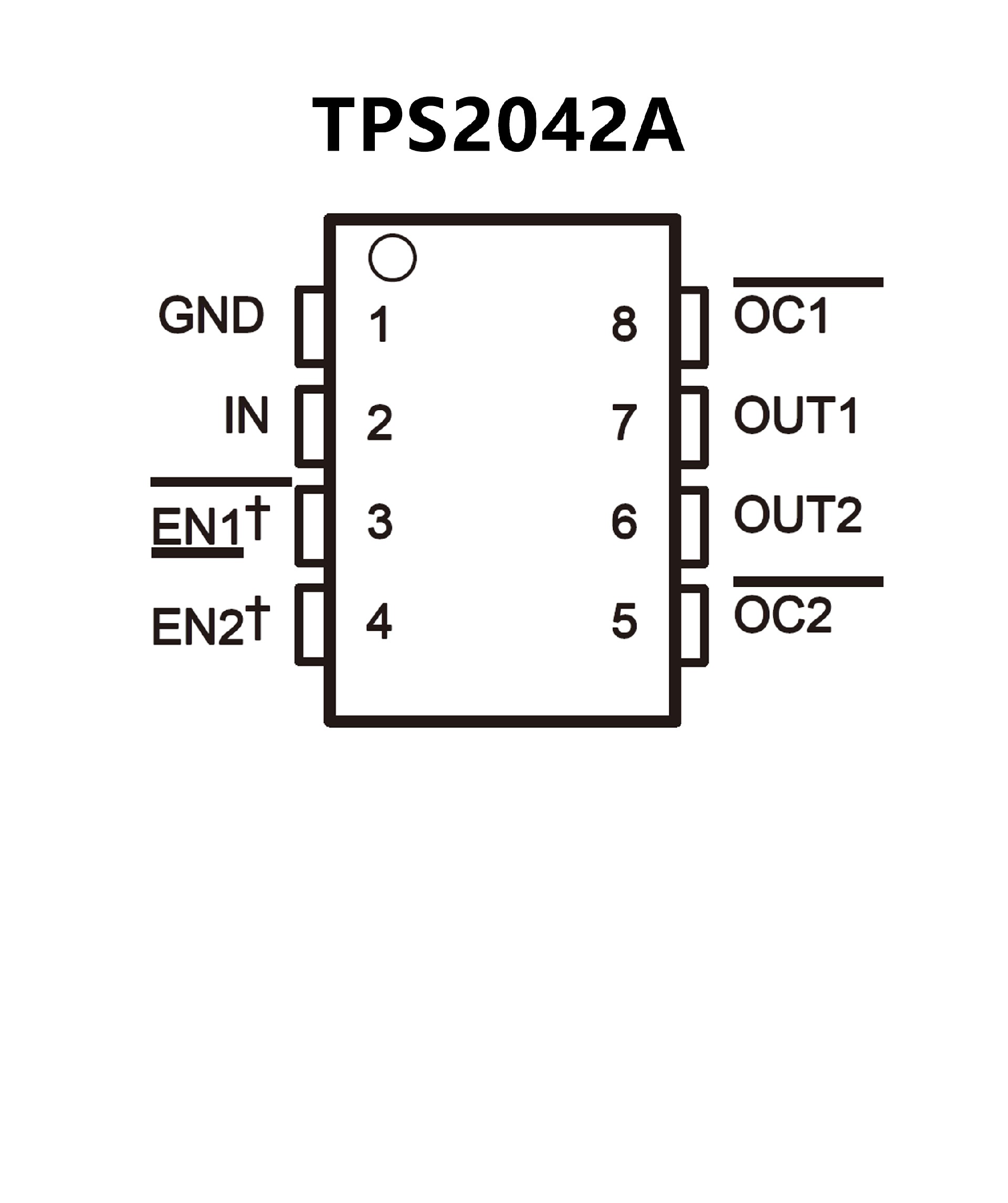

? 80-mW High-Side MOSFET Switch
? 500 mA Continuous Current Per Channel
? Independent Thermal and Short-Circuit
Protection With Overcurrent Logic Output
? Operating Range . . . 2.7 V to 5.5 V
? CMOS- and TTL-Compatible Enable Inputs
? 2.5-ms Typical Rise Time
? Undervoltage Lockout
? 10 mA Maximum Standby Supply Current
for Single and Dual (20 mA for Triple and
Quad)
? Bidirectional Switch
? Ambient Temperature Range, 0°C to 85°C
? ESD Protection
? UL Listed – File No. E169910
