36V, 2μA IQ, Peak 200mA, Low Dropout Voltage Linear Regulator, SGM2243Q Replace RTQ2569.
SGM2243Q
SGM2243Q.pdf
SGM2243Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Operating Input Voltage Range: 2.5V to 40V
? Enable Pin Accept Voltages Higher than the
Supply Voltage and up to 40V
? Fixed Output from 1.8V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Low Quiescent Current: 3.2μA (TYP)
? Low Dropout Voltage:
900mV (TYP) at 300mA, VOUT = 5.0V
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TDFN-3×3-8L Package

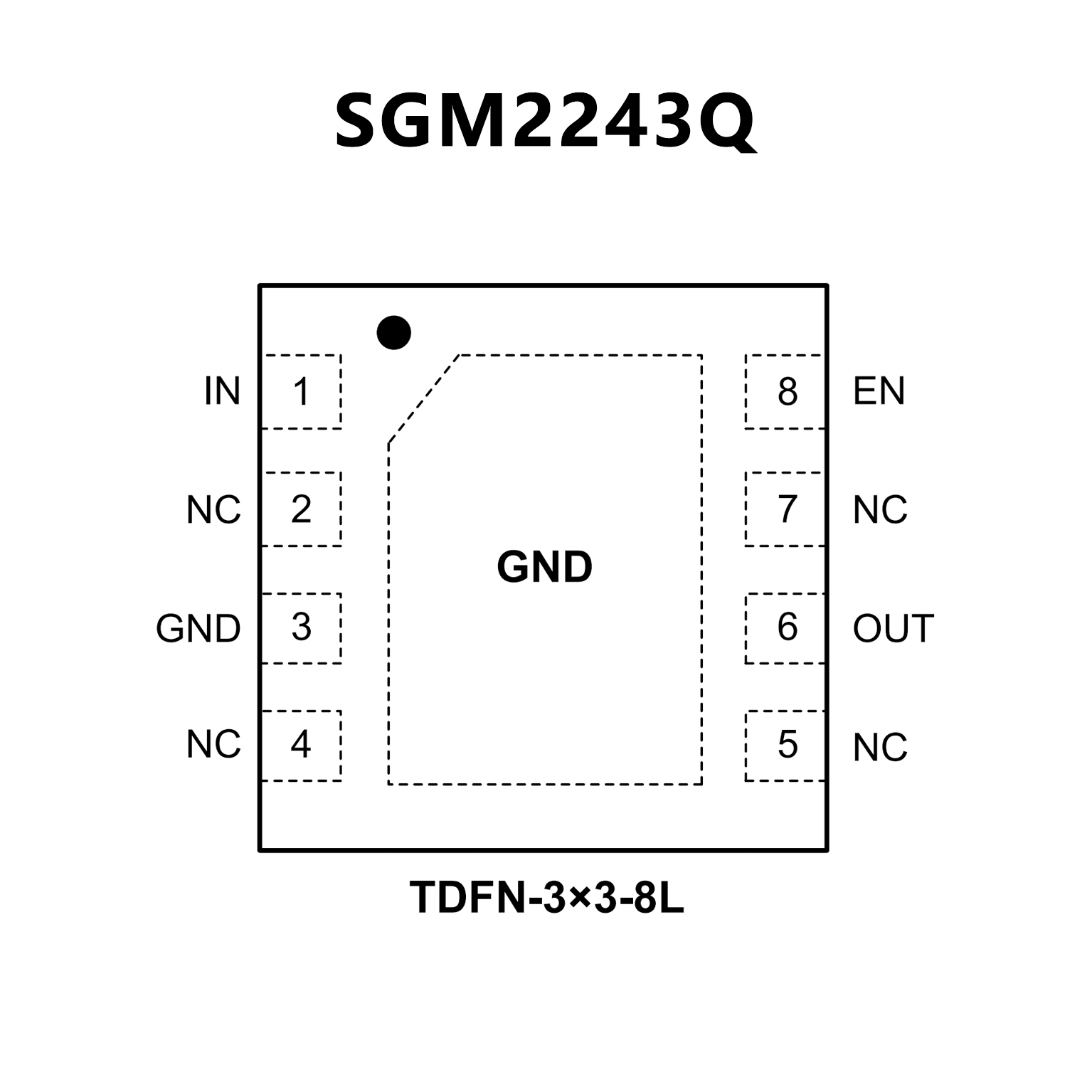

PIN CONFIGUTION
優勢替代
FEATURES
? AEC-Q100 Grade 1 Qualified
? Ultra low Quiescent Current 2?A (typ.)
? ±2% Output Accuracy
? 100mA Continuous Output Current
? Operating Input Voltage : 3.5V to 36V
? Low dropout voltage : 200mV at 10mA
? Fixed Output Voltage : 2.5V to 12V with 0.1V Per Step
? Current Limit Protection
? Over-Temperature Protection
? RoHS Compliant and Halogen Free

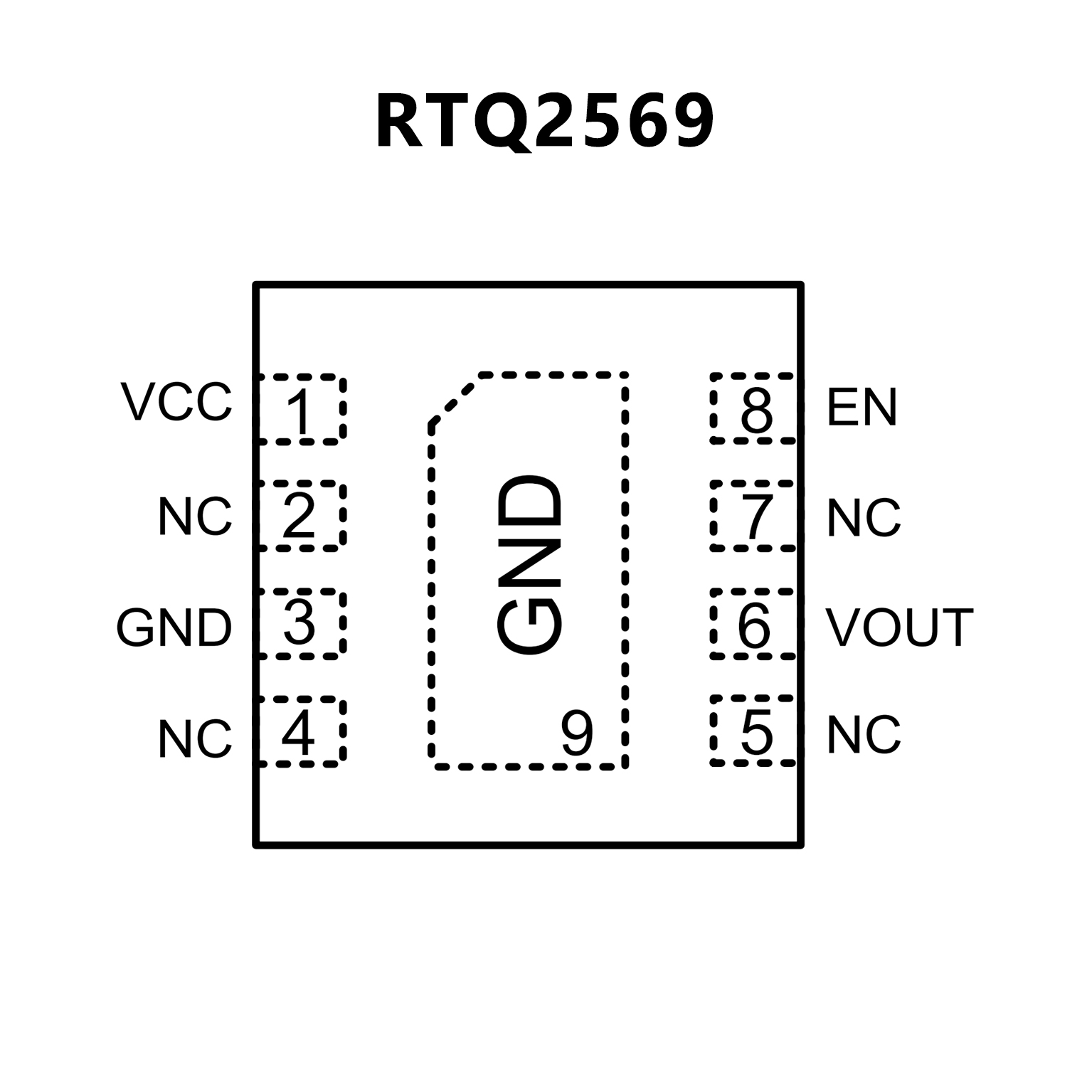

PIN CONFIGUTION
