SGM2241Q.pdf? AEC-Q100 Qualified for Automotive Applications

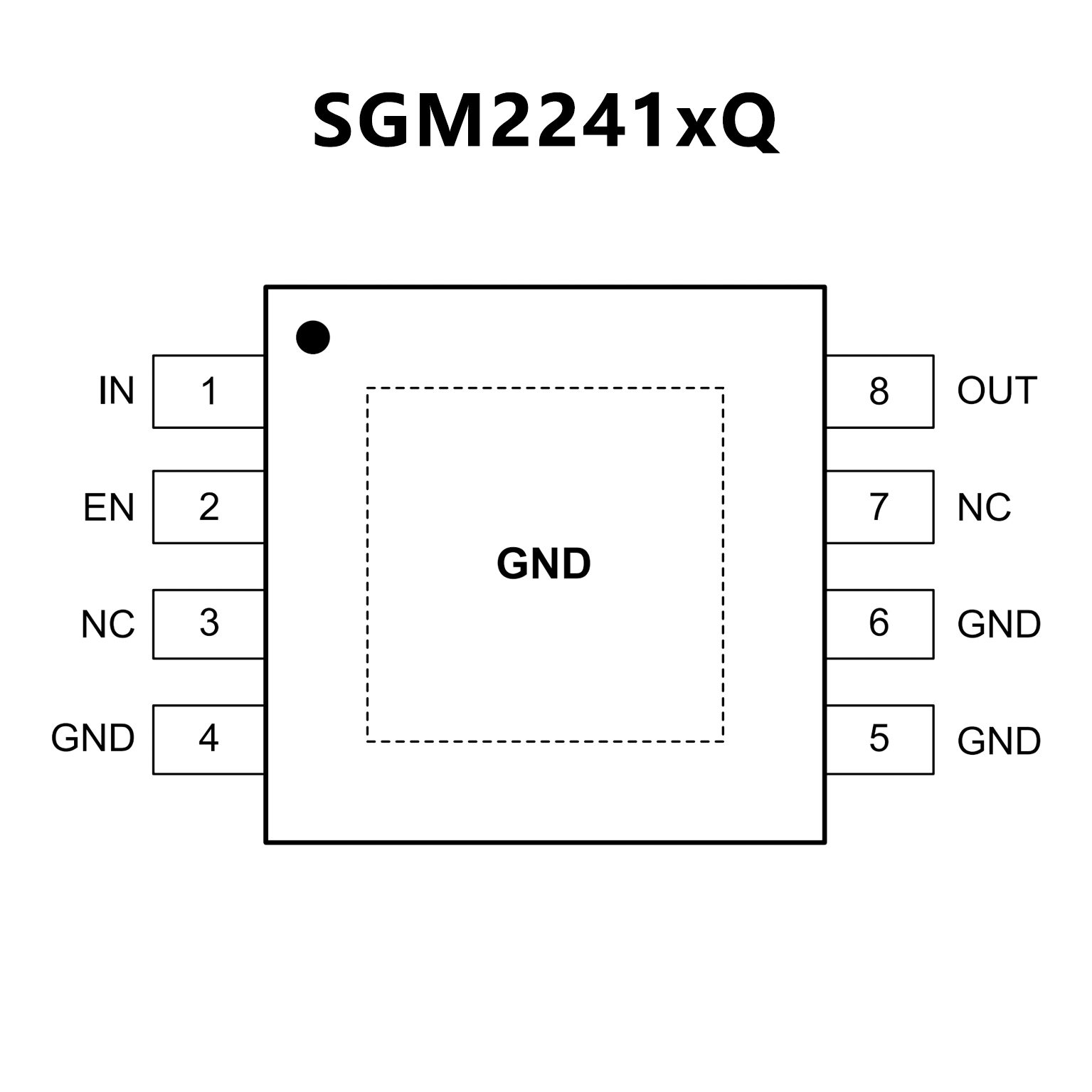

? Available in a Green MSOP-8 (Exposed Pad) Package
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to 125°C, TA
? Device junction temperature range:
–40°C to 150°C
? 3-V to 40-V wide VIN input voltage range with up
to 45-V transient
? Maximum output current: 150 mA
? Low quiescent current IQ:
– 300 nA typical when EN = low(shutdown mode)
– 2.7 μA typical at light loads
– 4.5 μA maximum at light loads
? 1.5% output-voltage accuracy over line, load and
temperature
? Maximum dropout voltage: 540 mV at 150-mA load
current for fixed 5-V output version
? Stable with low-ESR (0.001-Ω to 5-Ω) ceramic
output-stability capacitor (1 μF to 200 μF)
? Fixed 5-V, 3.3-V and 2.5-V output voltage
? Integrated fault protection:
– Thermal shutdown
– Short-circuit and overcurrent protection
? Packages:

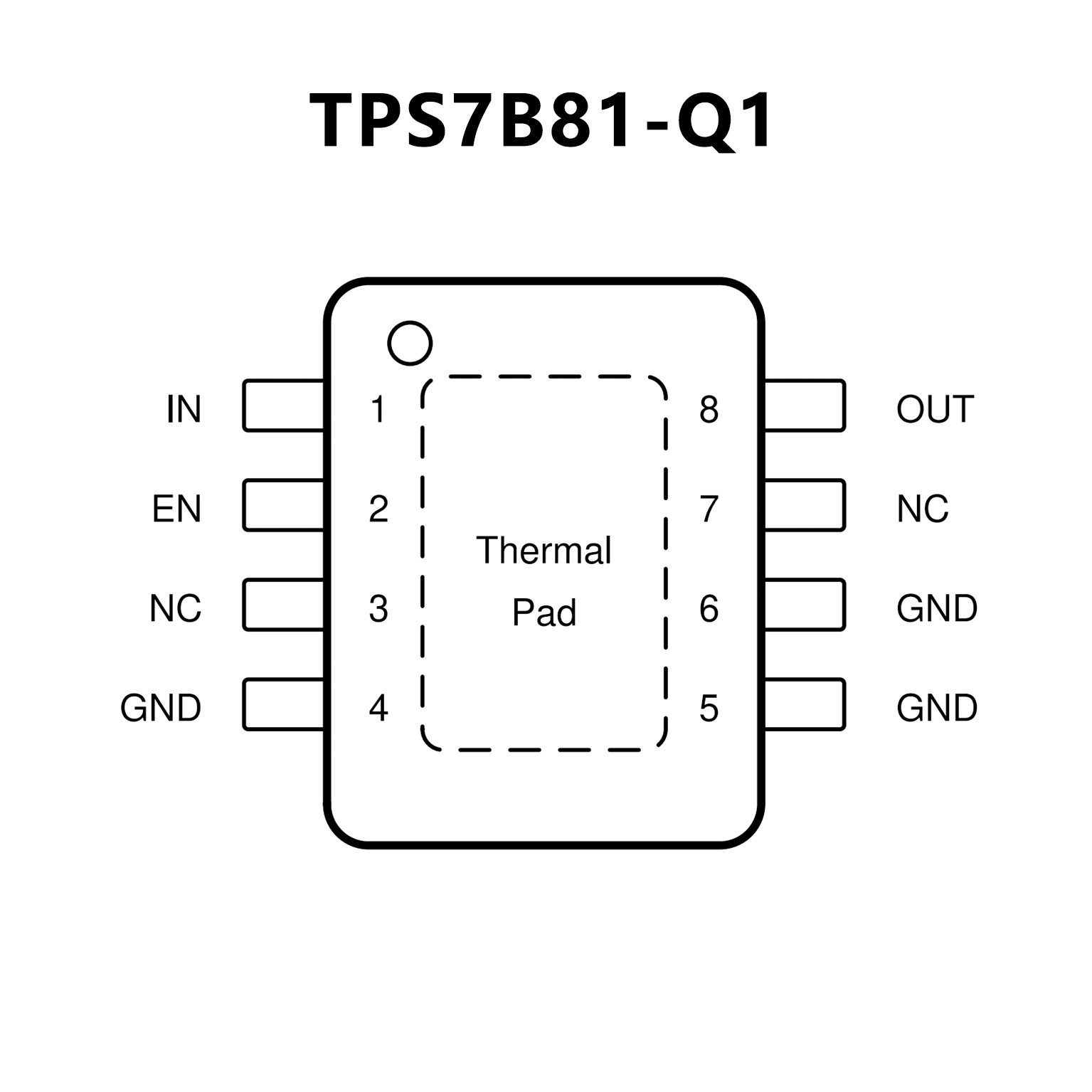

– DGN (8-pin HVSSOP), RθJA = 63.9°C/W
– DRV (6-pin WSON), RθJA = 72.8°C/W
– KVU (5-pin TO-252), RθJA = 38.8°C/W
