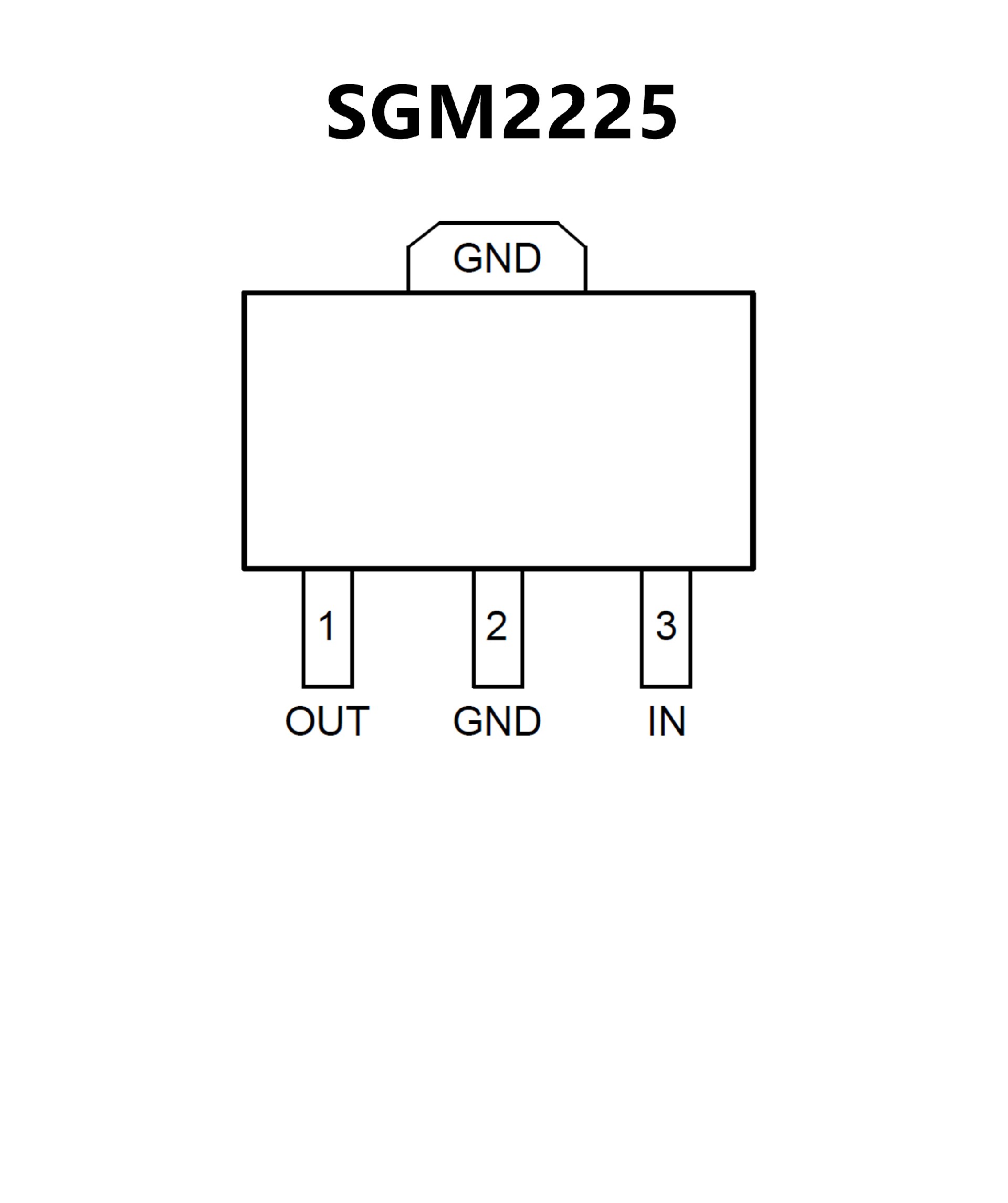

SGM2225-5.0XK3G.pdf? Wide Input Voltage Range: 3.6V to 36V
? Adjustable Output Voltage Range: 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at Full Load
? Extremely Tight Load and Line Regulations
? Fast Load Transient
? Low Output Voltage Temperature Coefficient
? Output Short-Circuit to GND Protection
? Current and Thermal Limiting
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Thermally-Efficient Surface-Mount Package
? Available in Green SOT-223-3, SOT-89-3,
SOIC-8,TDFN-3×3-8L and TO-263-5B Packages

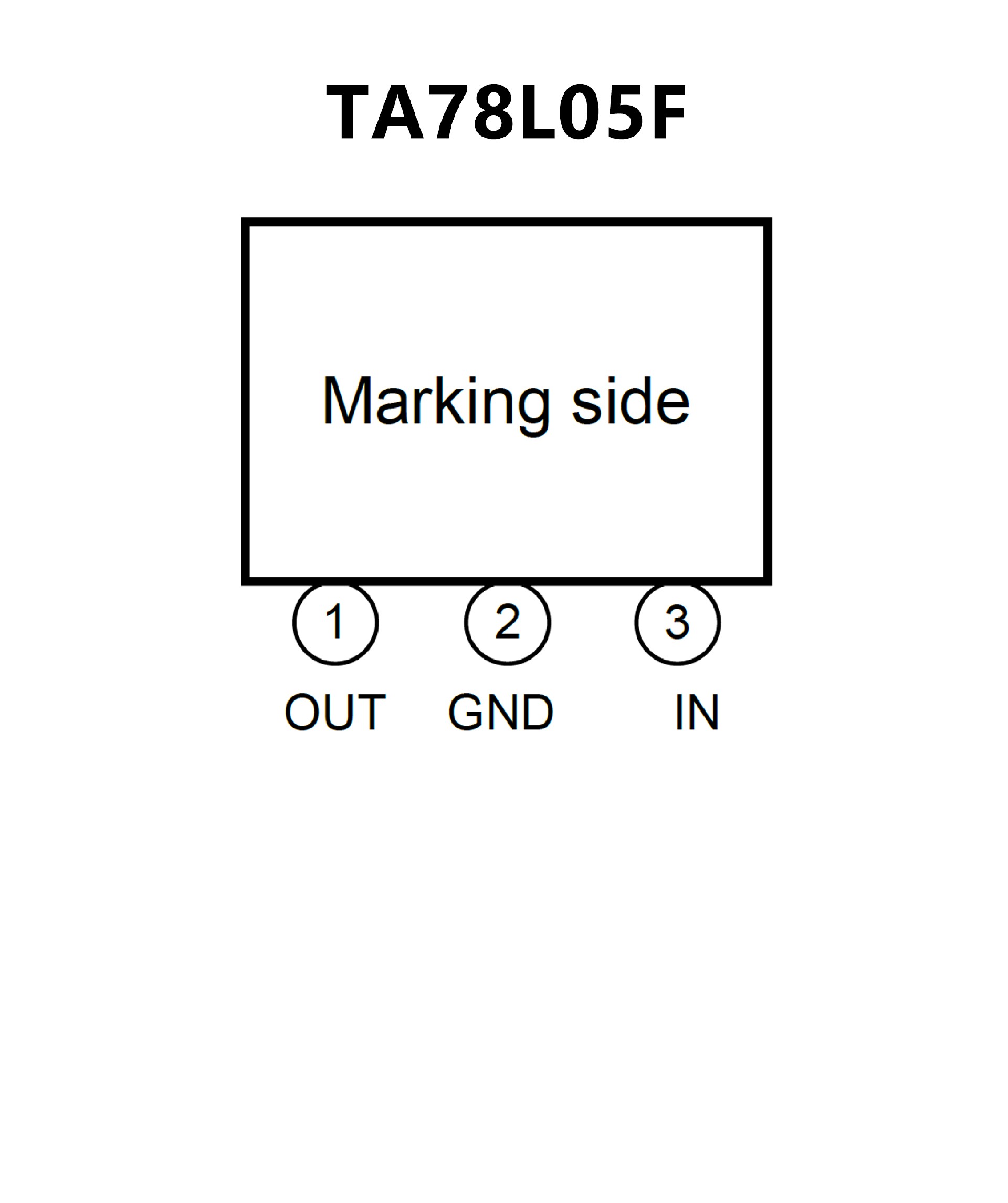

? Best suited to power supply for TTL/CMOS.
? No external parts needed.
? Built-in overheating protection.
? Built-in overcurrent protection.
? Max output current of 150mA. (Tj = 25°C).
? Packaged in PW-mini (SOT-89).
