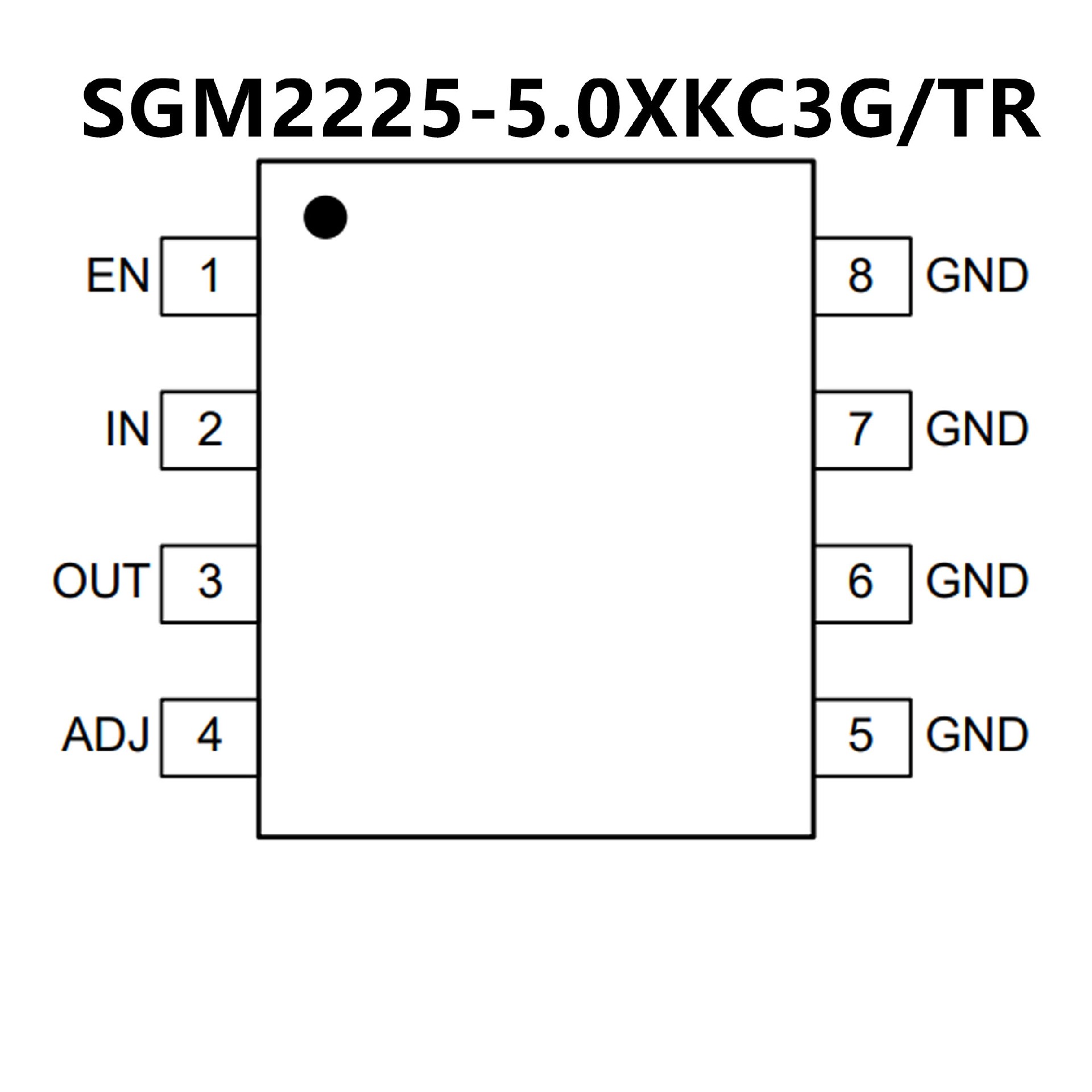

SGM2225-5.0.pdf? Wide Operating Input Voltage Range: 3.6V to 36V
? Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
? Adjustable Output from 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages
? Qualified for Automotive Applications
? Wide Temperature Range: -40 °C to +150 °C
? Wide Operating Input Range: 3.0 V to 42 V
? Low Quiescent Current: 40 μA (Typ.)
? Output Current: 200 mA
? High Output Voltage Accuracy: ±2 %
? Output Voltage: 3.3 V or 5.0 V (Typ.)
? Enable Input (Only W: Includes Enable Input)
? Over Current Protection (OCP)
? Thermal Shutdown Protection (TSD)
? AEC-Q100 Qualified (Note1)
(Note1:Grade1)
