? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

? Ultra-low IQ: 2.0 μA
? Input voltage: 2.4 V to 18 V
? Output voltage options available:
Fixed: 1.25 V to 5.5 V
Adjustable: 1.24 V to 17.75 V
? 2% accuracy over temperature
? Low dropout: 250 mV (max) at 200 mA
? Active overshoot pulldown protection
? Thermal shutdown and overcurrent protection
? Operating junction temperature: –40°C to +125°C
? Stable with 1-μF output capacitors

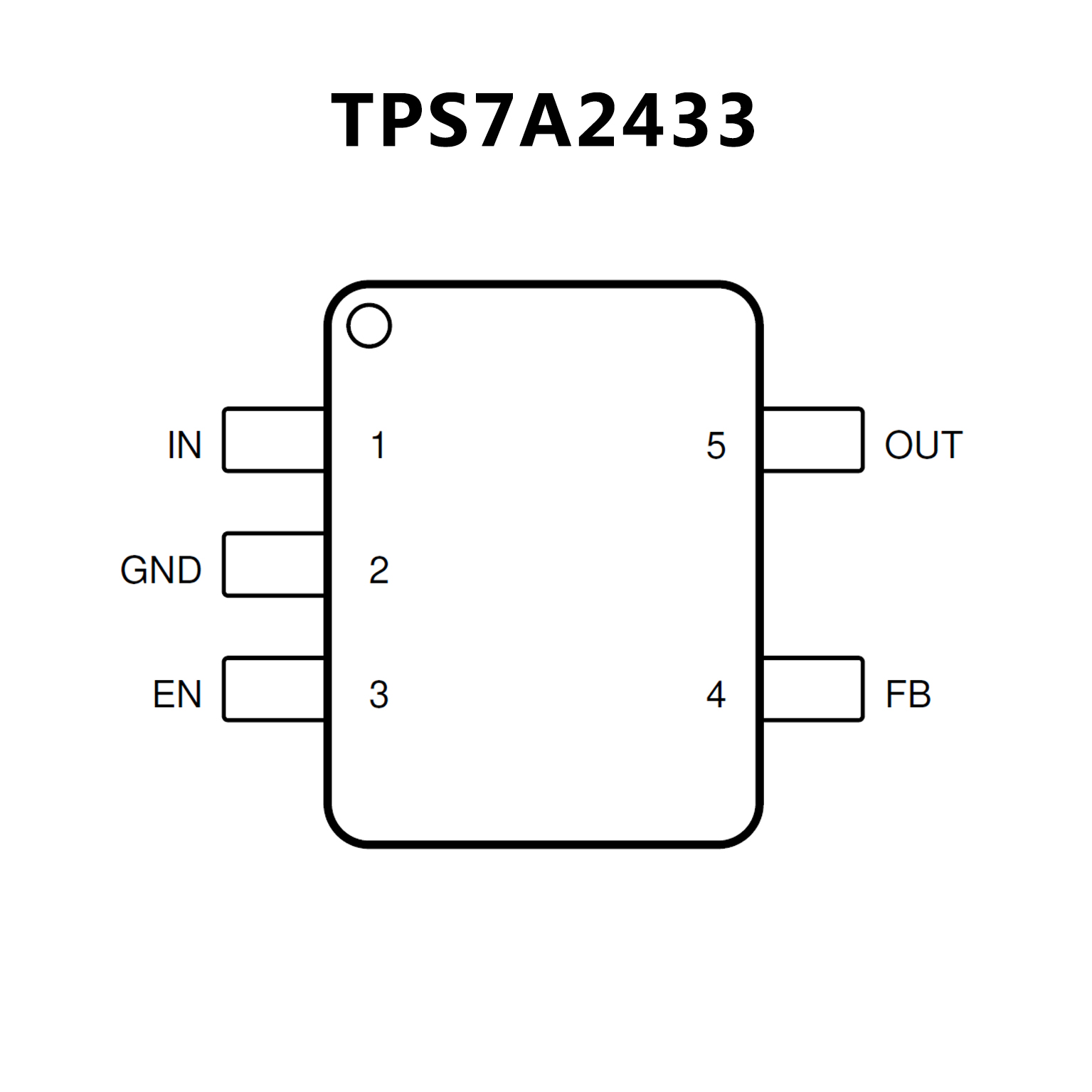

? Package: 5-pin SOT-23
