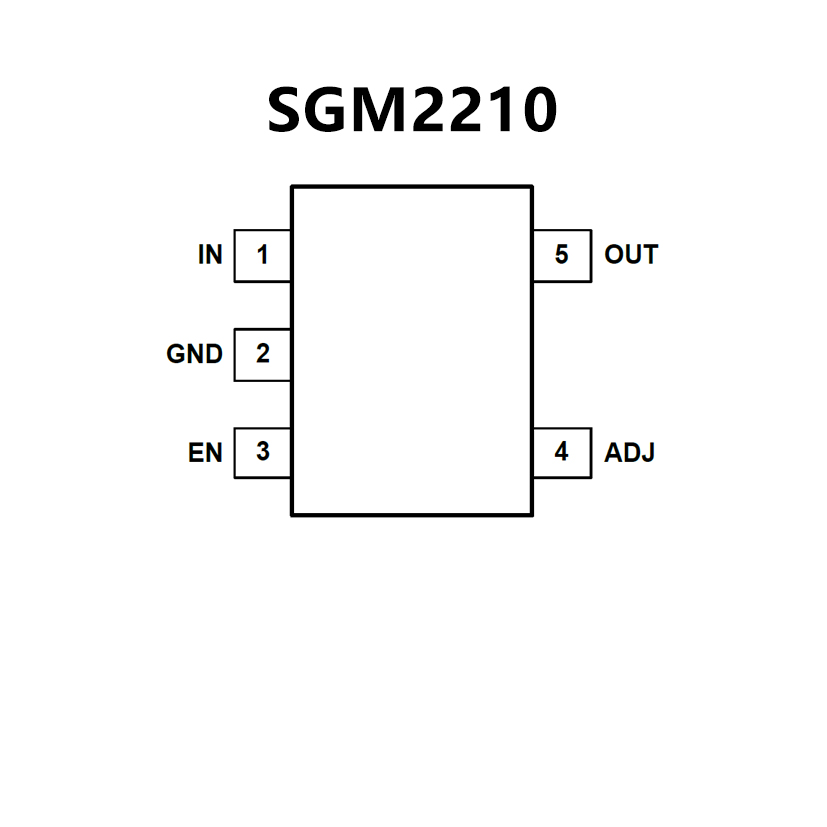

SGM2210-5.0XN5G.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

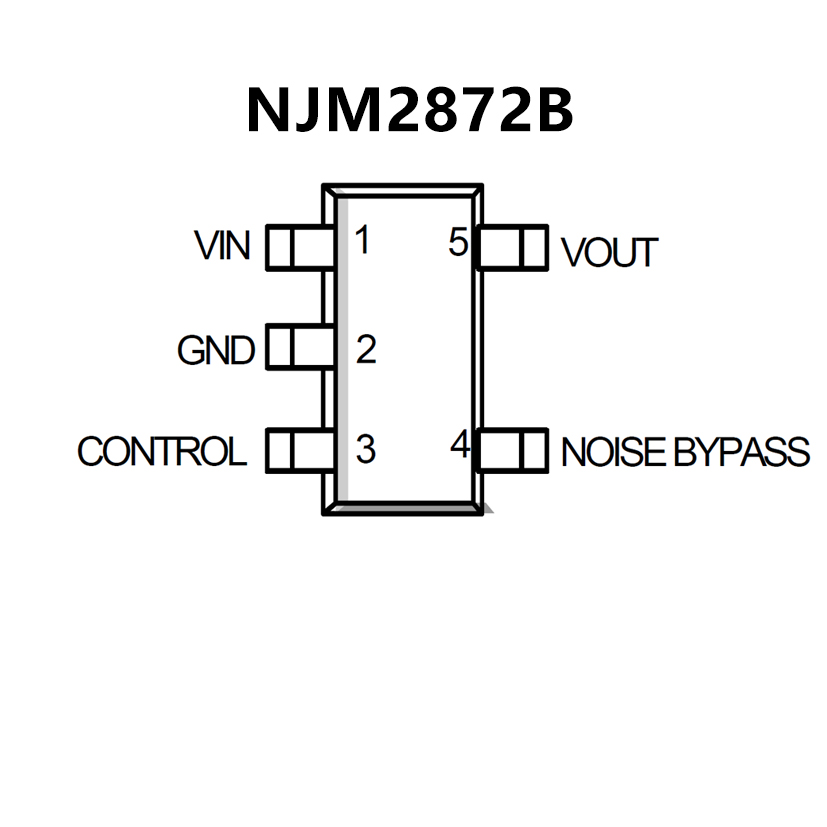

? High Ripple Rejection 75dB typ. (f=1kHz Vo=3V version)
? Output Noise Voltage Vno=30μVrms typ. (Cp=0.01μF)
? Output capacitor with 1.0uF ceramic
capacitor(Vo≥2.7V: Version)
? Output Current Io(max.)=150mA
? High Precision Output Vo ±1.0%
? Low Dropout Voltage 0.10V typ. (Io=60mA)
? Input Voltage Range +2.3 ～ +14V(Vo≤2.0V version)
? ON/OFF Control (Active High)
? Internal Short Circuit Current Limit
? Internal Thermal Overload Protection
? Bipolar Technology
? Package Outline SOT-23-5 (MTP5)
