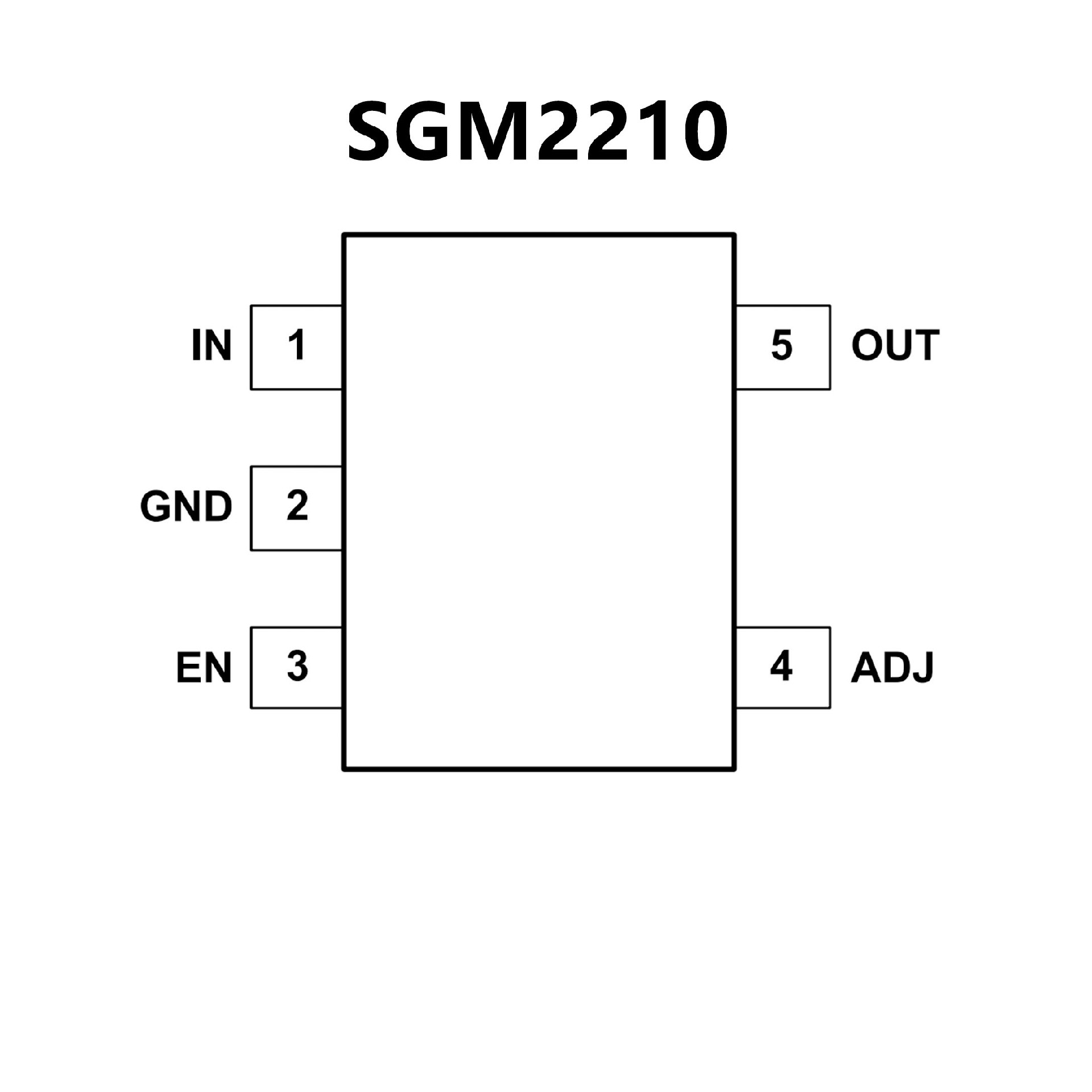

SGM2210.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

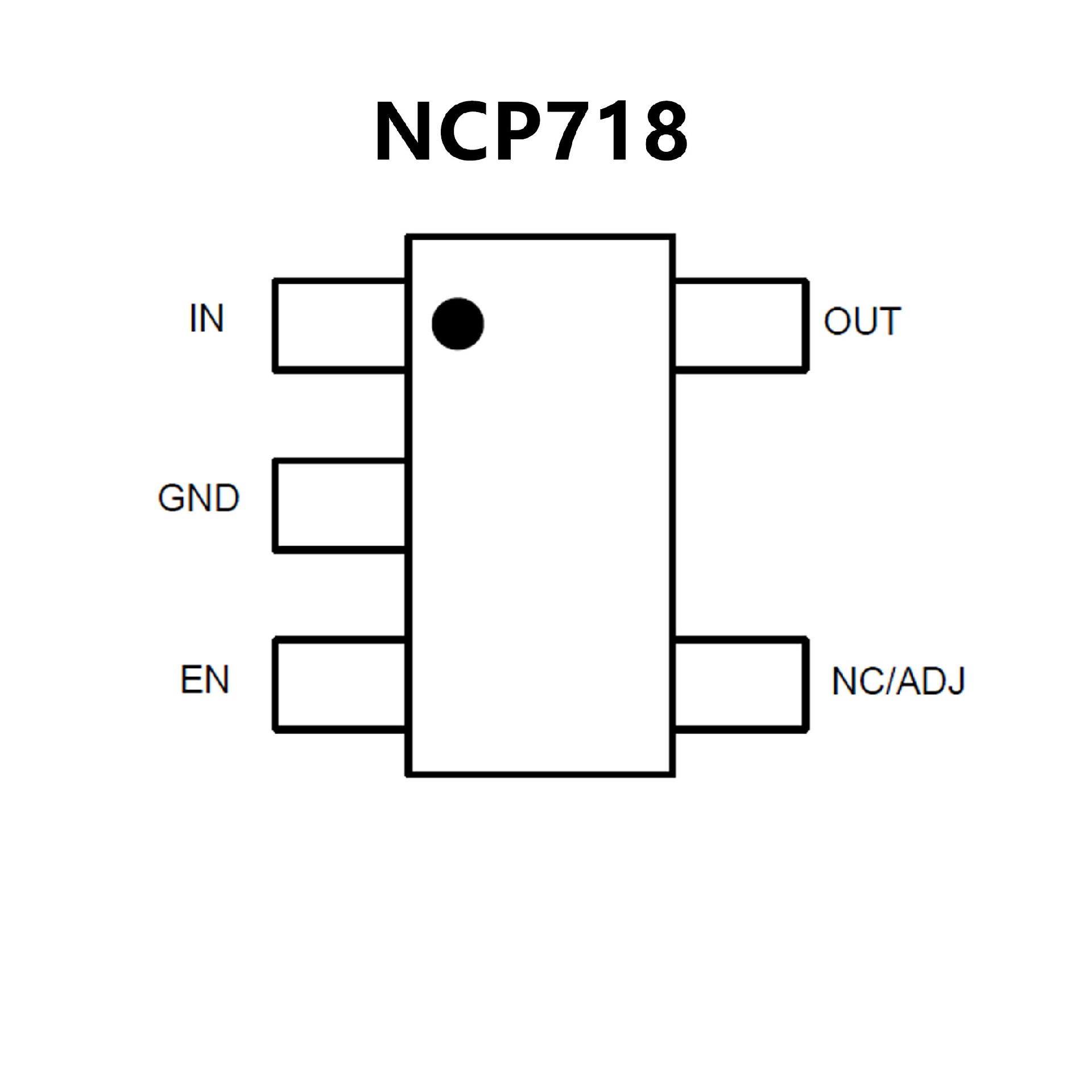

? Operating Input Voltage Range: 2.5 V to 24 V
? Fixed Voltage Options Available: 1.2 V to 5 V (upon request)
? Adjustable Voltage Option from 1.2 V to 5 V
? Ultra?Low Quiescent Current: typ.
4μA over Temperature
? ±2% Accuracy Over Full Load, Line
and Temperature Variations
? PSRR: 60 dB at 1 kHz
? Noise: typ. 36μVRMS from 100 Hz to 100 kHz
? Stable with Small 1μF Ceramic Capacitor
? Soft?start to Reduce Inrush Current and Overshoots
? Thermal Shutdown and Current Limit Protection
? SOA Limiting for High Vin / High Iout – Static / Dynamic
? Active Discharge Option Available (upon request)
? Available in TSOT?23?5 and WDFN6 2x2 mm Packages
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant
