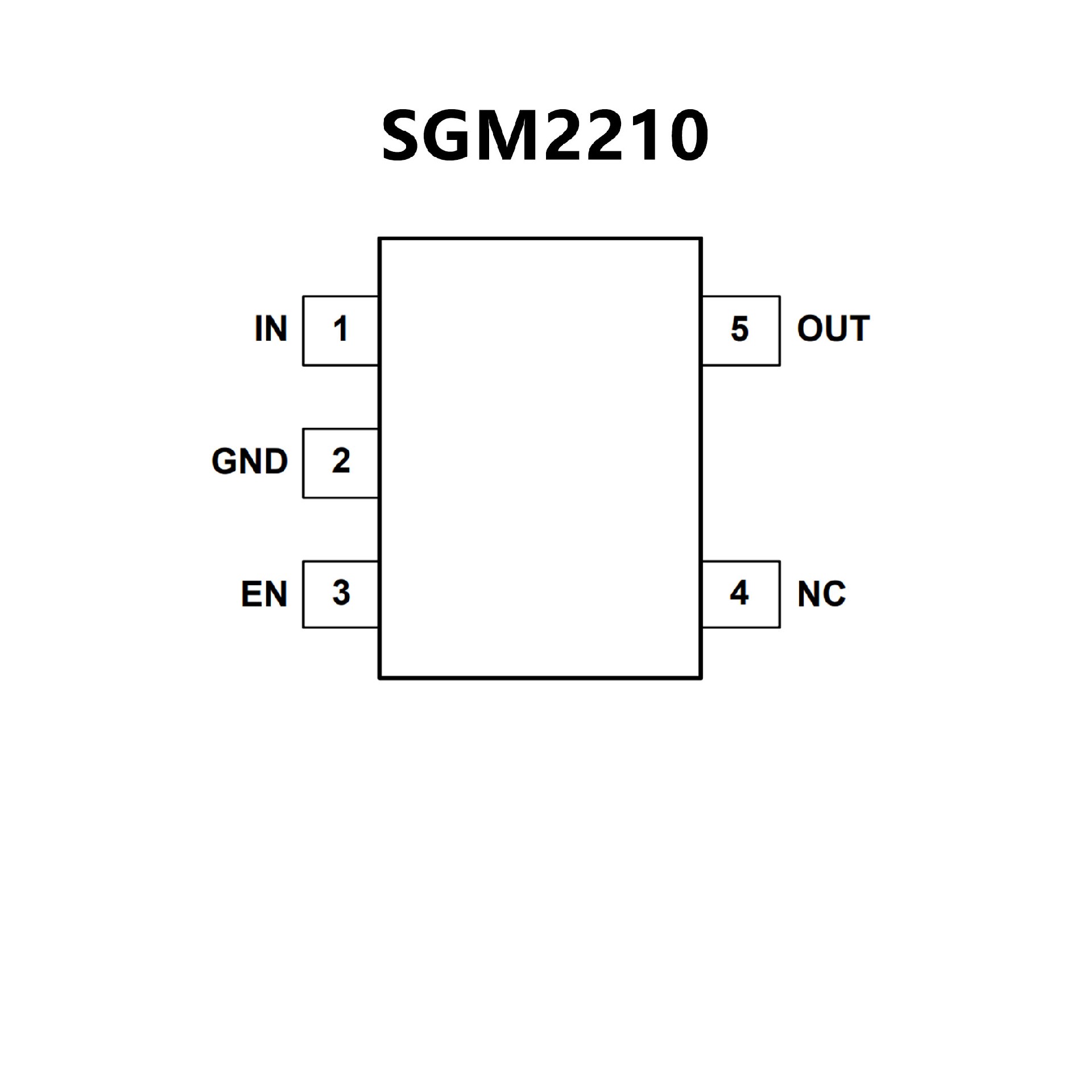

SGM2210.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

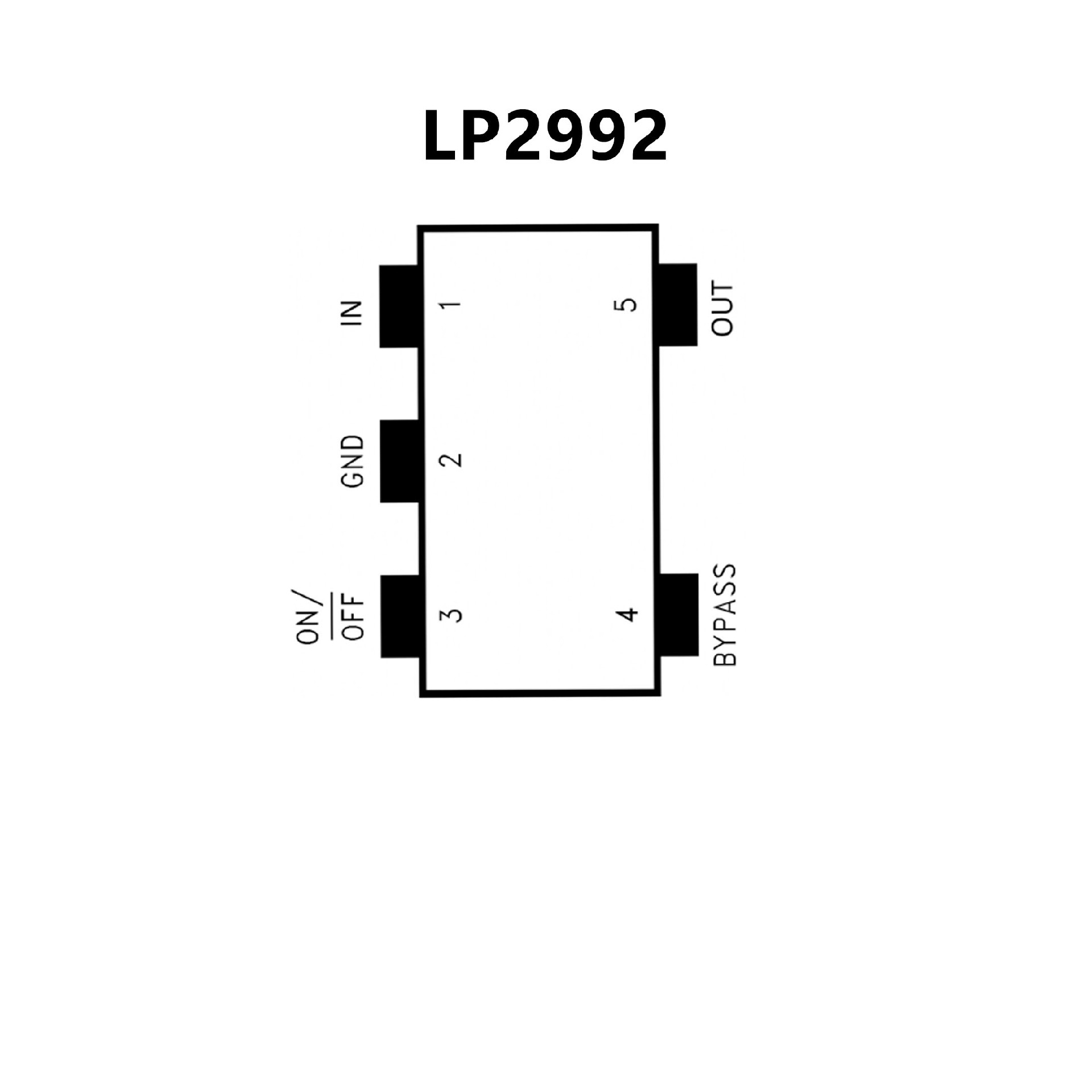

? Input Voltage Range: 2.2 V to 16 V
? Output Voltage Range: 1.5 V to 5 V
? Wide Supply Voltage Range (16-V Maximum)
? Output Voltage Accuracy 1% (A Grade)
? Ultra-Low-Dropout Voltage
? Specified 250-mA Output Current
? Stable With Low-ESR Output Capacitor
? < 1-μA Quiescent Current When Shut Down
? Low Ground Pin Current at All Loads
? High Peak Current Capability
? Low ZOUT: 0.3-? Typical (10 Hz to 1 MHz)
? Overtemperature and Overcurrent Protection
? ?40°C to +125°C Junction Temperature Range
? Smallest Possible Size (SOT-23, WSON
Package)
? Requires Minimum External Components
? Custom Voltages Available
