800mA, High Voltage, Low Noise and Low Dropout Linear Regulator, SGM2205 Replace LM2940.
SGM2205
SGM2205.pdf
SGM2205.pdfFEATURES
? Wide Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.8V, 2.5V, 3.0V, 3.3V,
3.6V, 4.2V,5.0V and 12V
? Adjustable Output from 1.8V to 12V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? SOIC-8,TDFN-3×3-8L and TO-263-5B Packages

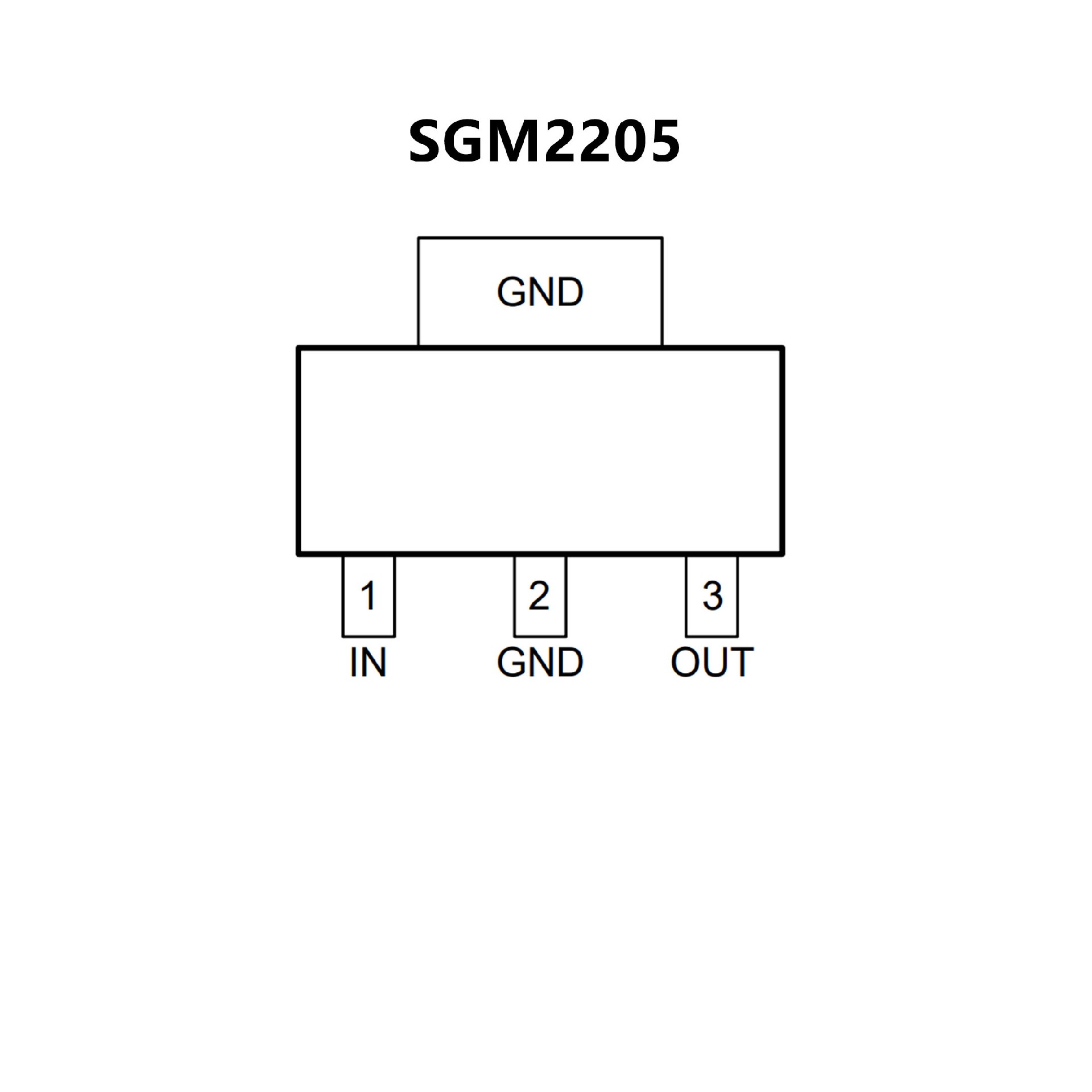

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 500mV Typically Dropout at 1A
? Output Current in Excess of 1A
? Low Quiescent Current
? Reversed-Battery Protection
? Current Limit and Thermal Shutdown.
? Mirror Image Insertion Protection

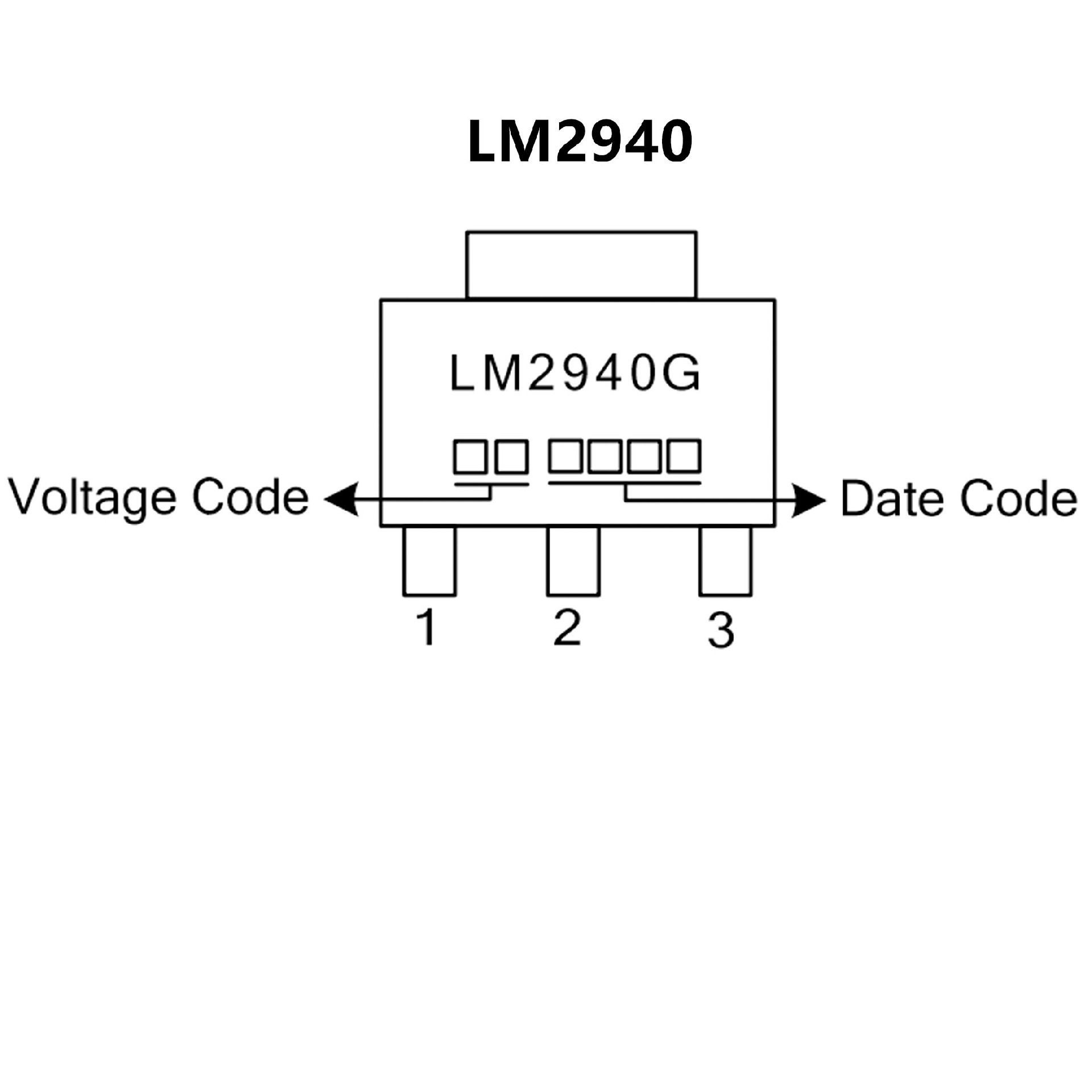

PIN CONFIGUTION
