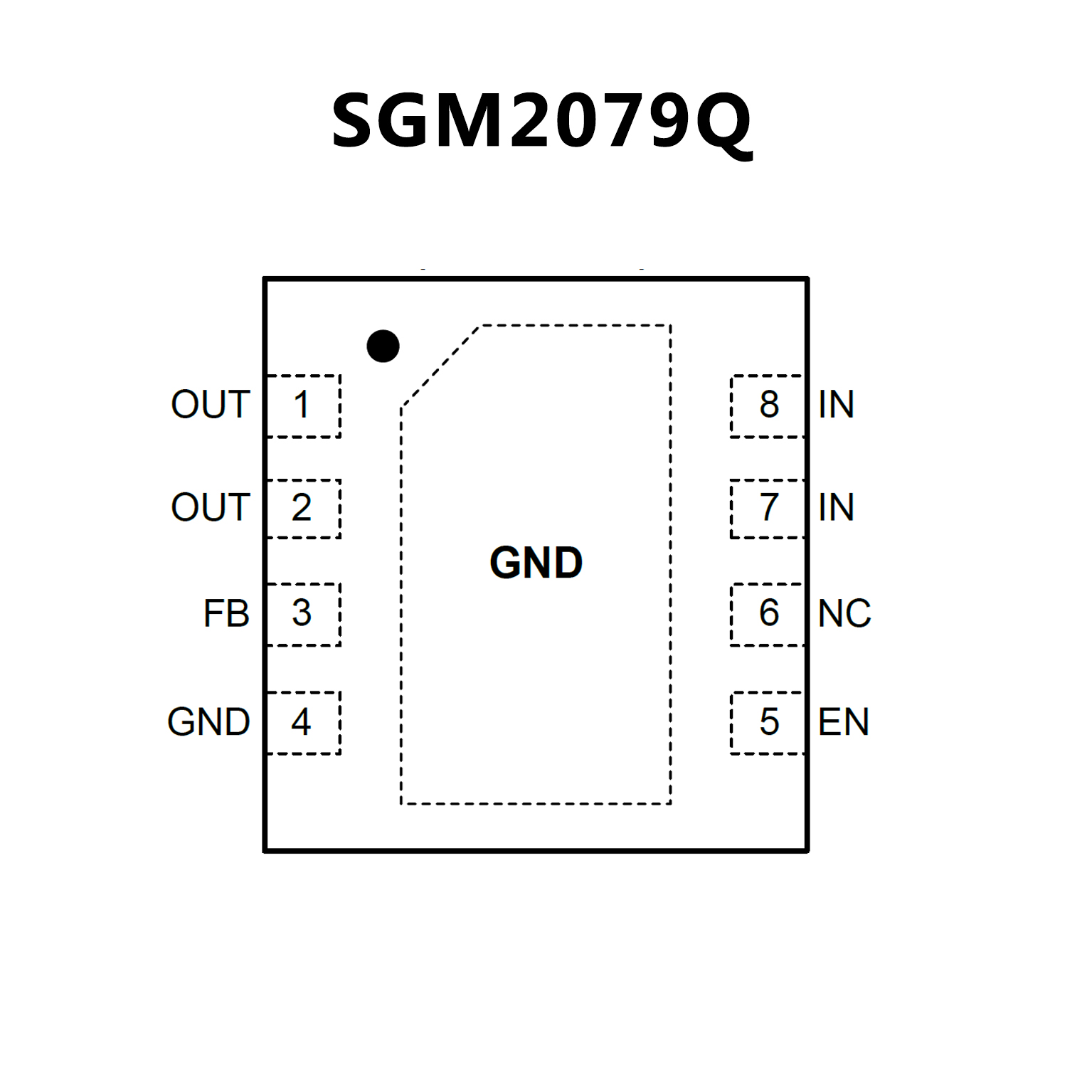

SGM2079Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Operating Input Voltage: 2.2V to 5.5V
? Adjustable Output Voltage: 0.8V to 5.0V
? Low Dropout Voltage: 140mV (TYP) at 1A
? Low Noise:
13μVRMS (TYP) at VOUT(NOM) = 1.1V (10Hz to 100kHz)
? Power Supply Rejection Ratio at VOUT(NOM) = 1.1V:
74dB (TYP) at 1kHz
66dB (TYP) at 10kHz
48dB (TYP) at 1MHz
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TDFN-3×3-8JL Package
? AEC-Q100 Grade 1 Qualified
? Very Low Dropout : 170mV Typical at 1A
? Ultra High PSRR : 63dB @ 1kHz, 38dB @ 1MHz
? Input Voltage Range : 2.2V to 6V
? Adjustable Output Voltage : 0.8V to 5.5V
? ?40°C to 125°C Operating Junction Temperature Range
? Excellent Noise Immunity
? Fast Response Over Load and Line Transient
? Stable with a 4.7μμμμμF Output Ceramic Capacitor
? Accurate Output Voltage 3% Over Load, Line, Process, and Temperature Variations
? Enable Control
? Over-Current Protection
? Over-Temperature Protection
