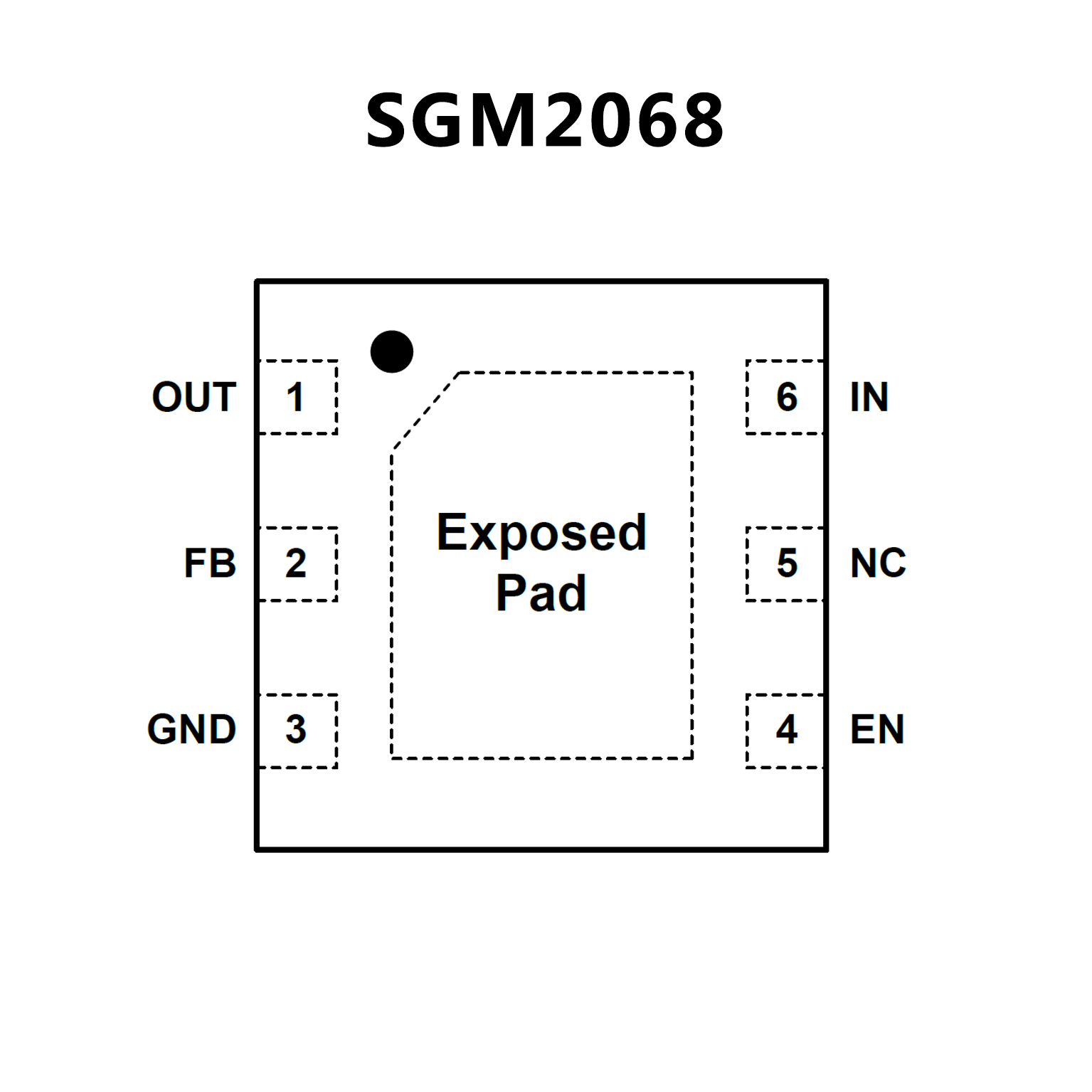

SGM2068.pdf? Operating Input Voltage Range: 1.5V to 5.5V
? Fixed Output from 0.55V to 4.2V
? Adjustable Output from 0.55V to 5.0V
? 500mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 85μA (TYP)
? Low Dropout Voltage:
70mV (TYP) at 500mA, VOUT = 3.3V
? Low Noise: 16μVRMS (TYP)
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? UVLO with Hysteresis
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5 and TDFN-2×2-6AL Packages

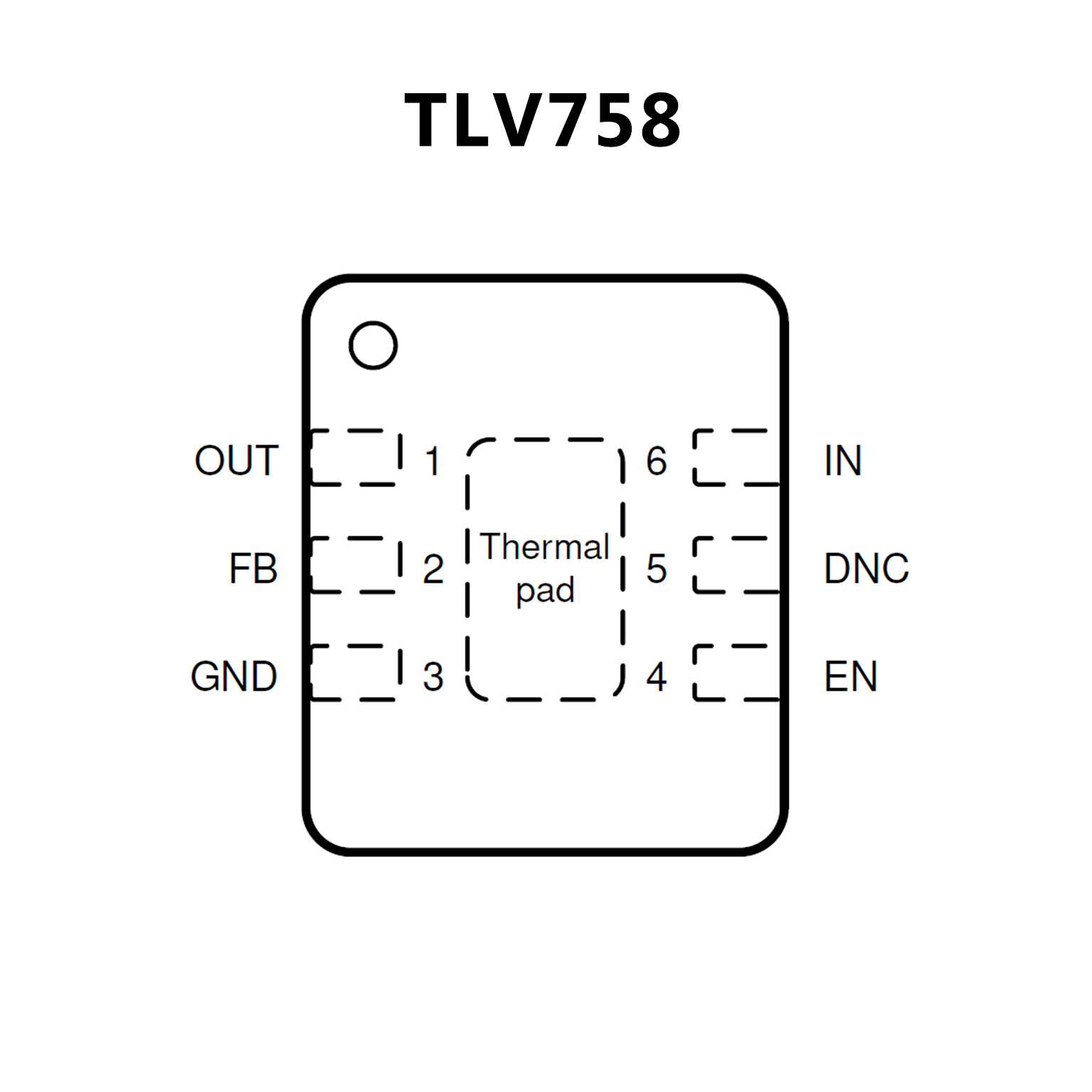

? Input voltage range: 1.5 V to 6.0 V
? Adjustable output voltage:
0.55 V to 5.5 V
? Low dropout:
130 mV (max) at 500 mA (3.3 VOUT)
? High output accuracy: 0.7% (typical) and 1%(maximum over temperature)
? IQ: 25 μA (typical)
? Built-in soft-start with monotonic VOUT rise
? Packages:
2-mm × 2-mm WSON-6 (DRV)
SOT23-5 (DBV)
? Active output discharge
