SGM2061.pdf? Operating Input Voltage Range: 1.9V to 5.5V
? Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V
? Ultra-Low Noise: 10μVRMS (TYP)
? Ultra-Low Quiescent Current: 15μA (TYP)
? Standby Current: 0.03μA (TYP)
? High PSRR: 98dB (TYP) at 1kHz
? Low Dropout Voltage:
70mV (TYP) at 450mA when VOUT = 2.8V
? Output Short-Circuit Protection
? Over-Temperature Protection
? Stable with 1μF Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range

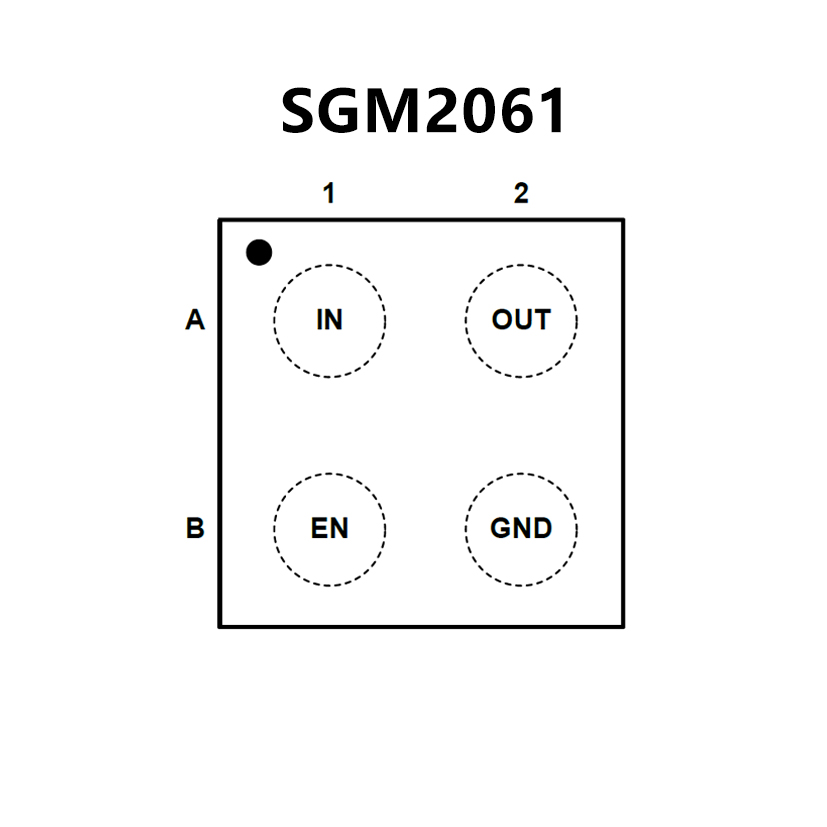

? Available in an Ultra-Thin Green
WLCSP-0.64×0.64-4B-A Package
? Operating Input Voltage Range: 1.1 V to 5.5 V
? Available in Fixed Voltage Option: 0.6 V to 4.0 V
? ±2% Accuracy Over Load/Temperature
? Ultra Low Quiescent Current Typ. 20 A
? Standby Current: Typ. 0.1 A
? Very Low Dropout: 70 mV for 1.05 V @ 100 mA
? High PSRR: Typ. 95 dB at 20 mA, f = 1 kHz
? Ultra Low Noise: 8.8 VRMS
? Stable with a 1 F Small Case Size Ceramic Capacitors
? Available in ?WLCSP4 0.64mm x 0.64mm x 0.33mm
? Case 567VSXDFN4 1mm x 1mm x 0.4mm ? Case 711AJ
? These Devices are Pb?Free, Halogen Free/BFR Free
and are RoHS Compliant
