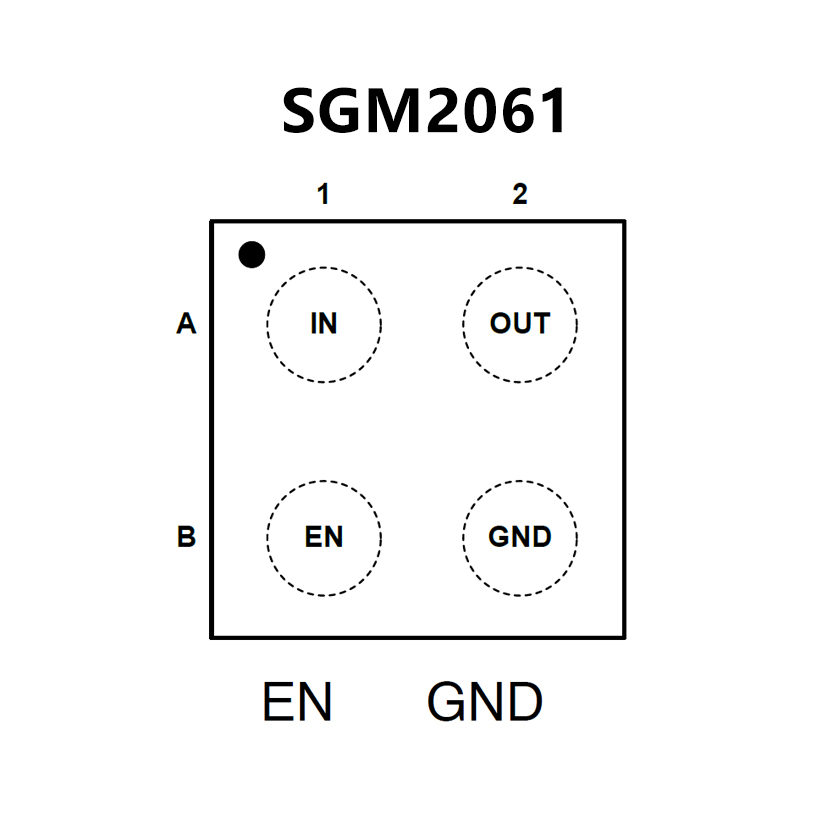

SGM2061.pdf? Operating Input Voltage Range: 1.9V to 5.5V
? Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V
? Ultra-Low Noise: 10μVRMS (TYP)
? Ultra-Low Quiescent Current: 15μA (TYP)
? Standby Current: 0.03μA (TYP)
? High PSRR: 98dB (TYP) at 1kHz
? Low Dropout Voltage:
70mV (TYP) at 450mA when VOUT = 2.8V
? Output Short-Circuit Protection
? Over-Temperature Protection
? Stable with 1μF Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in an Ultra-Thin Green
WLCSP-0.64×0.64-4B-A Package
? No Noise Bypass Capacitor Required
? Remote Output Capacitor Placement

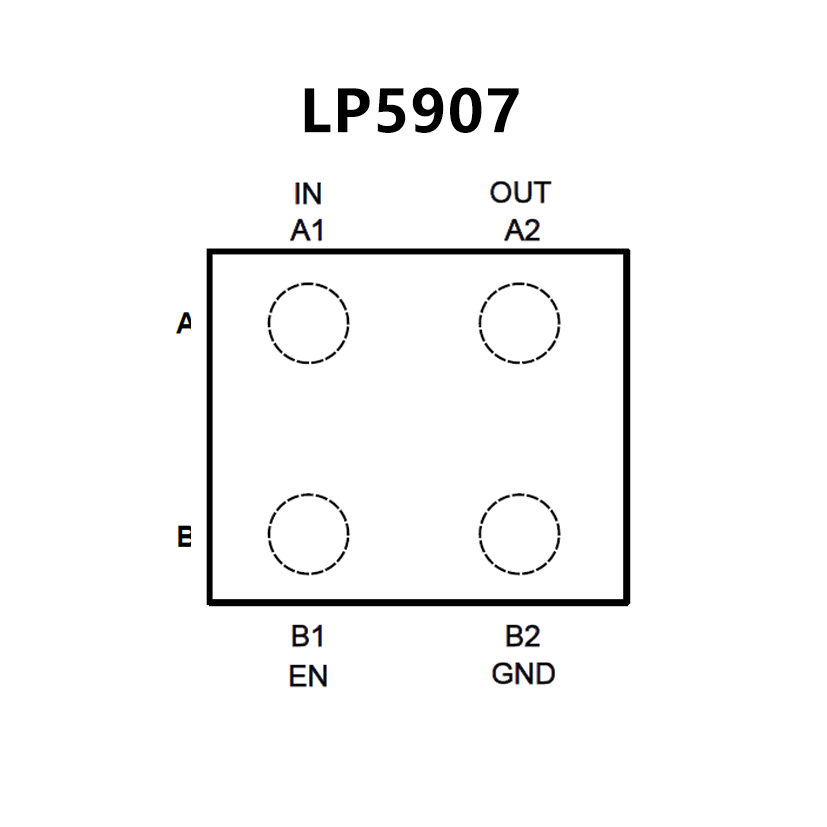

? Input voltage range 2.2V to 5.5V
? Output voltage range 1.2V to 4.5V
? Output current 250 mA
? PSRR 82 dB at 1kHz
? Output voltage tolerance ± 2%
? Virtually zero IQ (disabled) <1μA
? Very low IQ (enabled) 12 μA
? Startup time 80 μs
? Low dropout 120 mV typ
