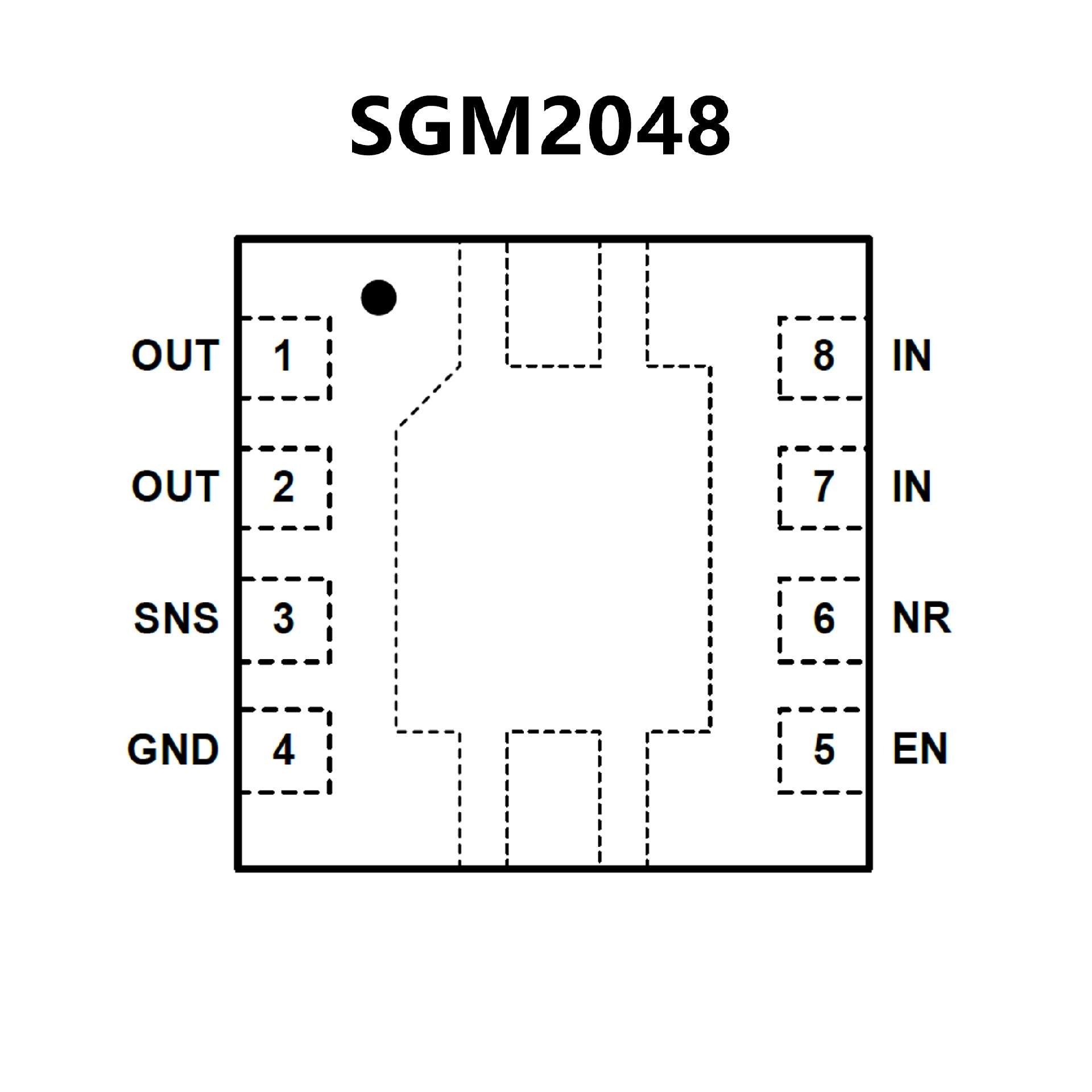

SGM2048-ADJ.pdf? Operating Input Voltage Range: 2.2V to 7V
? Fixed Outputs of 1.2V, 1.8V, 2.8V, 3.0V, 3.3V, 5.0V
? Adjustable Output from 0.8V to 6V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 150mV (TYP) at 1A
? Low Noise: 30μVRMS (TYP)
? Power Supply Rejection Ratio at VOUT = 3.3V:
75dB at 1kHz
65dB at 100kHz
55dB at 1MHz
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TDFN-3×3-8CL Package

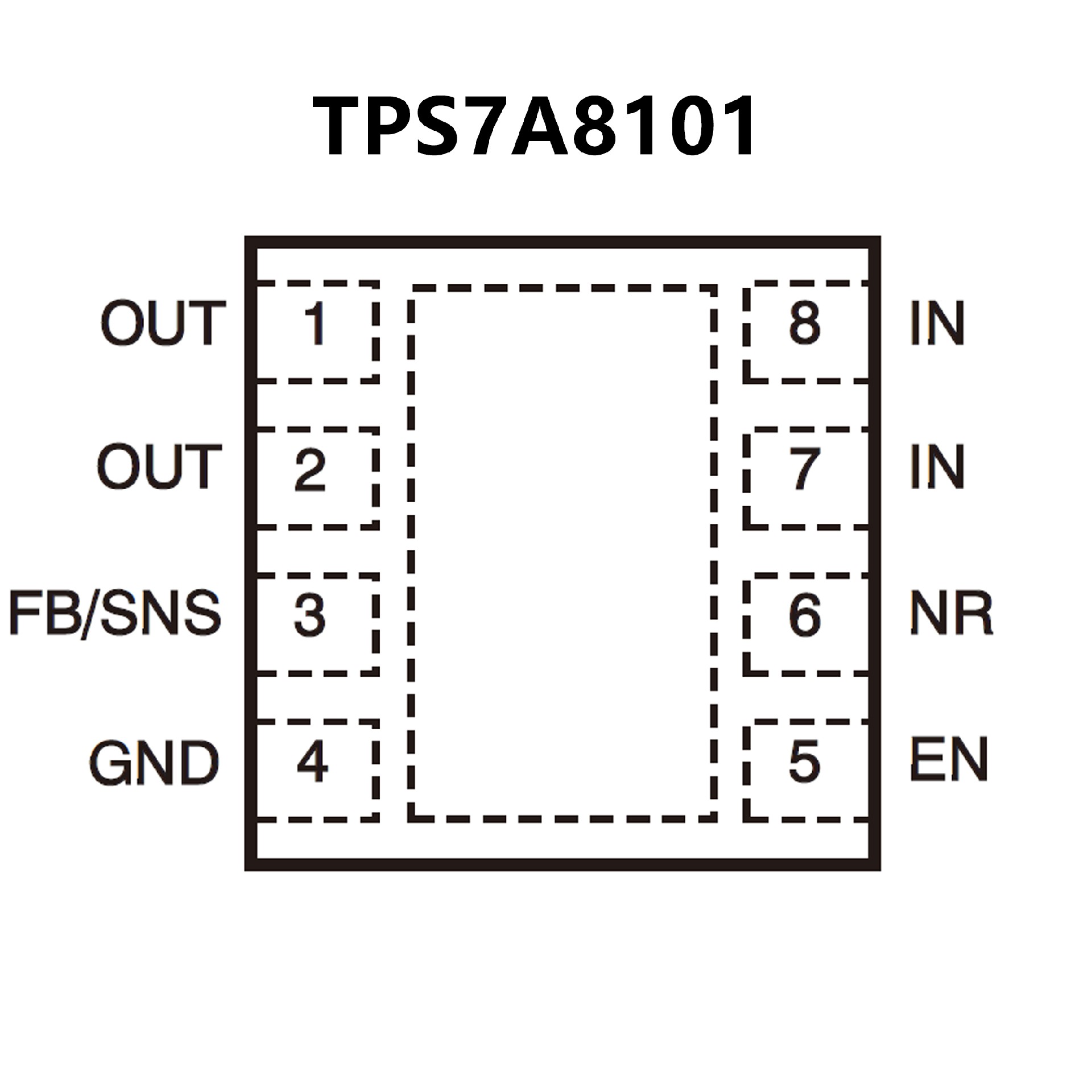

? Low-Dropout 1-A Regulator with Enable
80 dB at 1 kHz
60 dB at 100 kHz
54 dB at 1 MHz
? Low Noise: 23.5 μVRMS typical (100 Hz to
100 kHz)
? Stable with a 4.7-μF Capacitance
? Excellent Load and Line Transient Response
? 3% Overall Accuracy (Over Load, Line, Temperature)
? Overcurrent and Overtemperature Protection
? Very Low Dropout: 170 mV Typical at 1 A
? Package: 3-mm × 3-mm SON-8
