SGM2046.pdf? Input Voltage Range: 0.5V to 5.5V
? Bias Voltage Range: 2.5V to 5.5V
? Adjustable Output Voltage Range: 0.5V to 3.3V
? Low Dropout Voltage: 50mV (TYP) at 1A
? Very Low Bias Input Current: 35μA (TYP)
? Very Low Bias Input Current in Disable Mode: 0.1μA (TYP)
? Low Noise: 29μVRMS (TYP)
? Over-Current Protection
? Over-Temperature Protection
? Fast Load Transient Response
? Logic Level Enable Input for ON/OFF Control
? -40℃ to +125℃ Operating Temperature Range

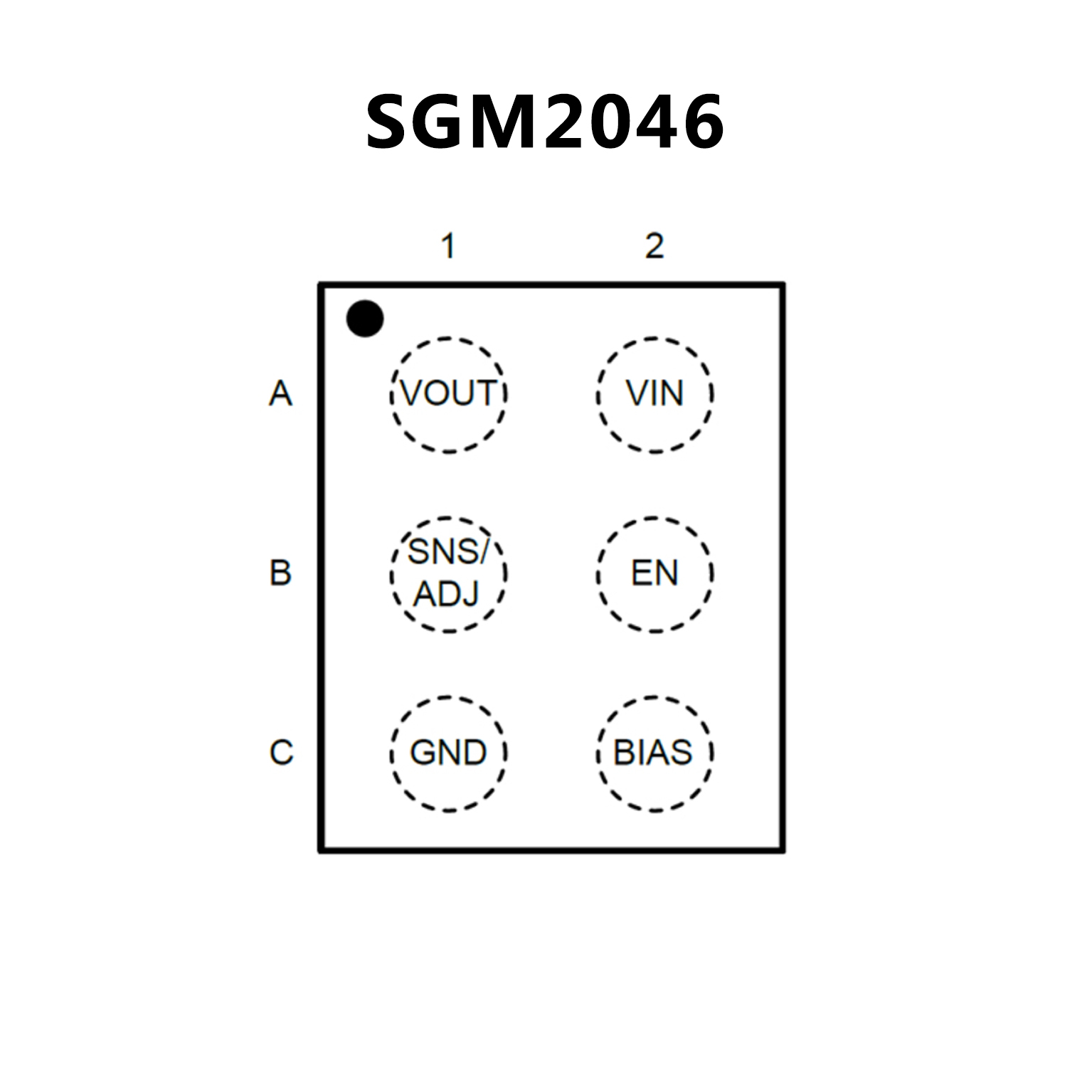

? Available in a Green WLCSP-0.8×1.2-6B-B Package
? Input voltage from VOUT to 5.5 V
? Input bias supply pin from 3.0 V to 5.5 V
? Ultra low-dropout voltage (40 mV typ. at 1 A load)
? Low ground current (35 μA typ. at no load)
? Output voltage tolerance: ±1% all over
temperature range, ±0.5% at 25 °C
? 1 A guaranteed output current
? 50 mV output voltage step available from 0.4 V to 1.8 V
? 100 mV output voltage step available from 1.9 V to 3.6 V
? Adjustable version from 0.5 V to 3.0 V
? Logic-controlled electronic shutdown
? Internal current limit
? Output active discharge function

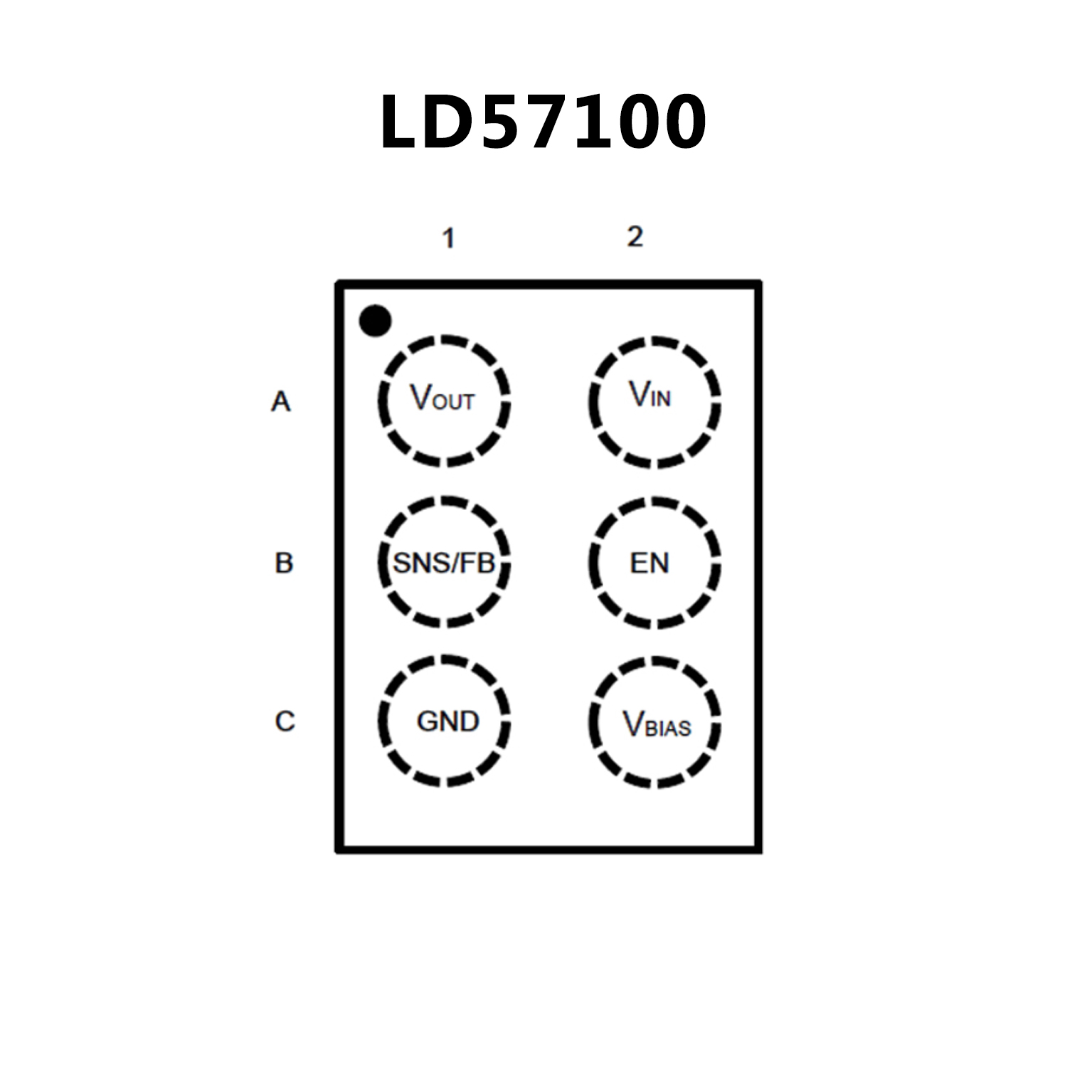

? Available in Flip Chip6 (0.8x1.2 mm) package
? Temperature range: -40 °C to 85 °C
