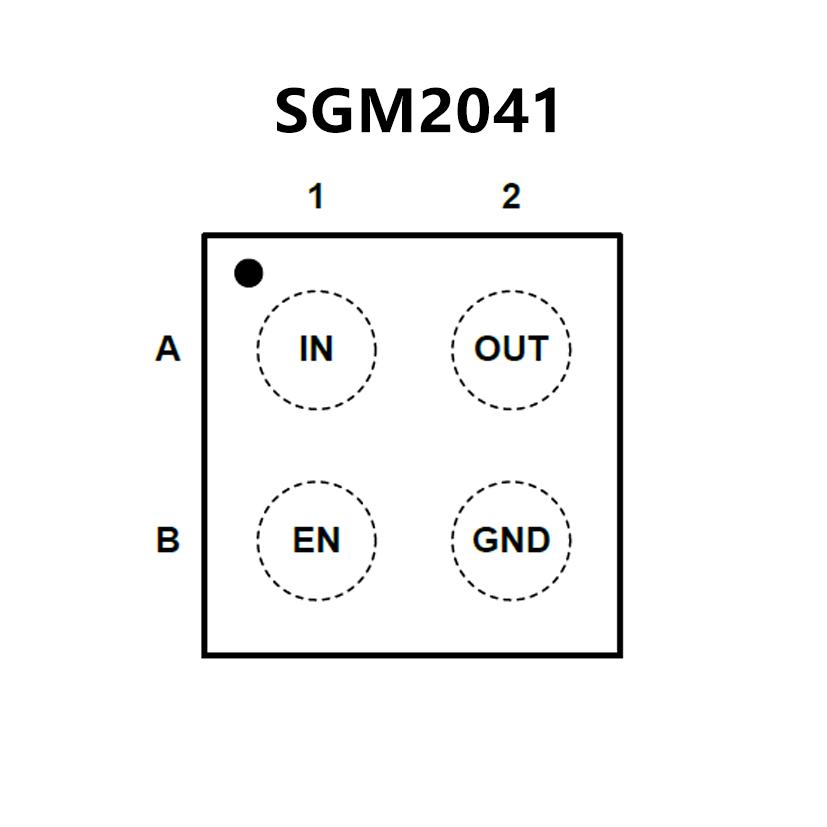

SGM2041.pdf? Operating Input Voltage Range: 1.6V to 5.5V
? Fixed Output Voltage Option: 0.75V to 4.35V
? Ultra-Low Noise: 9.5μVRMS (TYP)
? Ultra-Low Quiescent Current: 15μA (TYP)
? Standby Current: 0.03μA (TYP)
? High PSRR: 92dB (TYP) at 1kHz
? Low Dropout Voltage:
50mV (TYP) at 300mA when VOUT = 2.8V
? Output Short-Circuit Protection
? Over-Temperature Protection
? Fast Load and Line Transient Responses
? Stable with 1μF Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in an Ultra-Thin Green
WLCSP-0.64×0.64-4B-A Package

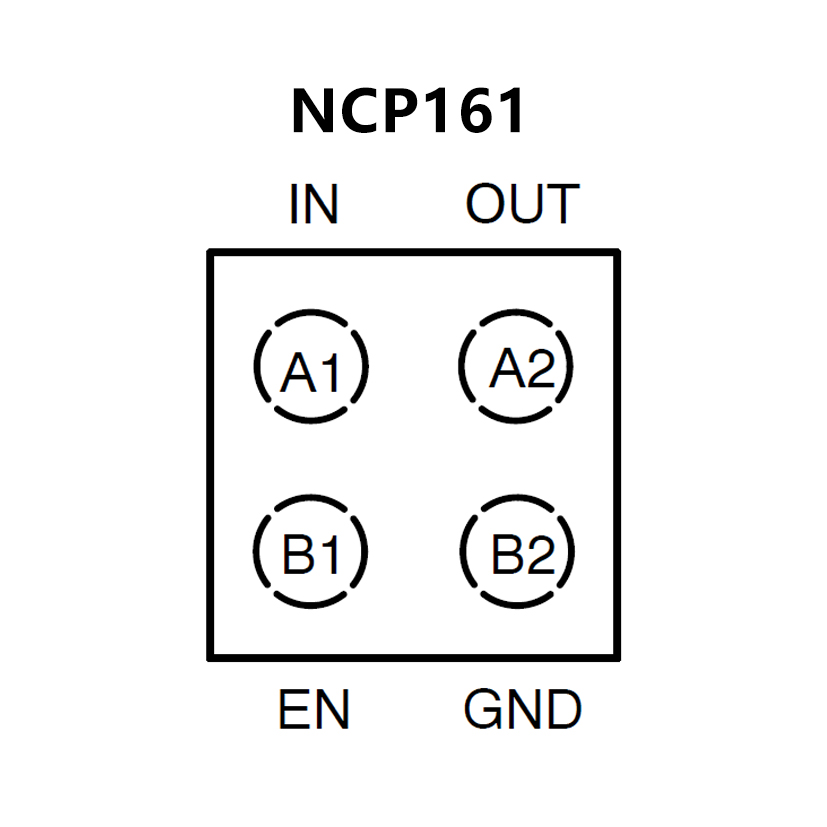

? Operating Input Voltage Range: 1.9 V to 5.5 V
? Available in Fixed Voltage Option: 1.8 V to 5.14 V
? ±2% Accuracy Over Load/Temperature
? Ultra Low Quiescent Current Typ. 18 A
? Standby Current: Typ. 0.1 A
? Very Low Dropout: 150 mV at 450 mA
? Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
? Ultra Low Noise: 10 VRMS
? Stable with a 1 F Small Case Size Ceramic Capacitors
? Available in ?WLCSP4 0.65 mm x 0.65 mm x 0.4 mm
WLCSP4 0.65 mm x 0.65 mm x 0.33 mm
XDFN4 1 mm x 1 mm x 0.4 mm
SOT23?5 2.9 mm x 2.8 mm x 1.2 mm
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS Compliant
