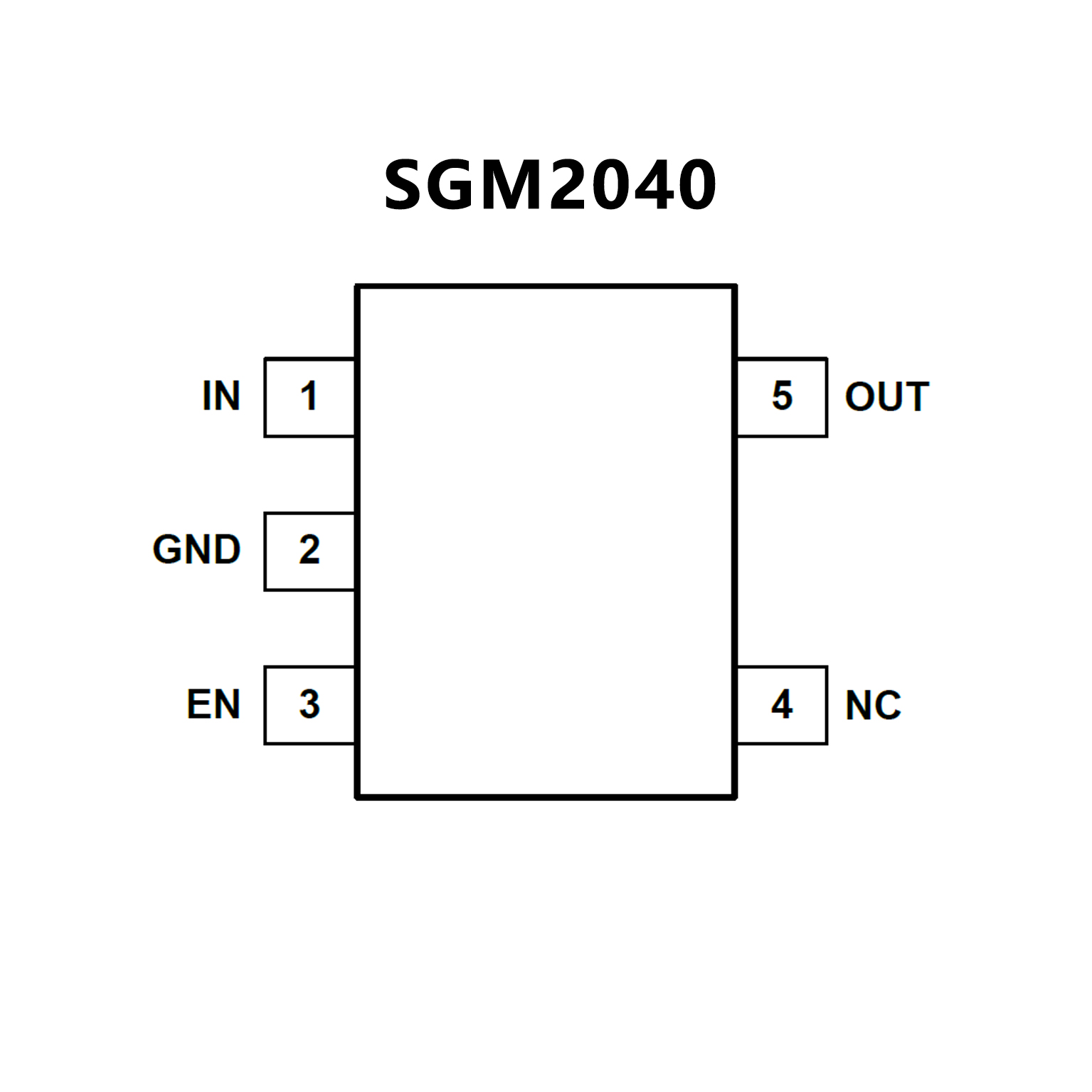

SGM2040.pdf? Operating Input Voltage Range: 1.7V to 7.5V
? Fixed Outputs of 1.2V, 1.5V, 1.8V,
2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V
? 250mA Output Current
? High Output Voltage Accuracy: ±1.2% at +25℃
? Ultra-Low Quiescent Current: 1μA (TYP)
? Low Dropout Voltage: 60mV (TYP) at 100mA
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages

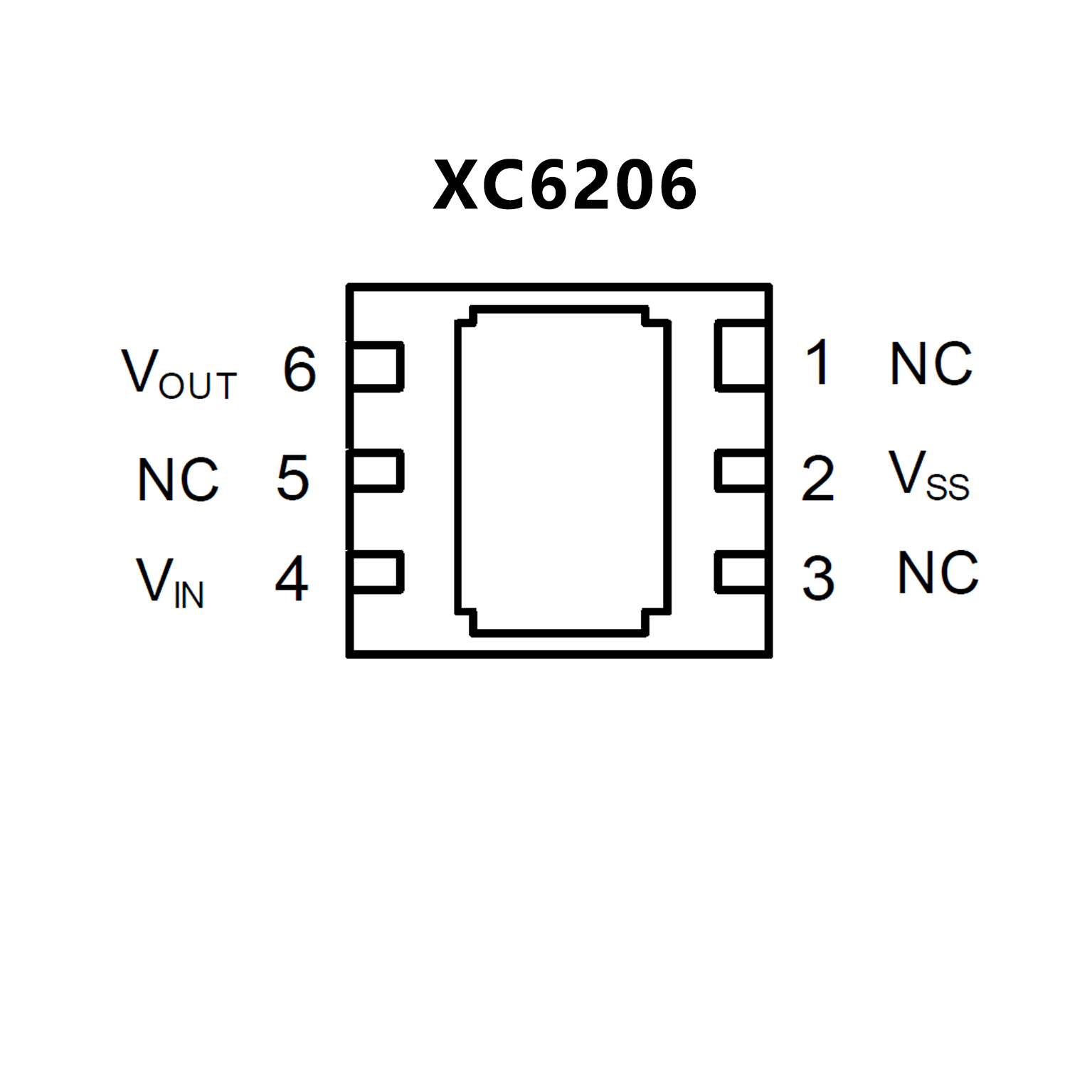

? Maximum Output Current Dropout Voltage
Maximum Operating Voltage Output Voltage Range
Highly Accurate
200mA (3.0V type)
250mV @ 100mA (3.0V type) : 6.0V
1.2V ~ 5.0V (0.1V increments) :±2%@VOUT≧1.5V
+30mV@VOUT<1.5V (+1% @VOUT>2.0V)
? Low Power Consumption Low ESR Capacitor Protection
? Operating Ambient Temperature Packages
1.0μA (TYP.) : Ceramic capacitor compatible
Current Limit Circuit Built-in
-40℃~ +85℃ : SOT-23
? Environmentally Friendly SOT-89
USP-6B : EU RoHS Compliant, Pb Free
