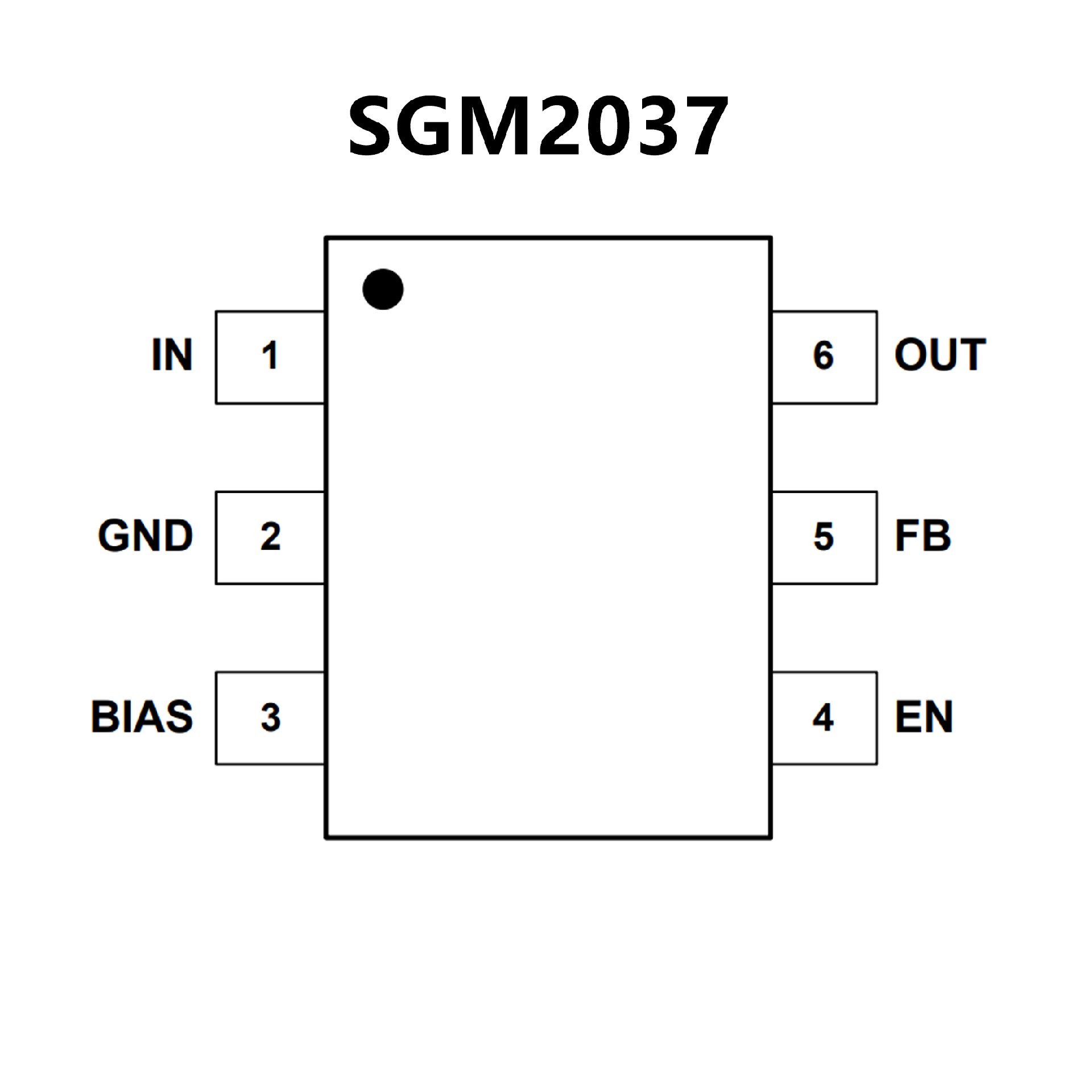

SGM2037-2.5XN5G.pdf? 500mA Nominal Output Current
? Input Voltage Range: 0.8V to 5.5V
? Bias Voltage Range: 2.5V to 5.5V
? Fixed Output Voltages: 0.8V, 0.9V, 1.0V,
1.05V, 1.1V, 1.15V, 1.2V, 1.25V, 1.3V, 1.5V,
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, and 3.6V
? Adjustable Output Voltage Range: 0.8V to 3.6V
? Output Voltage Accuracy: ±0.8% at +25℃
? Low Dropout Voltage: 120mV (TYP) at 500mA
? Very Low Bias Input Current: 37μA (TYP)
? Very Low Bias Input Current in
Shutdown: 0.01μA (TYP)
? Low Noise: 25μVRMS (TYP)
? Over-Current and Over-Temperature Protections
? Fast Load Transient Response
? Logic Level Enable Input for ON/OFF Control
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5, SOT-23-6
and UTDFN-1.2×1.2-6L Packages

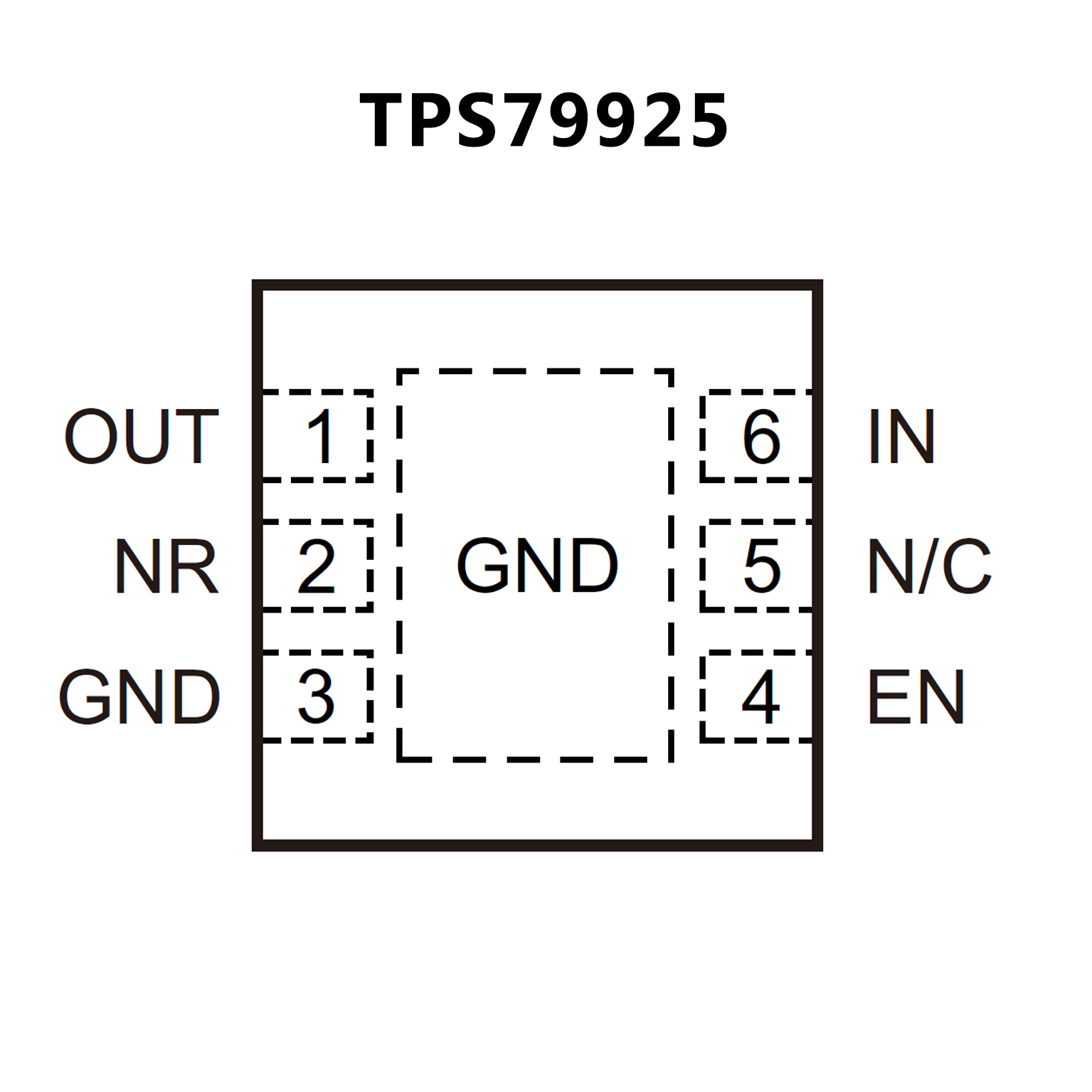

? 200-mA Low-Dropout Regulator With EN
? Multiple Output Voltage Versions Available:
Fixed Outputs of 1.2 V to 4.5 V Using Innovative Factory EEPROM Programming
Adjustable Outputs from 1.20 V to 6.5 V
? Inrush Current Protection with EN Toggle
? Low IQ: 40 μA
? High PSRR: 66 dB at 1 kHz
? Stable with a Low-ESR, 2-μF Typical Output Capacitance
? Excellent Load and Line Transient Response
? 2% Overall Accuracy (Load, Line, and Temperature)
? Very Low Dropout: 100 mV
? Package: 5-Bump, Thin, 1-mm × 1.37-mm DSBGA
