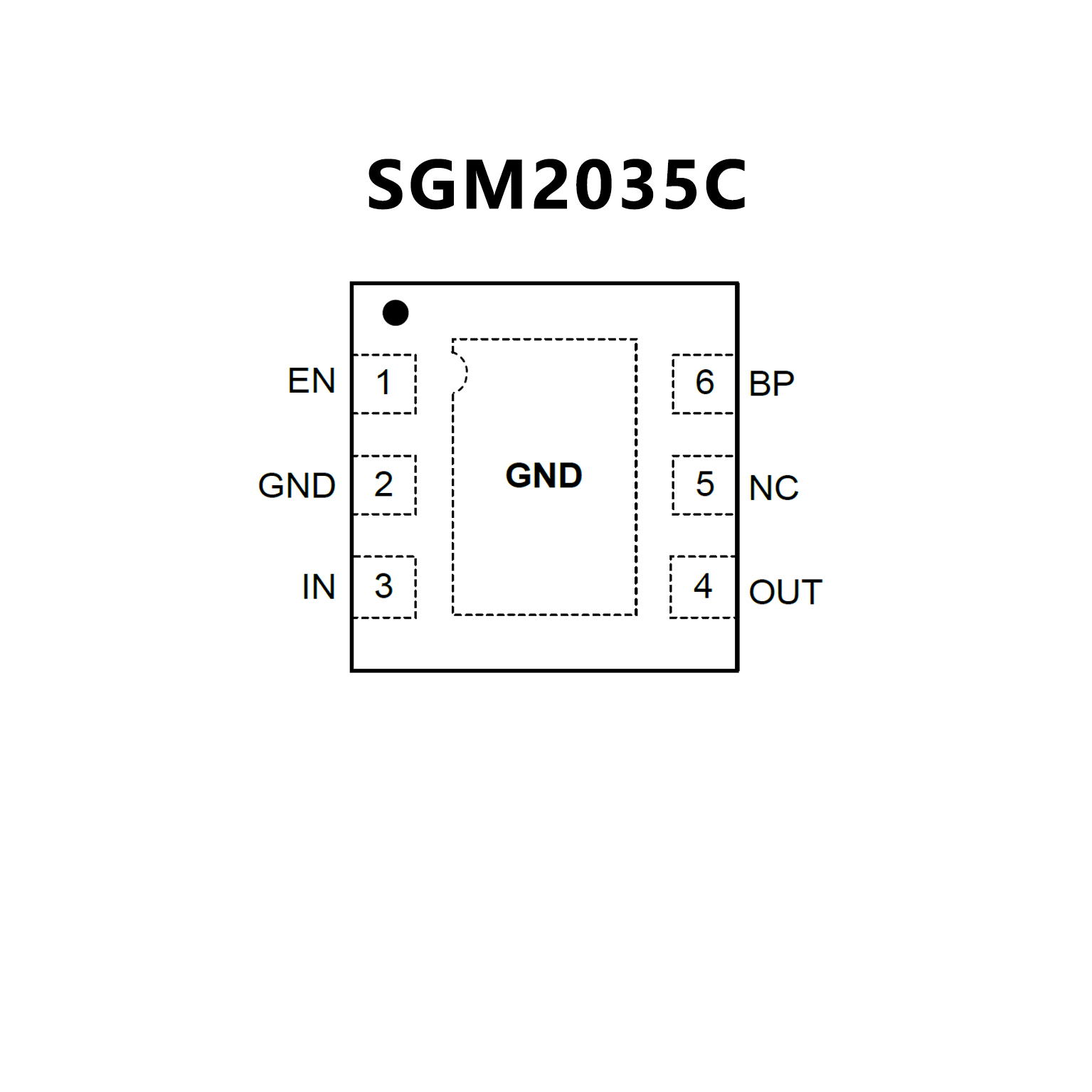

SGM2035C.pdf? 500mA Guaranteed Output Current
? Ultra Low Dropout Voltage
? Low Output Noise
? Thermal-Overload Protection
? Output Current Limit
? High PSRR (73dB at 1kHz)
? 1.8V Logic-Controlled Shutdown
? 110kΩ Pull Down Resistor at EN Pin
? Fixed Output Voltages: 2.8V, 3.0V and 3.3V
? Adjustable Output from 1.2V to 5.0V
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1.6×1.6-6L and TDFN-2×2-6L Packages

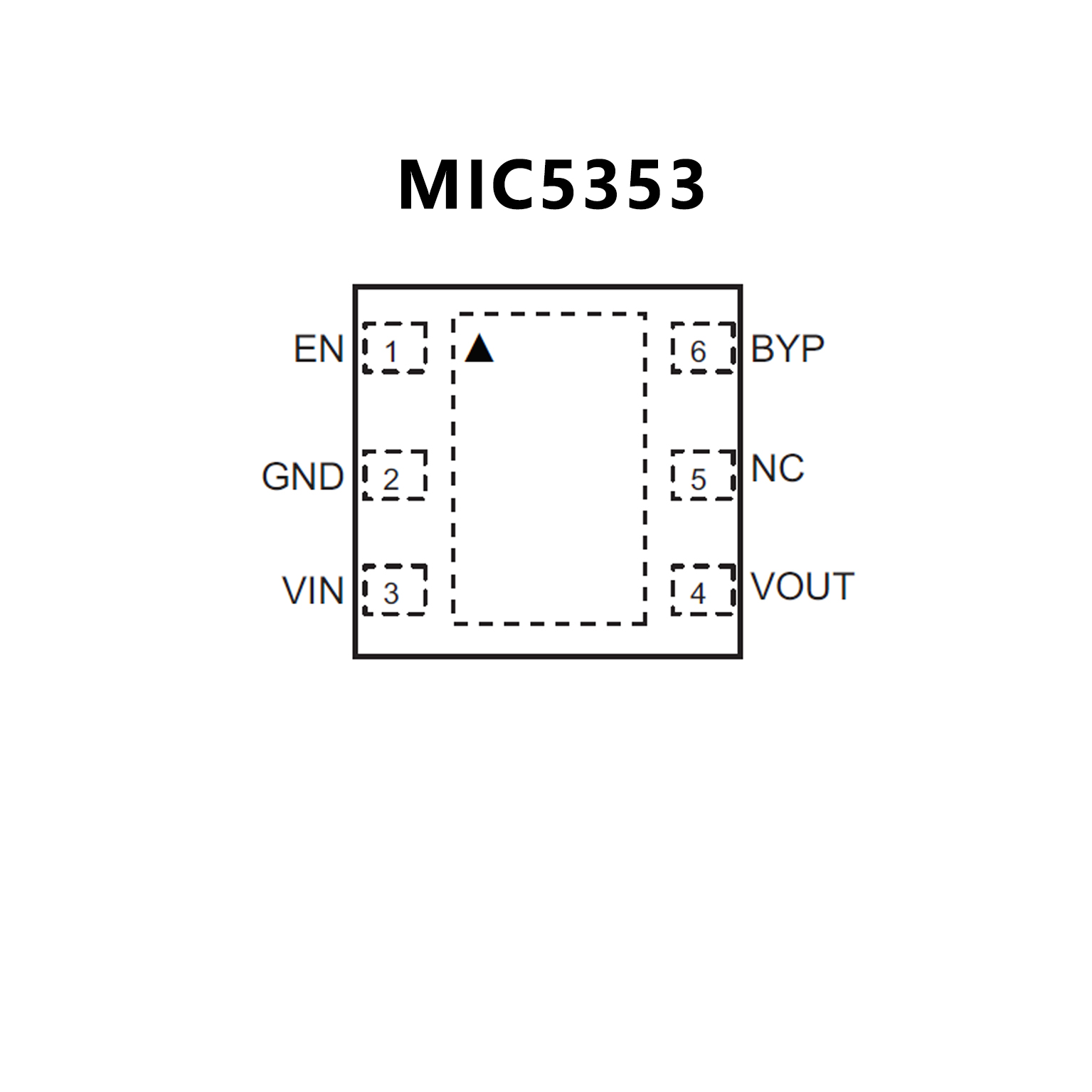

? 500 mA Guaranteed Output Current
? Input Voltage Range: 2.6V to 6V
? Ultra Low Dropout Voltage: 160 mV @ 500 mA
? ±2% initial Accuracy
? Ultra-Low Output Noise: 30 μVrms
? Low Quiescent Current: 90 μA
? Stable with Ceramic Output Capacitors
? 35 μs Turn-On Time
? Thermal Shutdown and Current Limit Protection
? Tiny 6-Pin 1.6 mm x 1.6 mm Thin UDFN Leadless Package
