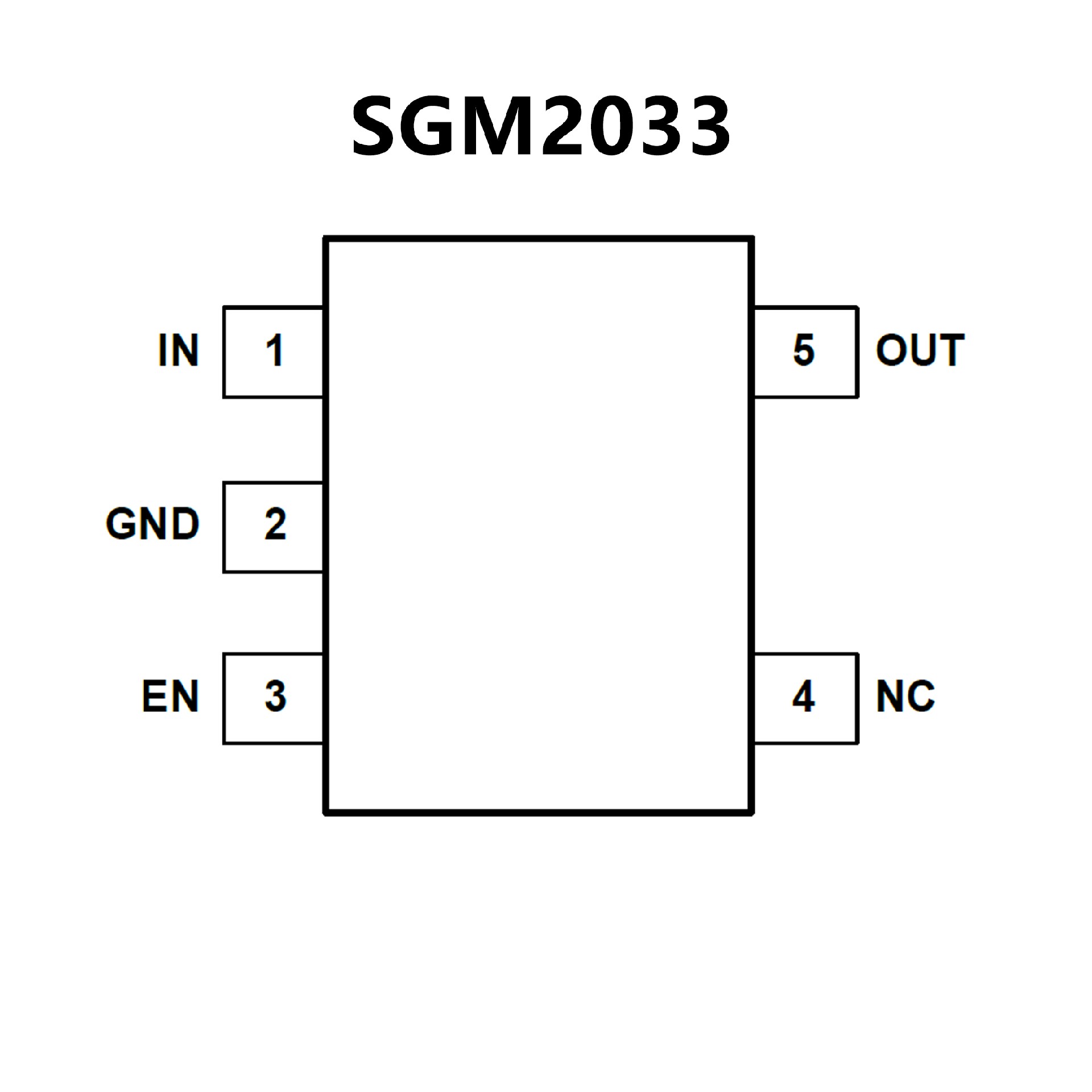

SGM2033-3.3.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages

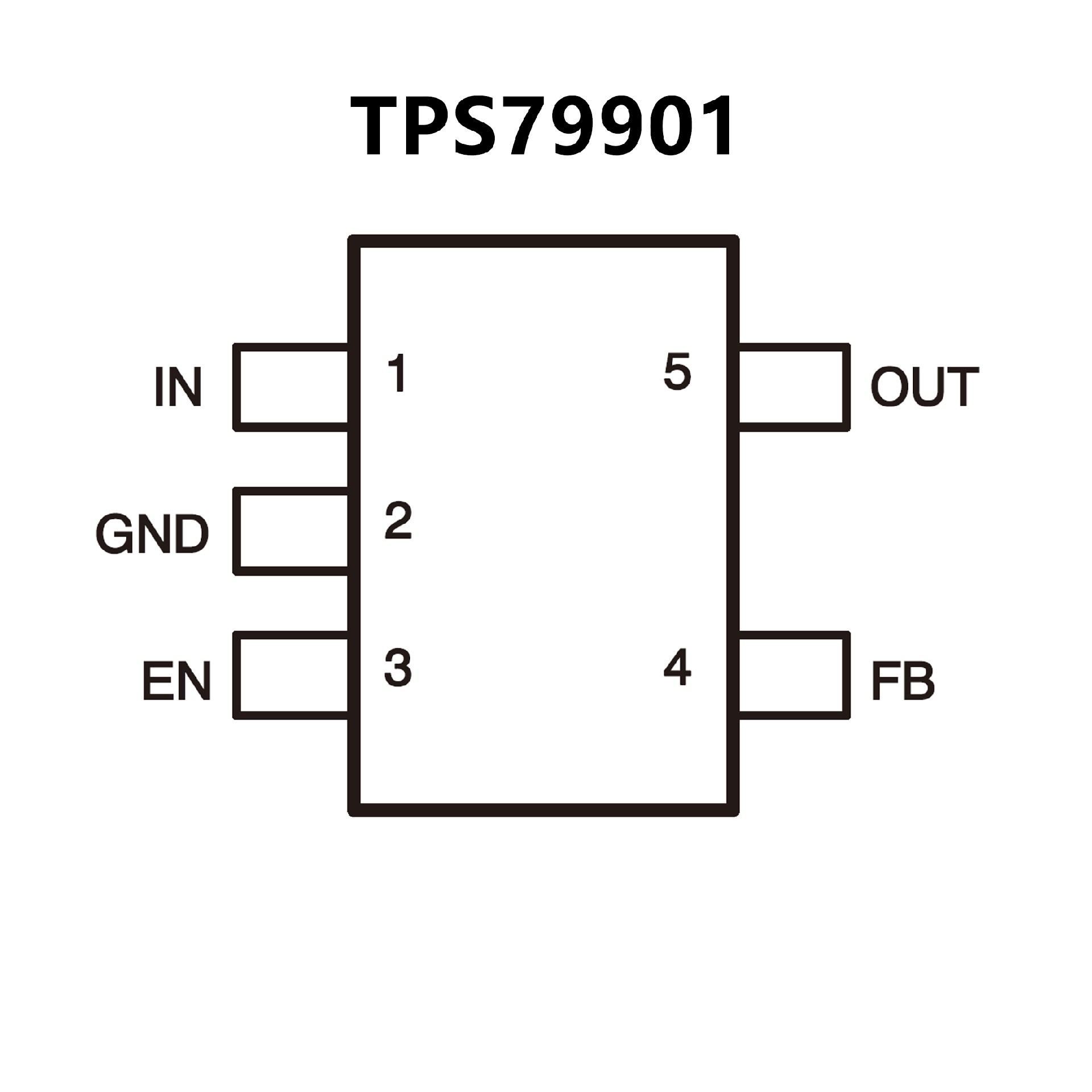

? 200mA Low Dropout Regulator with EN
? Low IQ: 40mA
? Multiple Output Voltage Versions Available:
Fixed Outputs of 1.2V to 4.5V Using
Innovative Factory EEPROM Programming
Adjustable Outputs from 1.20V to 6.5V
? High PSRR: 66dB at 1kHz
? Ultra-low Noise: 29.5mVRMS
? Fast Start-Up Time: 45ms
? Stable with a Low-ESR, 2.0mF
Typical Output Capacitance
? Excellent Load/Line Transient Response
? 2% Overall Accuracy (Load/Line/Temp)
? Very Low Dropout: 100mV
? ThinSOT-23, WCSP, and
2mm × 2mm SON-6 Packages
