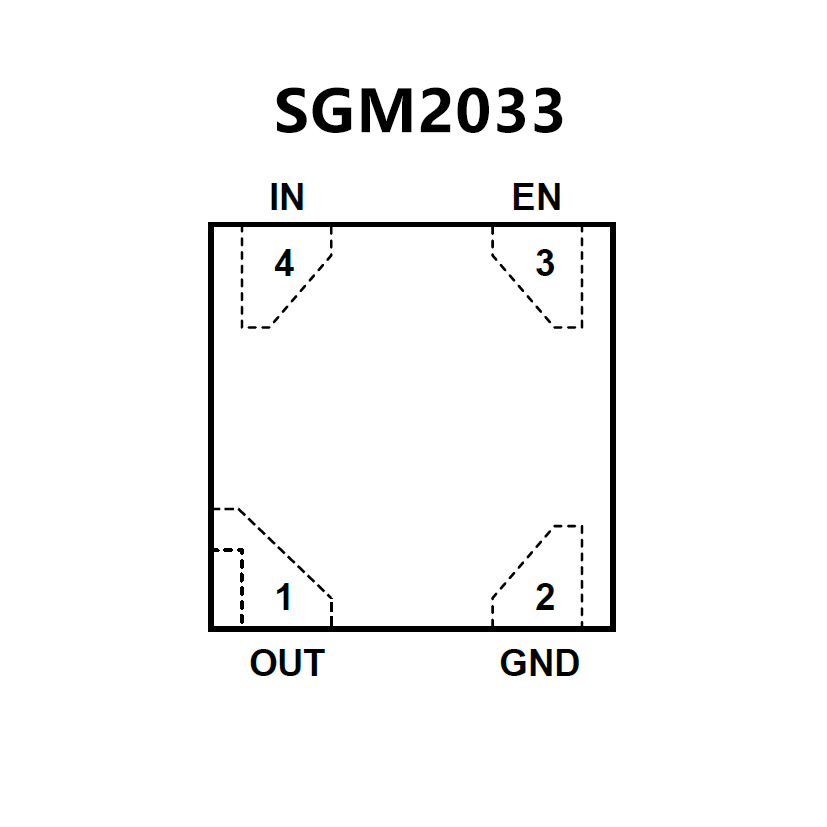

SGM2033.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Short to GND Protection
? Output Current Limit: 500mA (TYP)
? Over-Temperature Protection: +165℃
? Fast Load Transient Response
Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Stable with 1μF Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages
? Operating Input Voltage Range: 1.1 V to 5.5 V
? Available in Fixed Voltage Option: 0.6 V to 4.0 V
? ±2% Accuracy Over Load/Temperature
? Ultra Low Quiescent Current Typ. 20 A
? Standby Current: Typ. 0.1 A
? Very Low Dropout: 70 mV for 1.05 V @ 100 mA
? High PSRR: Typ. 95 dB at 20 mA, f = 1 kHz
? Ultra Low Noise: 8.8 VRMS
? Stable with a 1 F Small Case Size Ceramic Capacitors
? Available in ?WLCSP4 0.64mm x 0.64mm x 0.33mm

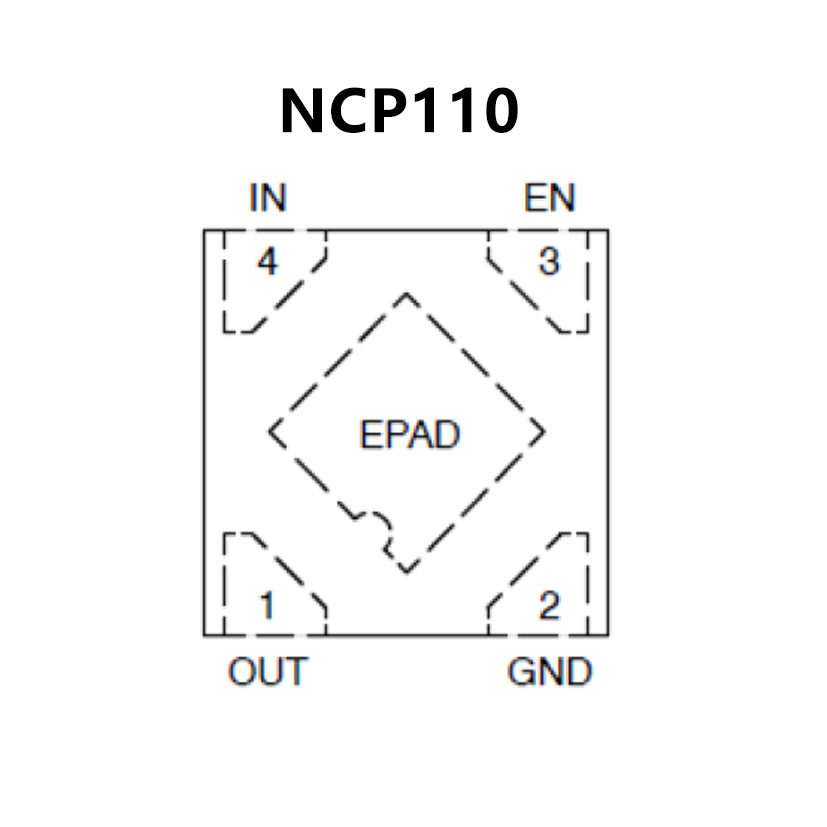

? Case 567VSXDFN4 1mm x 1mm x 0.4mm ? Case 711AJ
? These Devices are Pb?Free, Halogen Free/BFR Free
and are RoHS Compliant
