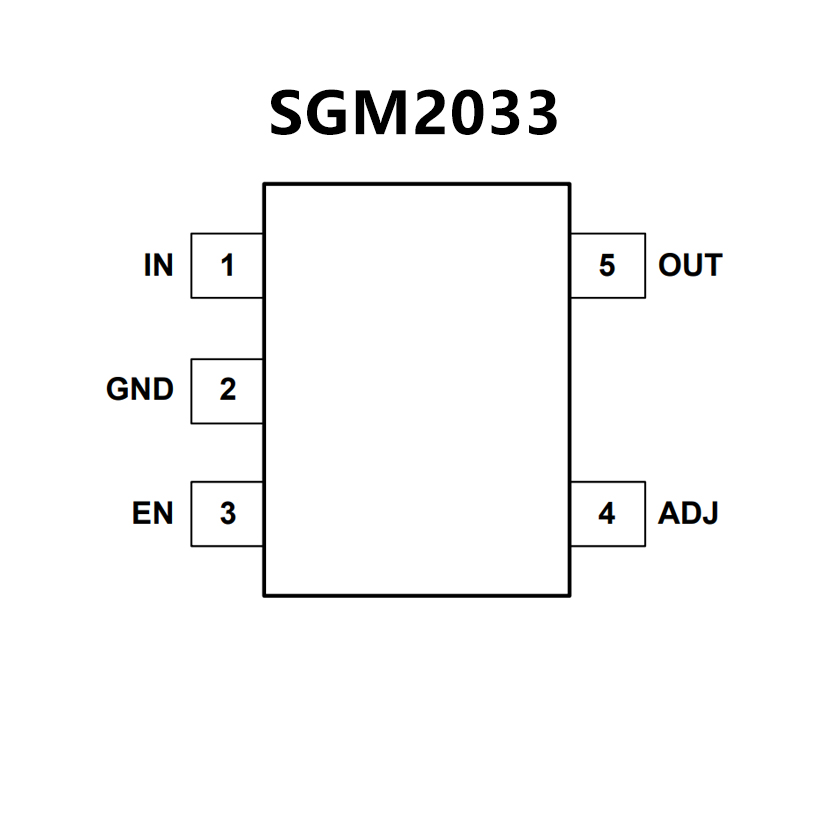

SGM2033-ADJXN5G.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when
VOUT = 1.8V (SOT-23-5)
145mV (TYP) at 250mA when
VOUT = 1.8V (UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and
UTDFN-1×1-4AL Packages

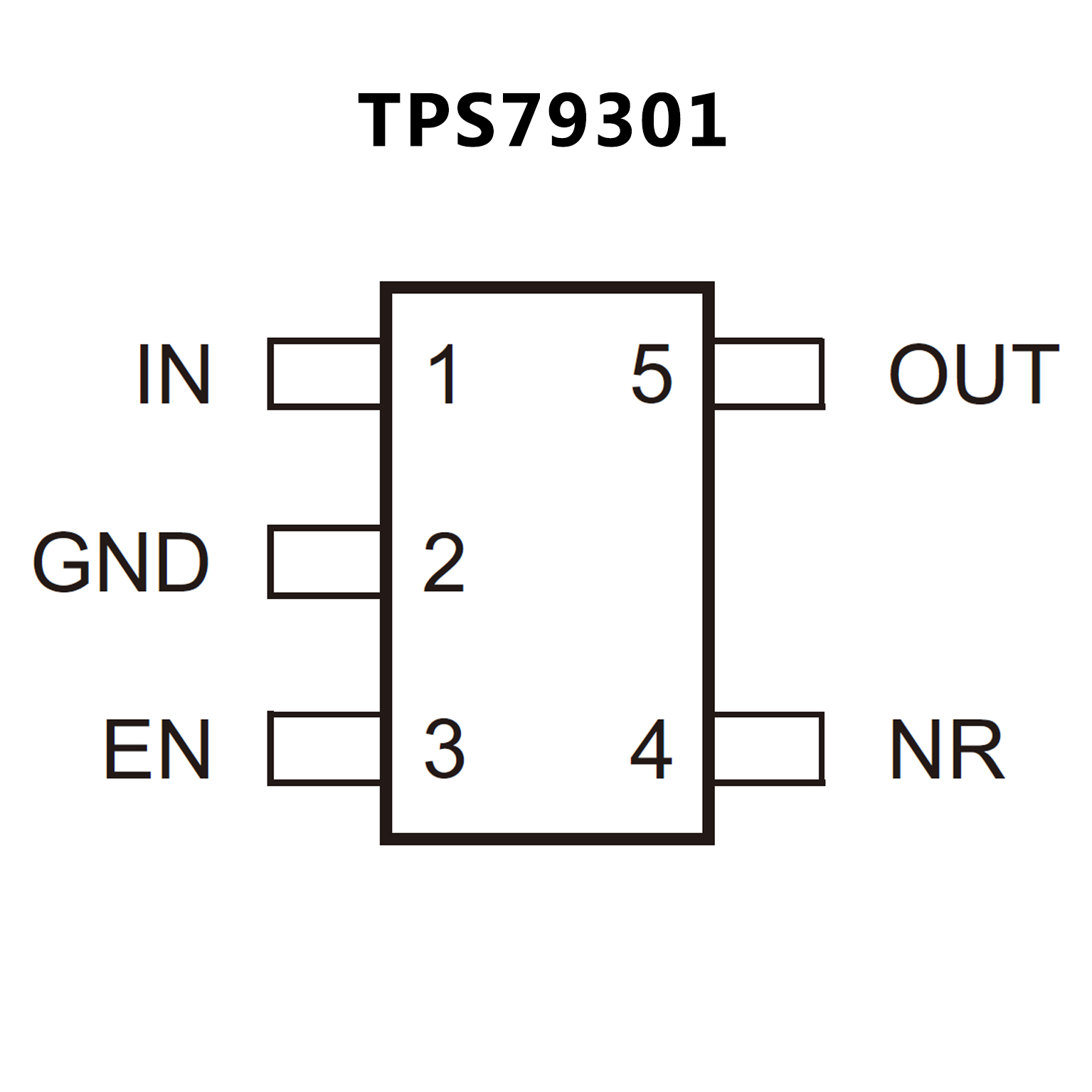

TPS79301.pdf? 200-mA RF Low-Dropout Regulator With Enable
? Available in Fixed-Voltage Versions from 1.8 V to 4.75 V and Adjustable (1.22 V to 5.5 V)
? High PSRR (70 dB at 10 kHz)
? Low Noise (32 μVRMS, TPS79328)
? Fast Start-Up Time (50 μs)
? Stable With a 2.2-μF Ceramic Capacitor
? Excellent Load and Line Transient Response
? Very Low Dropout Voltage (112 mV at 200 mA, TPS79330)
? 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YZQ) Packages
