Low Capacitance 1-Channel ESD Protection, SGM05CB1A4 P2P PESDWC2XD5VB.
SGM05CB1A4
SGM05CB1A4.pdf
SGM05CB1A4.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
? Rated Peak Pulse Current: 4A
? 2.7pF (TYP) Channel Input Capacitance
? Low Profile Packages: UTDFN-1×0.6-2L,
XTDFN-0.6×0.3-2L
? Working Voltage: 5.0V and below
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 30W peak pulse power per line (tP = 8/20μs)

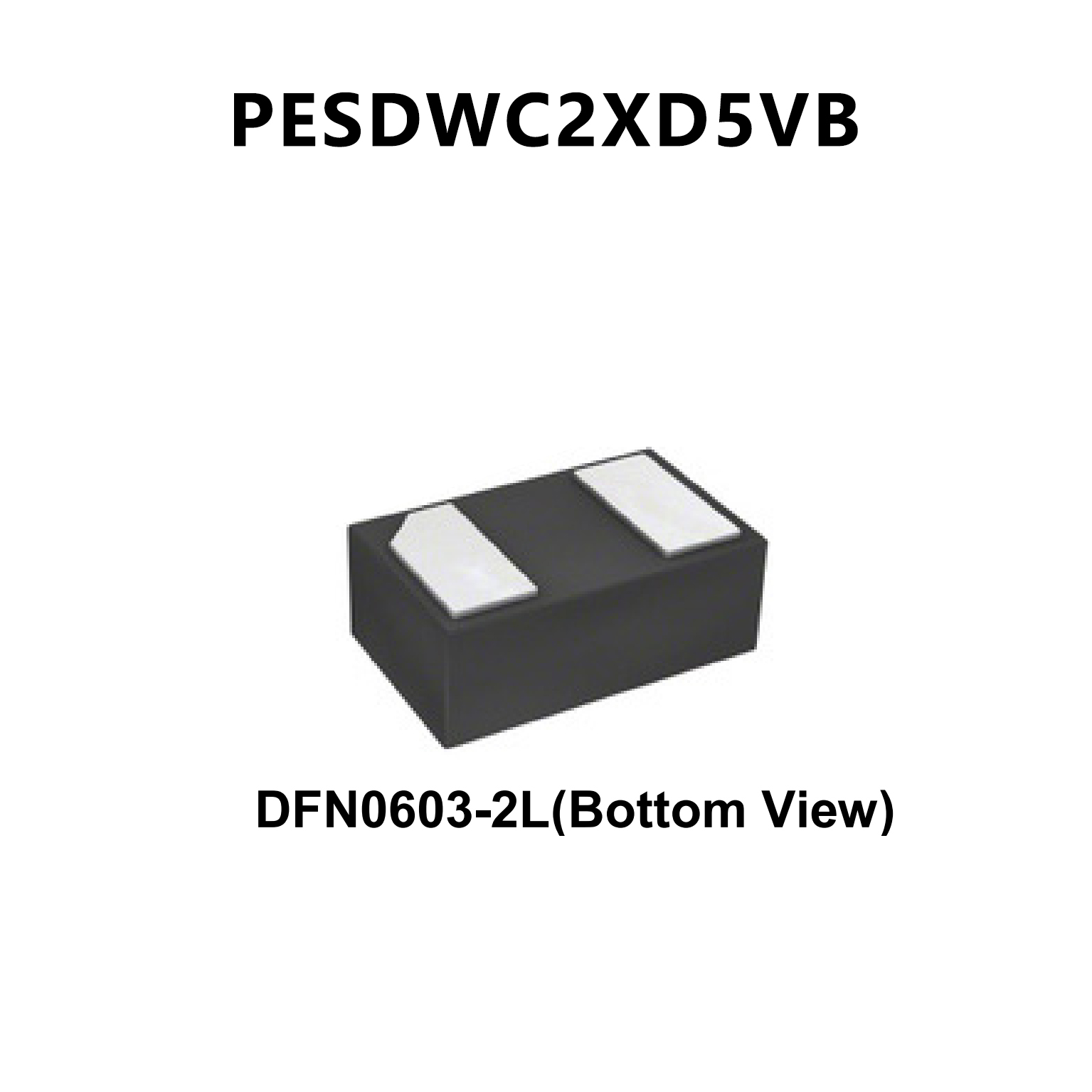

? DFN0603-2L package
? Replacement for MLV(0201)
? Bidirectional configurations
? Response time is typically < 1ns
? High ESD protection
? Low clamping voltage
? RoHS compliant
? Transient protection for data lines to
IEC 61000-4-2(ESD)±12KV(air), ±10KV(contact);
IEC 61000-4-4 (EFT) 40A (5/50ns)
PIN CONFIGUTION
