Low Capacitance 1-Channel ESD Protection, SGM05CB1A4 P2P PESD5V0U1BL.
SGM05CB1A4
SGM05CB1A4.pdf
SGM05CB1A4.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
? Rated Peak Pulse Current: 4A
? 2.7pF (TYP) Channel Input Capacitance
? Low Profile Packages: UTDFN-1×0.6-2L,
XTDFN-0.6×0.3-2L
? Working Voltage: 5.0V and below
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Bidirectional ESD protection of one line
? Low diode capacitance: Cd = 2.9 pF
? Ultra low leakage current: IRM = 5 nA
? ESD protection of up to 10 kV
? IEC 61000-4-2, level 4 (ESD)
? AEC-Q101 qualified

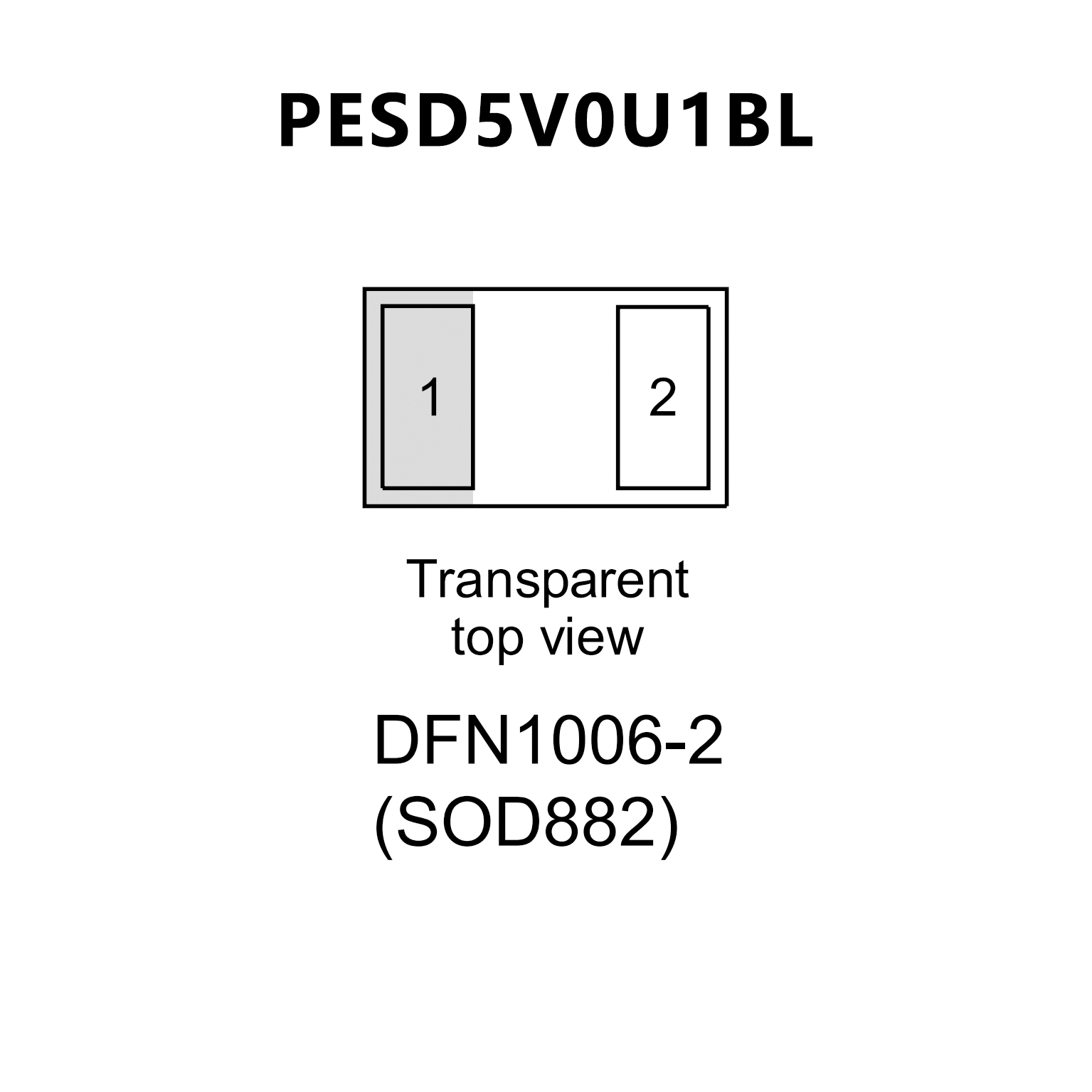

PIN CONFIGUTION
