100 mΩ Single Channel Smart High Side Power Switch, SCT54100 Replace TPS1H100BQPWPRQ1.
FEATURES

資料完善中......










































PIN CONFIGUTION
優勢替代
TPS1H100 TPS1H100.pdf

No.13288

FEATURES

? Qualified for automotive applications

? AEC-Q100 Qualified with the following results:

  Device temperature grade 1: –40°C to 125°C

  ambient operating temperature range

  Device HBM ESD classification level H3A

  Device CDM ESD classification level C4B

? Functional safety capable

  Documentation available to aid functional

  safety system design

? Single-channel smart high-side power switch with

  full diagnostics

  Version A: open-drain status output

  Version B: current sense analog output

? Wide operating voltage 3.5 to 40 V

? Very-low standby current, <0.5 μA

? Operating junction temperature, –40 to 150°C

? Input control, 3.3-V and 5-V logic compatible

? High-accuracy current sense, ±30 mA at 1 A,

  ±4 mA at 5 mA

? Programmable current limit with external resistor,

  ±20% at 0.5 A

? Diagnostic enable function for multiplexing of mcu

  analog or digital interface

? Tested according to AECQ100-12 Grade A,

  1 million times Short to GND test

? Electrical transient disturbance immunity

  certification of ISO7637-2 and ISO16750-2

? Protection

  Overload and short-circuit protection

  Inductive load negative voltage clamp

  Undervoltage lockout (UVLO) protection

  Thermal shutdown/swing with self recovery

  Loss of GND, loss of supply protection

  Reverse battery protection with external

  circuitry

? Diagnostic

  On- and Off-state output open- and short-tobattery

  detection

  Overload and short to ground detection and

  current limit

  Thermal shutdown/swing detection

? 14-Pin Thermally-enhanced PWP package

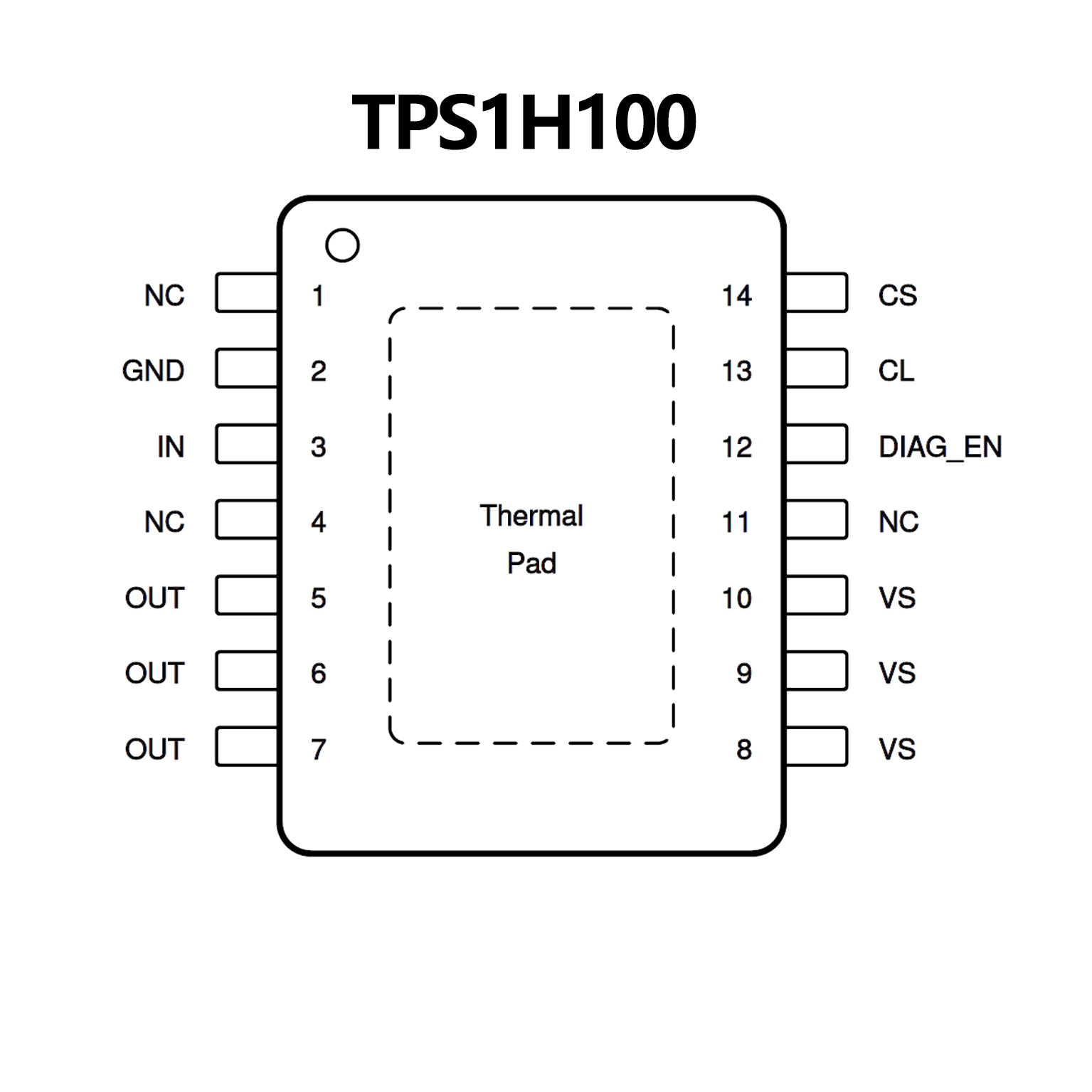

PIN CONFIGUTION
