SCT53601.pdf? AEC-Q100 qualified for automotive applications:
Temperature grade 1: –40°C ≤ TA ≤ 125°C
Temperature grade 0: –40°C ≤ TA ≤ 150°C
? Extended junction temperature range:
Grade 1: –40°C ≤ TJ ≤ 150°C
Grade 0: –40°C ≤ TJ ≤ 165°C
? Low quiescent current IQ:
300-nA shutdown IQ
2.7 μA typical at light loads
5 μA maximum at light loads
? 3-V to 40-V wide VIN input voltage range with up to
45-V transient
? Maximum output current: 300 mA
? 2% output-voltage accuracy
? Maximum dropout voltage: 700 mV at 200-mA load
current for fixed 5-V output version
? Stable with low-ESR (0.001-Ω to 5-Ω) ceramic
output-stability capacitor (1 μF to 200 μF)
? Fixed 2.5-V, 3.3-V, and 5-V output voltage
? Packages:

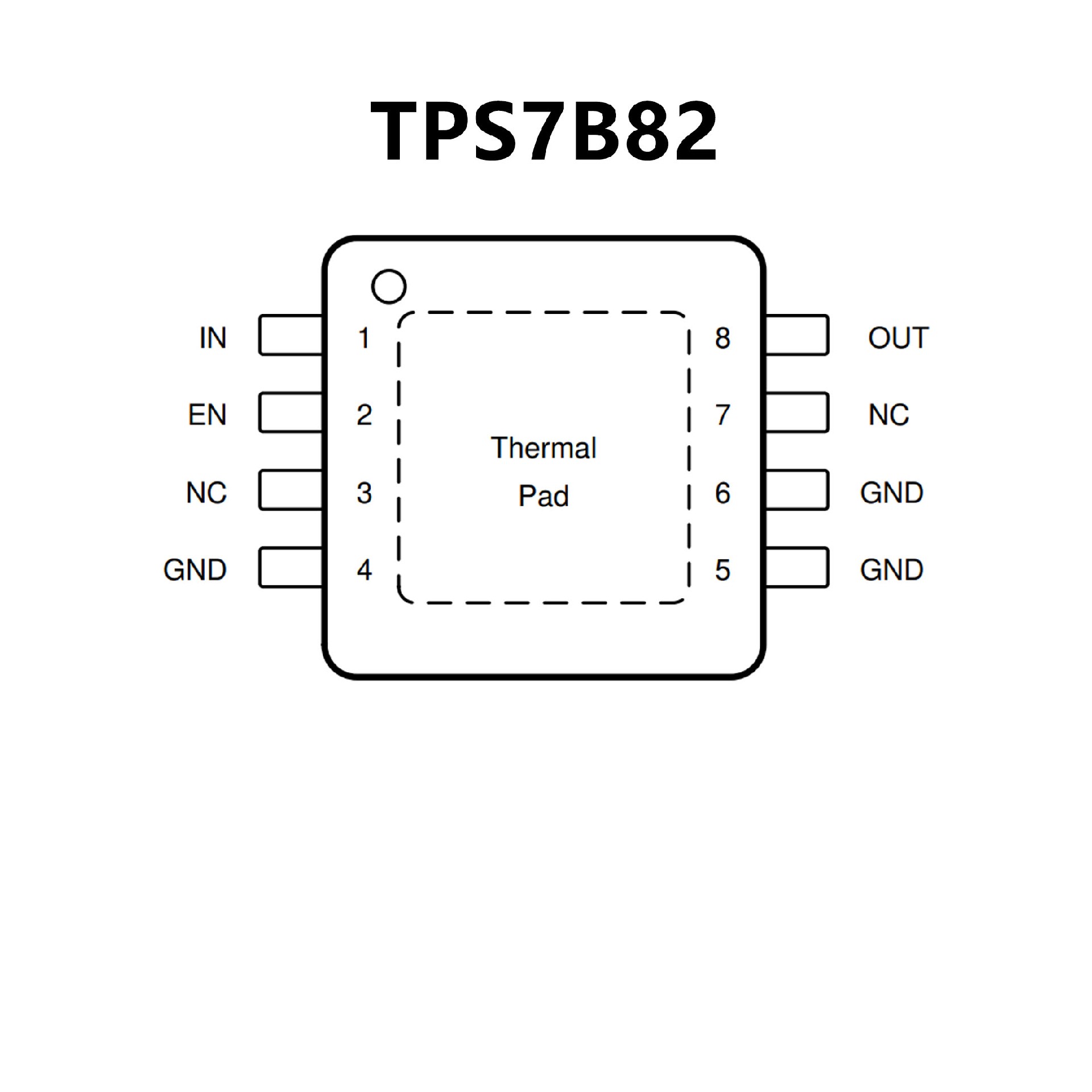

8-pin HVSSOP, RθJA = 63.9°C/W
6-pin WSON, RθJA = 72.8°C/W
5-pin TO-252, RθJA = 31.1°C/W
14-pin HTSSOP, RθJA = 52.0°C/W
