SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-Channel MOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252uA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150oC

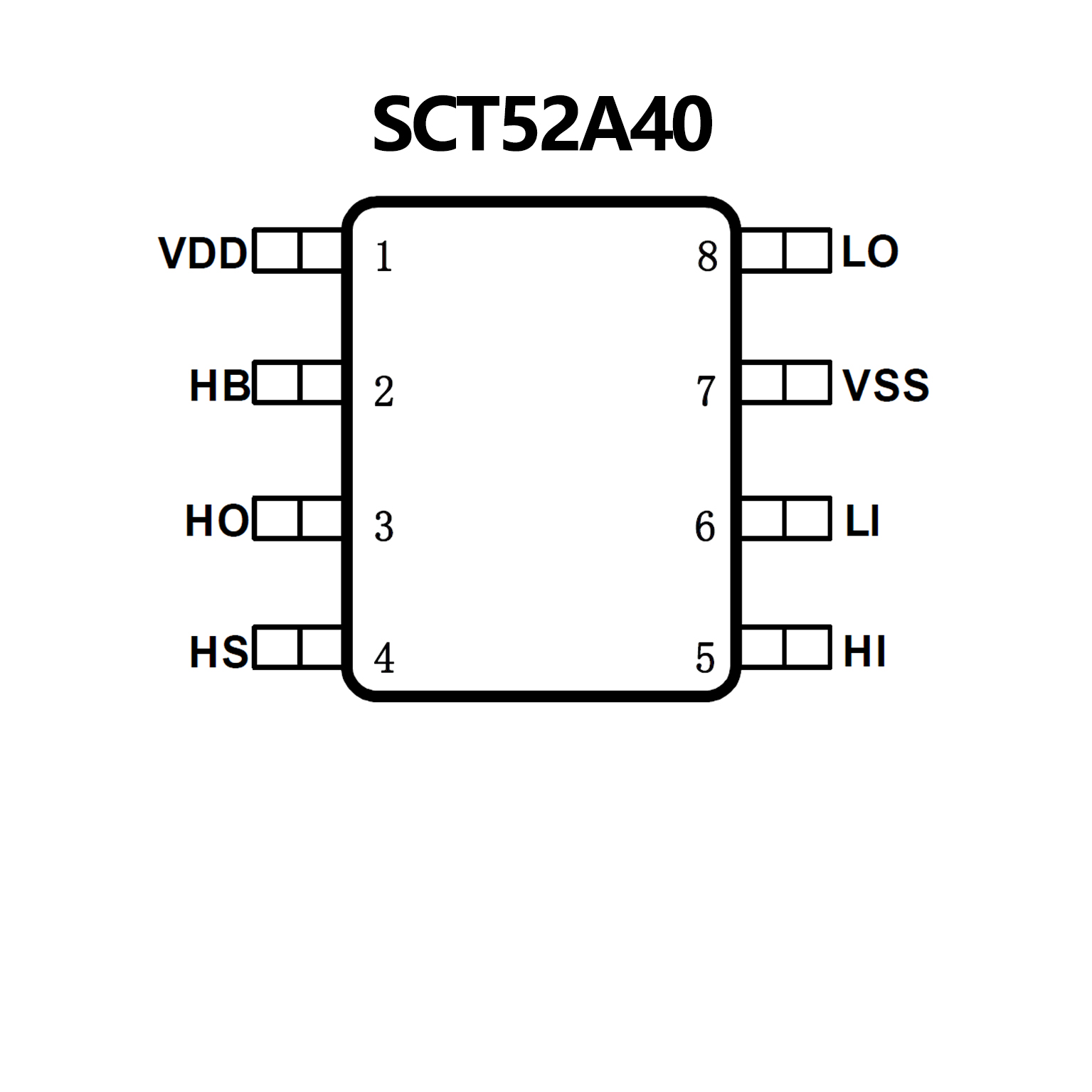

? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package
? Drives N-channel MOSFET half-bridge
? Space saving DFN package
? DFN package compliant with 100V conductor spacing
guidelines per IPC-2221
? Pb-free (RoHS compliant)
? Bootstrap supply maximum voltage to 114VDC
? On-chip 1Ω bootstrap diode
? Fast propagation times for multi-MHz circuits
? Drives 1nF load with typical rise/fall times of 16ns

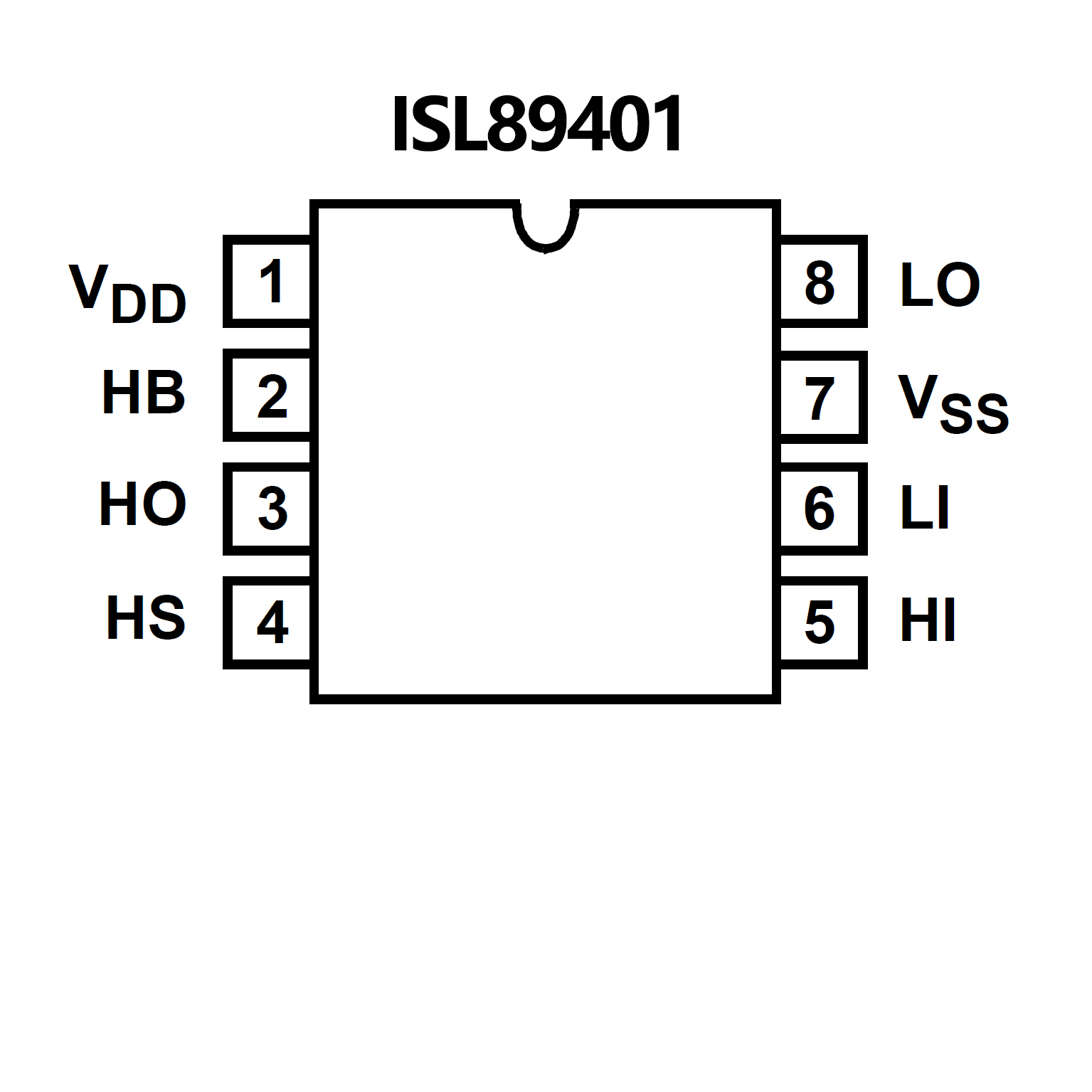

? CMOS compatible input thresholds (ISL89400)
? 3.3V/TTL compatible input thresholds (ISL89401)
? Independent inputs provide flexibility
? No start-up problems
? Outputs unaffected by supply glitches, HS ringing below
ground or HS slewing at high dV/dt
? Low power consumption
? Wide supply voltage range (9V to 14V)
? Supply undervoltage protection
? 4.0Ω typical output pull-up/pull-down resistance
