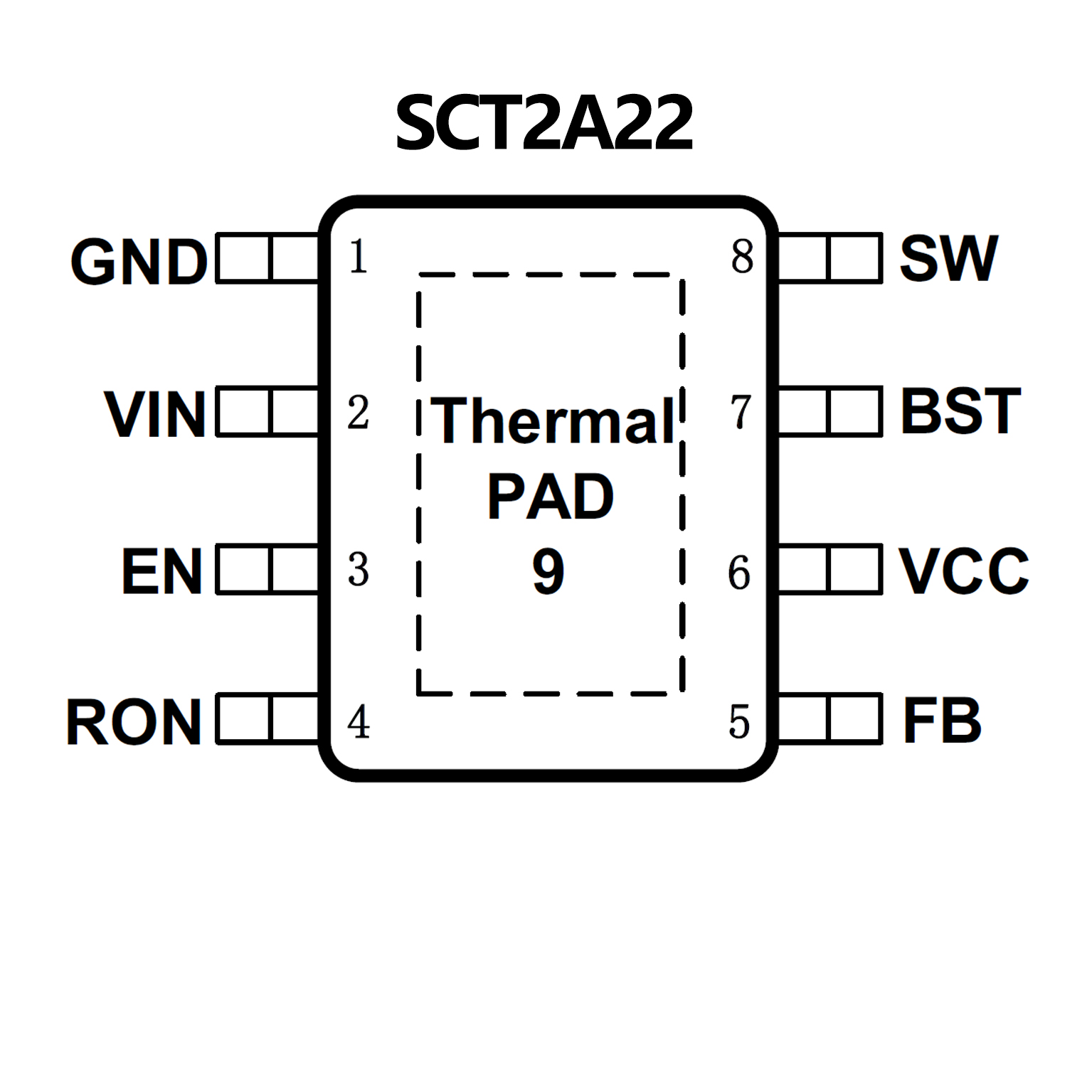

SCT2A22.pdf? Wide Input Range: 4.5V-100V
? 1A Continuous Output Current
? Integrated 530mΩ High-Side and 220mΩ Low-
Side Power MOSFETs
? 1.2V ±1% Feedback Reference Voltage at Room
Temperature
? 4.3ms Internal Soft-start Time
? Programmable Switching Frequency up to
600KHz
? COT Control Mode
? Forced PWM mode support Isolation Buck
Topology
? Precision Enable Threshold for Programmable
Input UVLO Threshold and Hysteresis
? Cycle-by-Cycle Current Limiting
? Over-Voltage Protection
? Over-Temperature Protection
? Available in an ESOP-8 Package

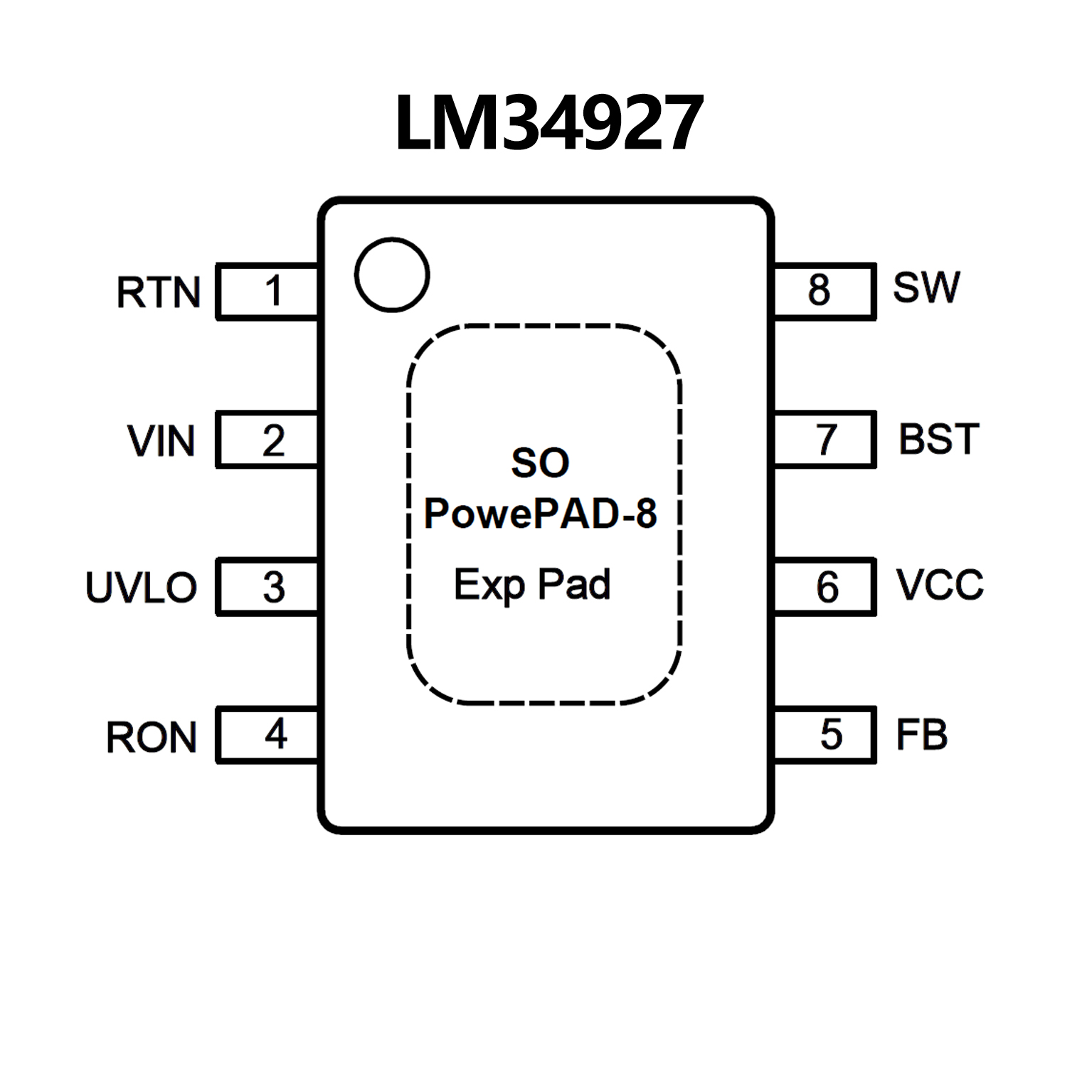

? Wide 7.5-V to 100-V Input Range
? Integrated 600-mA High-Side
and Low-Side Switches
? No Schottky Required
? Constant On-Time Control
? No Loop Compensation Required
? Ultra-Fast Transient Response
? Nearly Constant Operating Frequency
? Intelligent Peak Current Limit
? Adjustable Output Voltage From 1.225 V
? Precision 2% Feedback Reference
? Frequency Adjustable to 1 MHz
? Adjustable Undervoltage Lockout (UVLO)
? Remote Shutdown
? Thermal Shutdown
? Packages:
8-pin WSON
8-pin SO PowerPAD?
