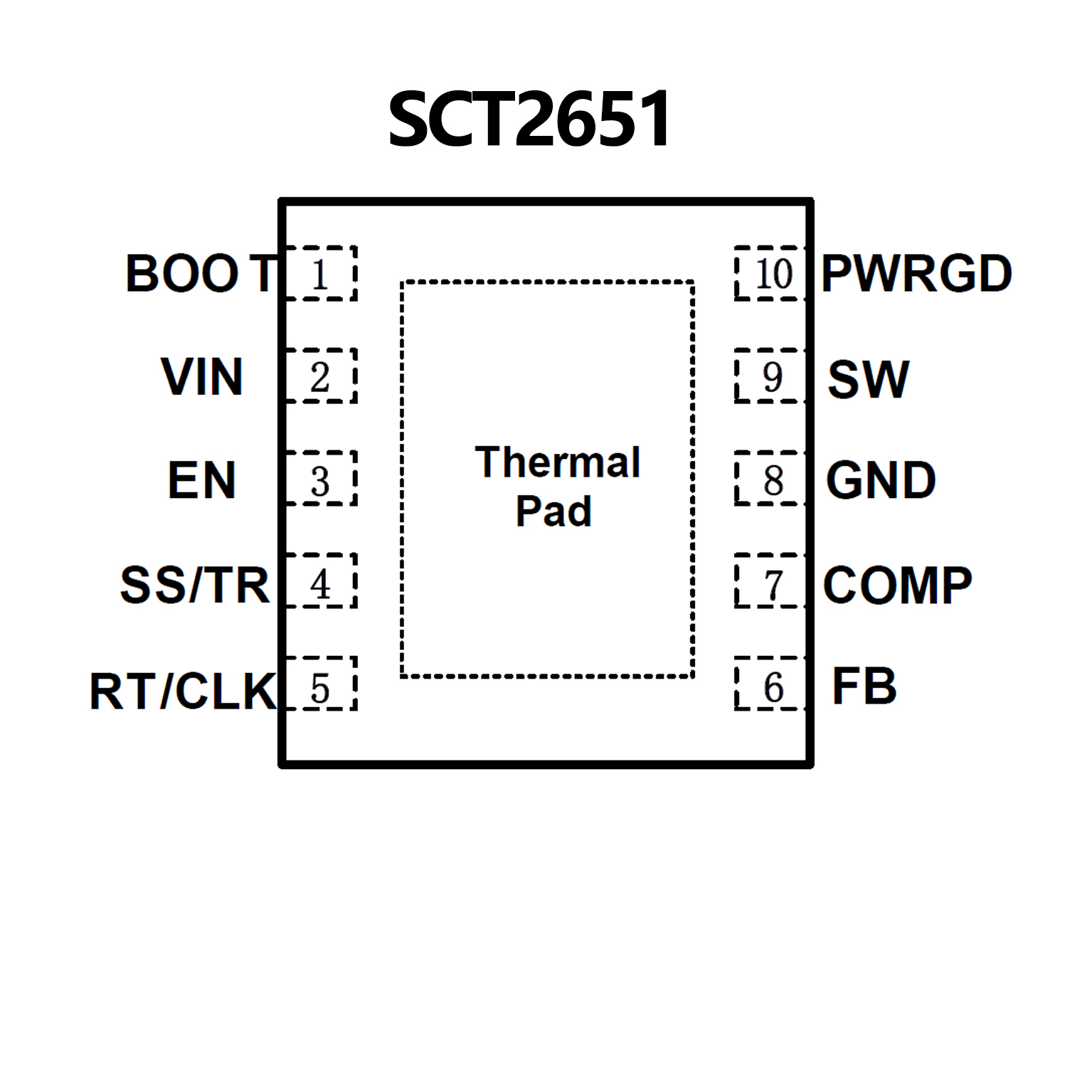

SCT2651.pdf? Wide Input Range: 4.5V-60V
? Up to 5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80mΩ High-Side
? Low Quiescent Current: 175uA
? Pulse Skipping Mode (PSM) in light load
? 130ns Minimum On-time
? Programmable Soft-start Time
? Adjustable Frequency 100KHz to 800KHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in DFN-10L Package

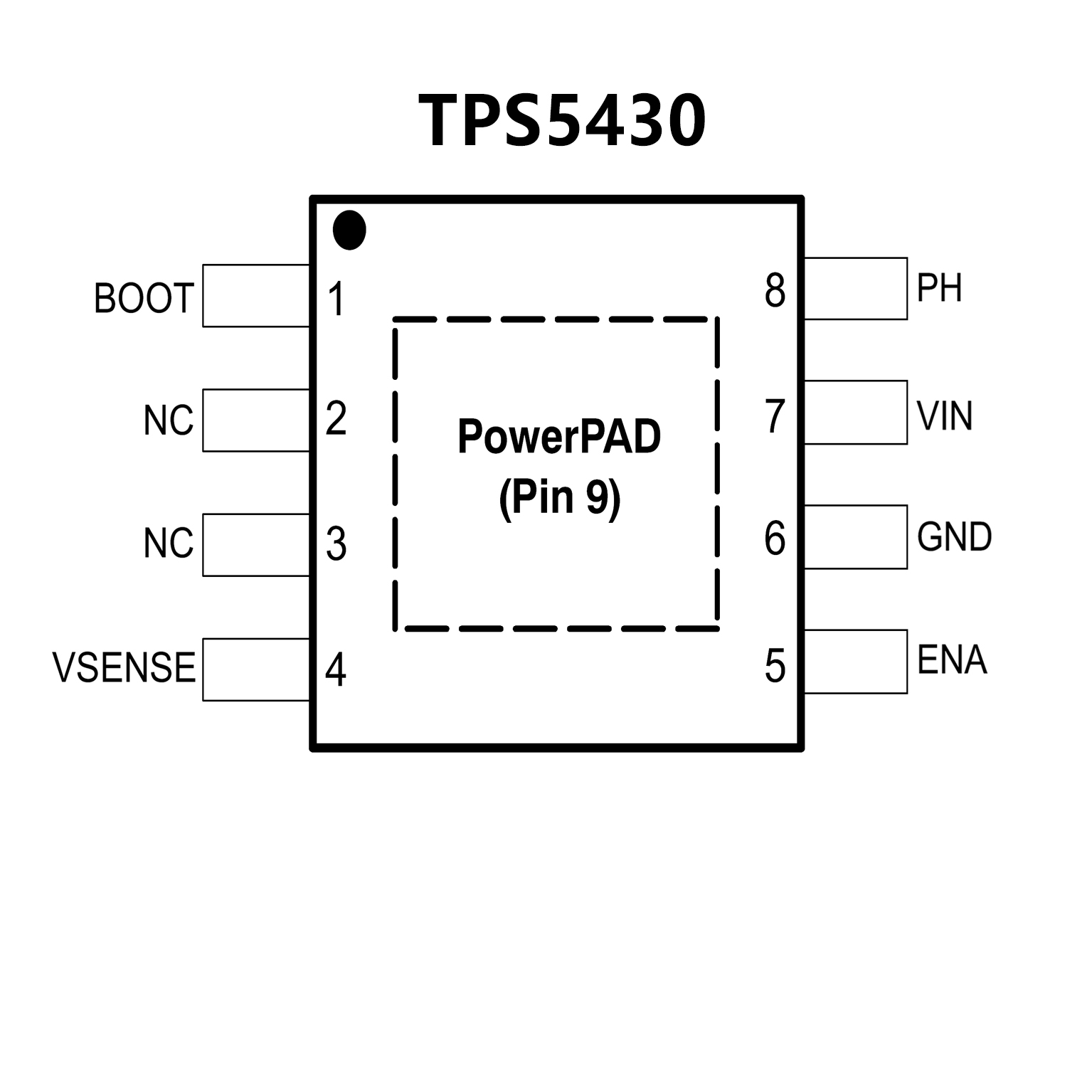

? Wide Input Voltage Range: 5.5 V to 36 V
? Up to 3-A Continuous (4-A Peak) Output Current
? High Efficiency up to 95% Enabled by 110-mW
Integrated MOSFET Switch
? Wide Output Voltage Range: Adjustable Down to
1.22 V with 1.5% Initial Accuracy
? Internal Compensation Minimizes External
Parts Count
? Fixed 500 kHz Switching Frequency for Small
Filter Size
? Improved Line Regulation and Transient Response
by Input Voltage Feed Forward
? System Protected by Over Current Limiting and
Thermal Shutdown
? –40°C to 125°C Operating Junction Temperature Range
? Available in Small Thermally Enhanced 8-Pin
SOIC PowerPAD? Package
