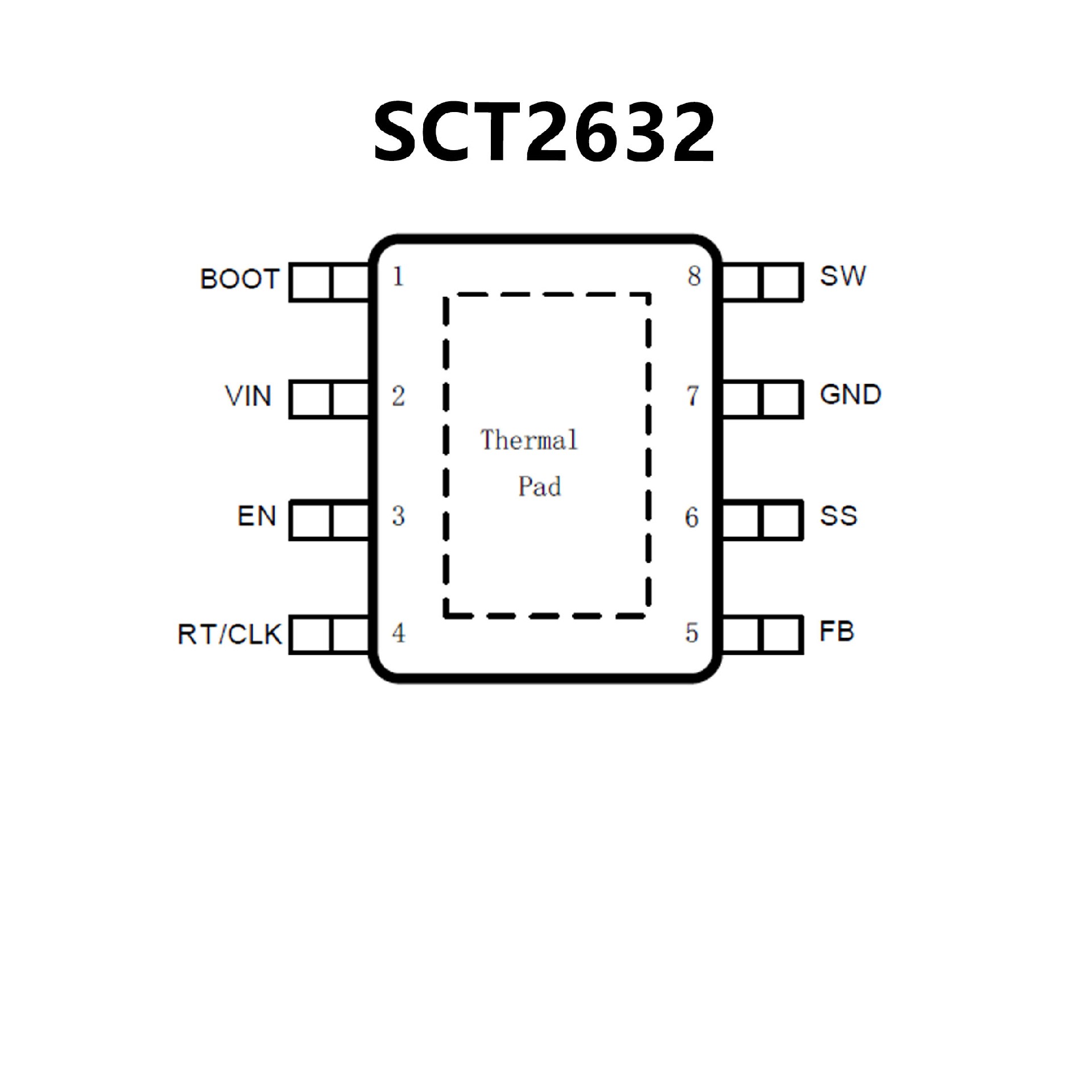

SCT2632.pdf? Wide Input Range: 4.2V-60V
? 3A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220m? High-Side MOSFET
? Low Quiescent Current: 100μA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? Adjustable Soft-start Time
? Internal compensation for Ease of Use
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

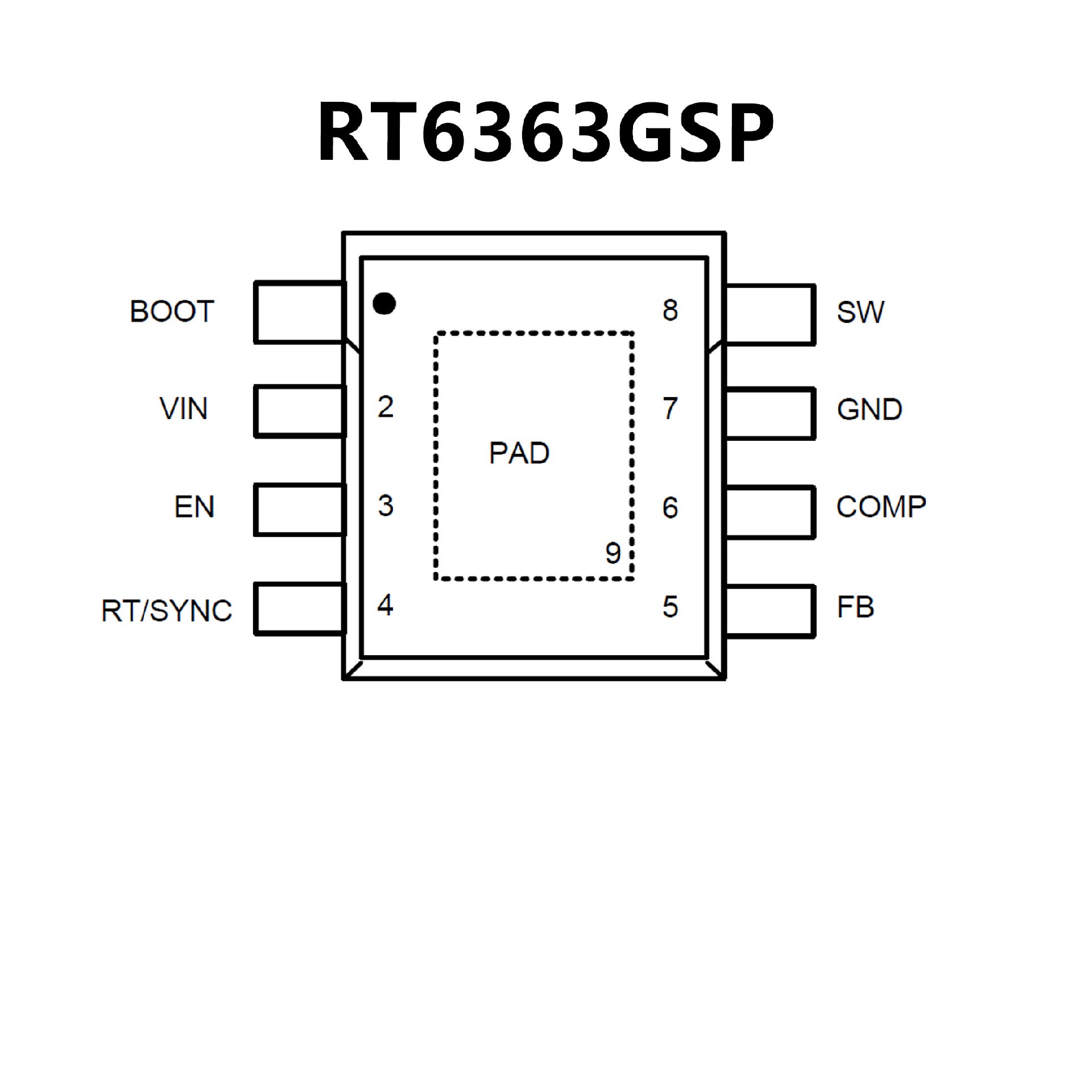

? Wide Input Voltage Range
? 4.5V to 60V
? 4V to 60V (Soft-start is finished)
? Wide Output Voltage Range : 0.8V to VIN
? 0.8V ±1% Reference Accuracy
? Peak Current Mode Control
? Integrated 80mΩ High-Side MOSFET
? Low Quiescent Current : 100μA
? Low Shutdown Current : 2.25μA
? Adjustable Switching : 100kHz to 2.5MHz
? Synchronizable Switching : 300kHz to 2.2MHz
? Power Saving Mode (PSM) at Light Load
? Low Dropout at Light Loads with Integrated
BootRecharge FET
? Externally Adjustable
Soft-Start by Part NumberOption
? Power Good Indication by Part Number Option
? Enable Control
? Adjustable UVLO Voltage and Hysteresis
? Built-In UVLO, UVP, OVP, OCP, OTP
