SCT2622.pdf? Wide Input Range: 4.2V-60V
? 2A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220m? High-Side MOSFET
? Low Quiescent Current: 100μA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? 4ms Internal Soft-start Time
? Internal compensation for Ease of Use
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? UV and OV Power Good Output
? Precision Enable Threshold for Programmable
InputVoltage Under-Voltage Lock Out
Protection (UVLO)Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection

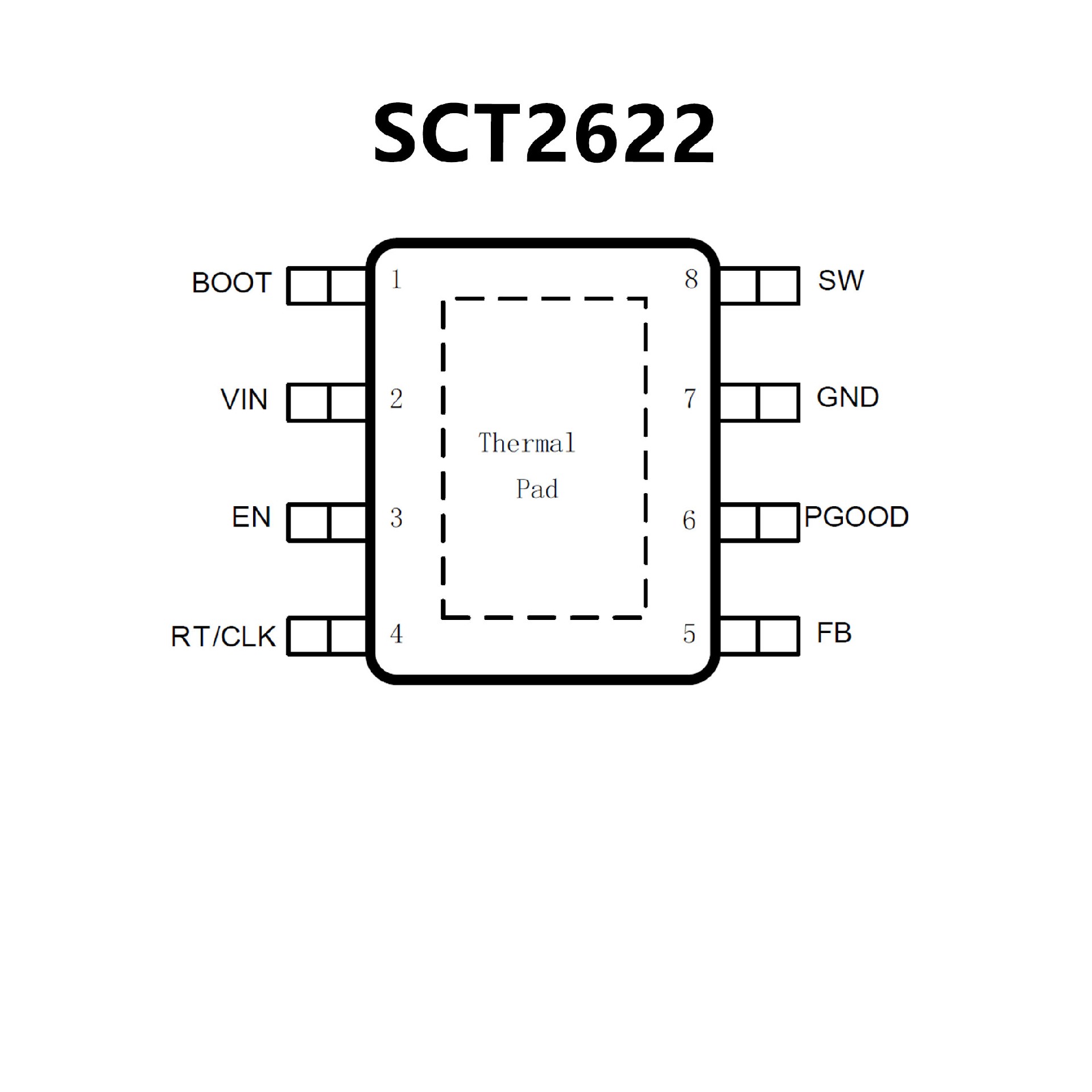

? Available in an ESOP-8 Package
? New product available: LM76003 60-V, 3.5-A, 2.2-
MHz synchronous converter
? 4.3-V to 60-V input range
? 3-A continuous output current
? Ultra-low 40-μA operating quiescent current
? 155-mΩ high-side MOSFET
? Current mode control
? Adjustable switching frequency from 200 kHz to
2.5 MHz
? Frequency synchronization to external clock
? Internal compensation for ease of use
? High duty cycle operation supported
? Precision enable input
? 1-μA shutdown current
? Thermal, overvoltage and short protection
? 8-pin HSOIC with PowerPAD? package
? Create a custom design using the LM76003 with
the WEBENCH? Power Designer
? Create a custom design using the LM16030 with
the WEBENCH? Power Designer
