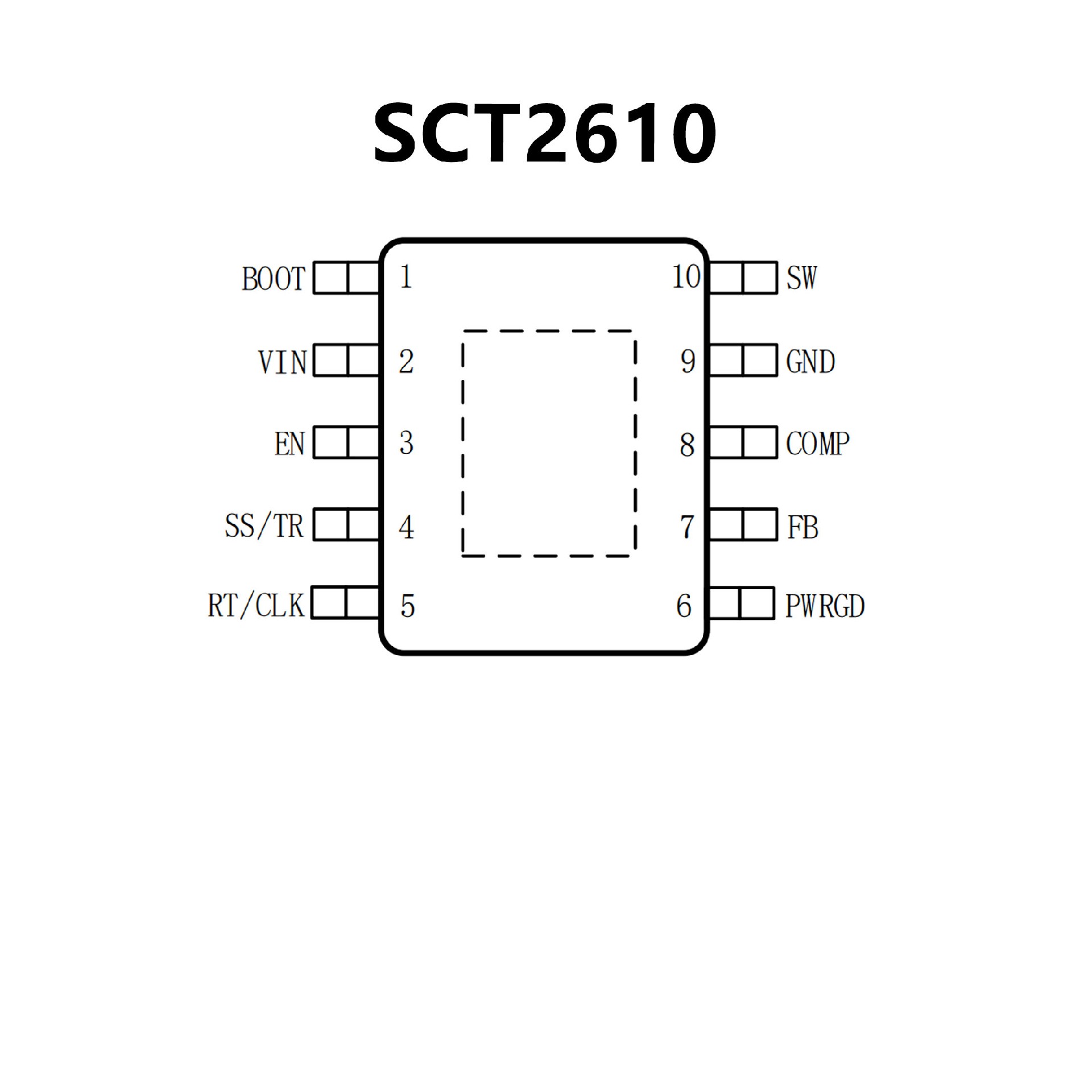

SCT2610.pdf? Wide Input Range: 3.8V-60V
? Up to 1.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220m? High-Side MOSFET
? Low Quiescent Current: 190μA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? Adjustable Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? UV and OV Power Good Output
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an EMSOP-10 Package

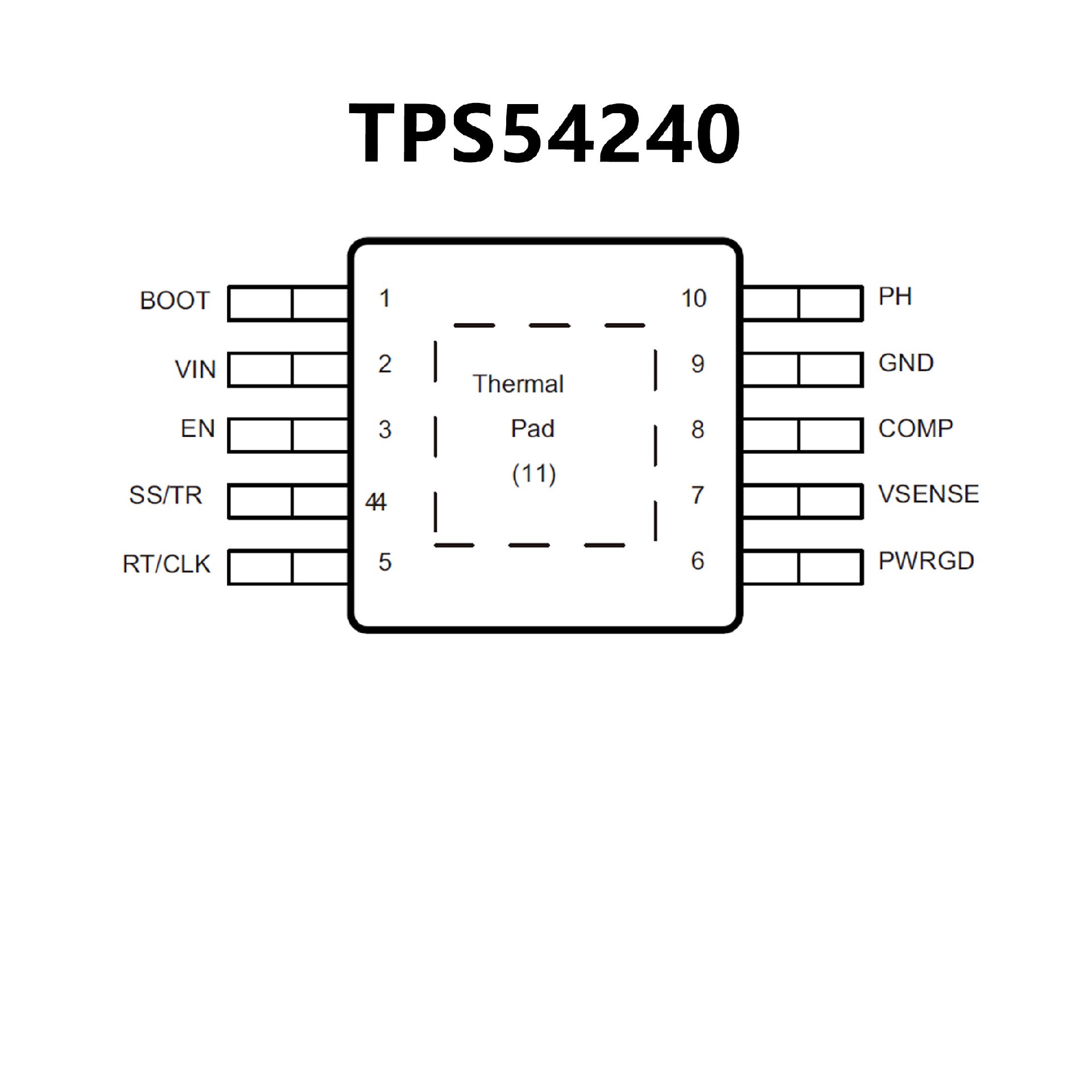

? 3.5-V to 42-V Input Voltage Range
? 200-m? High-Side MOSFET
? High Efficiency at Light Loads With a
Pulse Skipping Eco-Mode?
? 138-μA Operating Quiescent Current
? 1.3-μA Shutdown Current
? 100-kHz to 2.5-MHz Switching Frequency
? Synchronizes to External Clock
? Adjustable Slow Start and Sequencing
? UV and OV Power Good Output
? Adjustable UVLO Voltage and Hysteresis
? 0.8-V Internal Voltage Reference
? 10-Pin HVSSOP and 10-Pin 3-mm x 3-mm
VSON Packages with PowerPAD?
? Supported by WEBENCH? Software Tool
