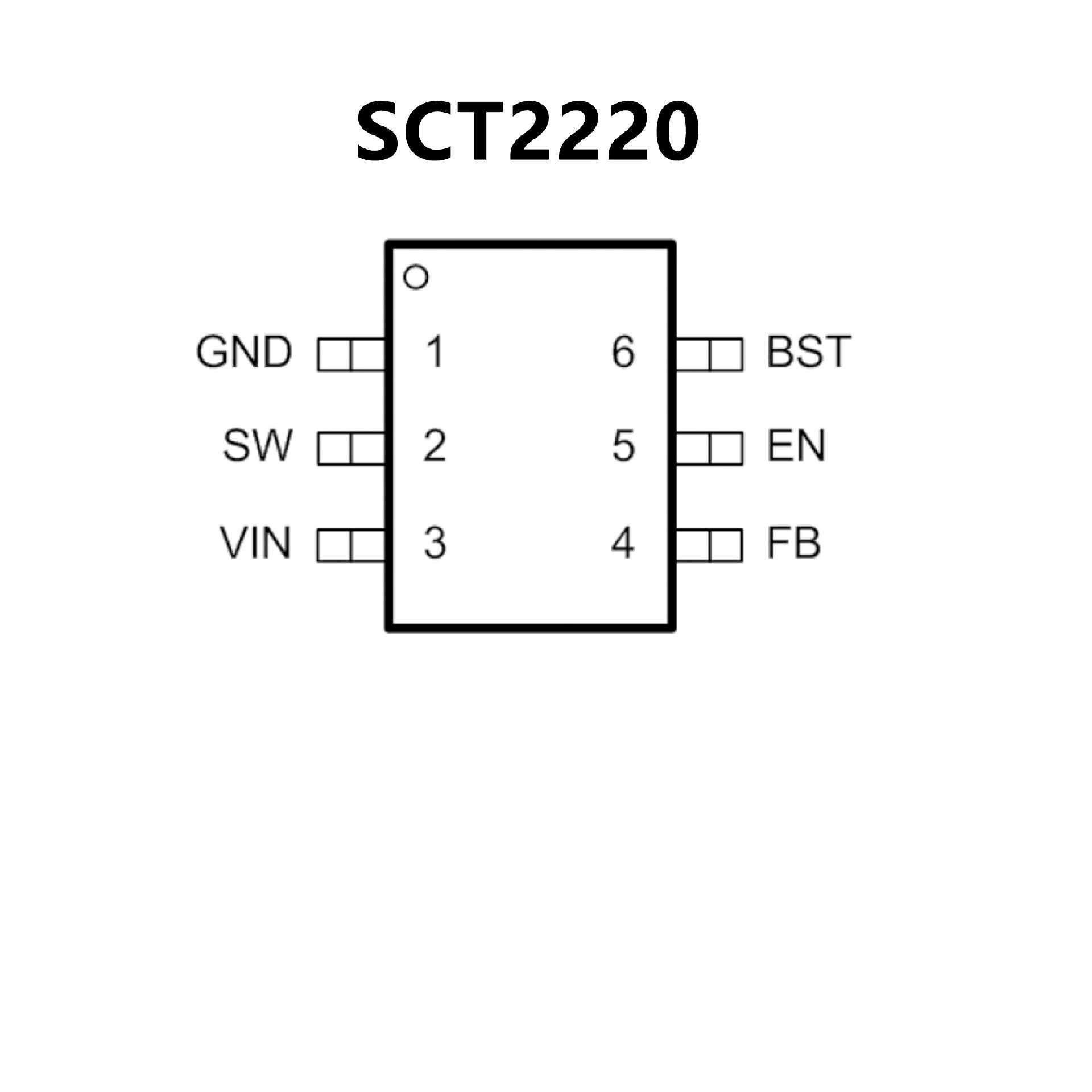

SCT2220.pdf? Wide Input Voltage: 4.2-17V
? 2A Continuous Output Current with
Integrated90mΩ/65mΩFETs
? Wide Output Voltage Range:0.8V-7V
? Quiescent Current 135μA
? Cycle-by-Cycle Current Limiting
? Internal 2.5ms Soft-Start
Limits the inrushcurrent
? Fixed 750kHz Switching Frequency
? Input Under-Voltage Lockout
? Power save mode at light load
? Over-Temperature Protection
? Available in a SOT563 and TSOT23 Package

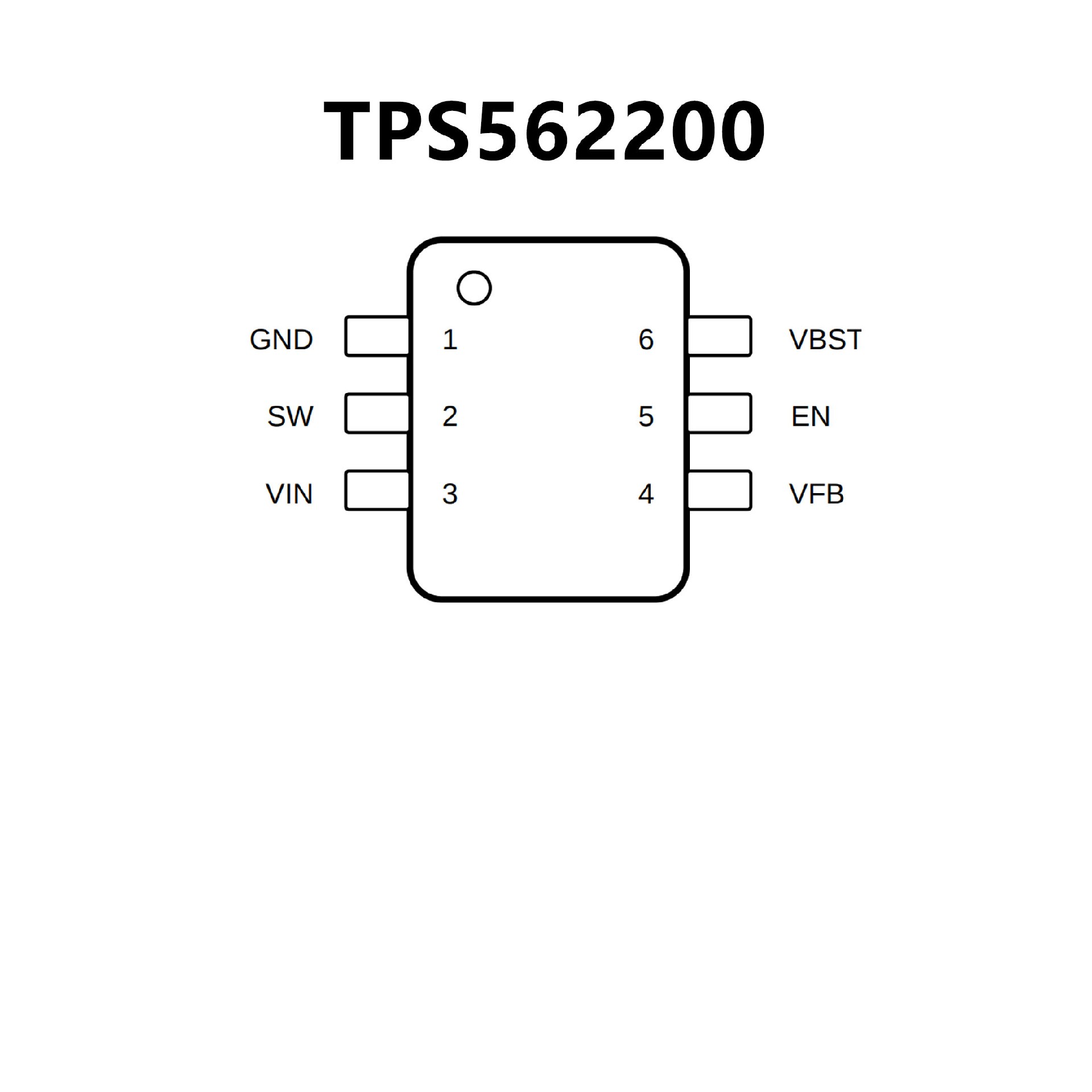

? TPS562200 - 2A converter with Integrated
122 mΩ and 72 mΩ FETs
? TPS563200 - 3A converter with Integrated 68 mΩ
and 39 mΩ FETs
? D-CAP2? Mode Control for Fast Transient
Response
? Input Voltage Range: 4.5 V to 17 V
? Output Voltage Range: 0.76 V to 7 V
? 650 kHz Switching Frequency
? Advanced Eco-mode? Pulse-skip
? Low Shutdown Current Less than 10 μA
? 1% Feedback Voltage Accuracy (25°C)
? Startup from Pre-Biased Output Voltage
? Cycle-By-Cycle Overcurrent Limit
? Hiccup-Mode Undervoltage Protection
? Non-latch OVP, UVLO and TSD Protections
? Fixed Soft Start: 1 ms
? Create a Custom Design with WEBENCH Tools
