5.5V, 1A, 2A, 3A Step Down Converter Family with 1% Accuracy, SCT2130 Replace TPS62823.
FEATURES

? Input Voltage Range: 2.8V-6V

? Up to 3A Continuous Output Current

? Low Shutdown Current: 0.7uA

? 0.6±1% Feedback Reference Voltage

? 2.1MHz Switching Frequency

? Integrated 25m? High-Side and 20mΩ Low-

   Side Power MOSFETs

? Adjustable output voltage from 0.6V to 5V

? Active output discharge

? Programmable Soft Start Time

? Power Good Indicator

? Integrated Protection Feature

- Cycle-by-cycle current limit

- Under-voltage Lockout

- HICCUP Over Current Protection

- Thermal Shutdown Protection:160°C

? QFN-8L 1.5mm*2mm Package

? Available in a Wettable Flank Package

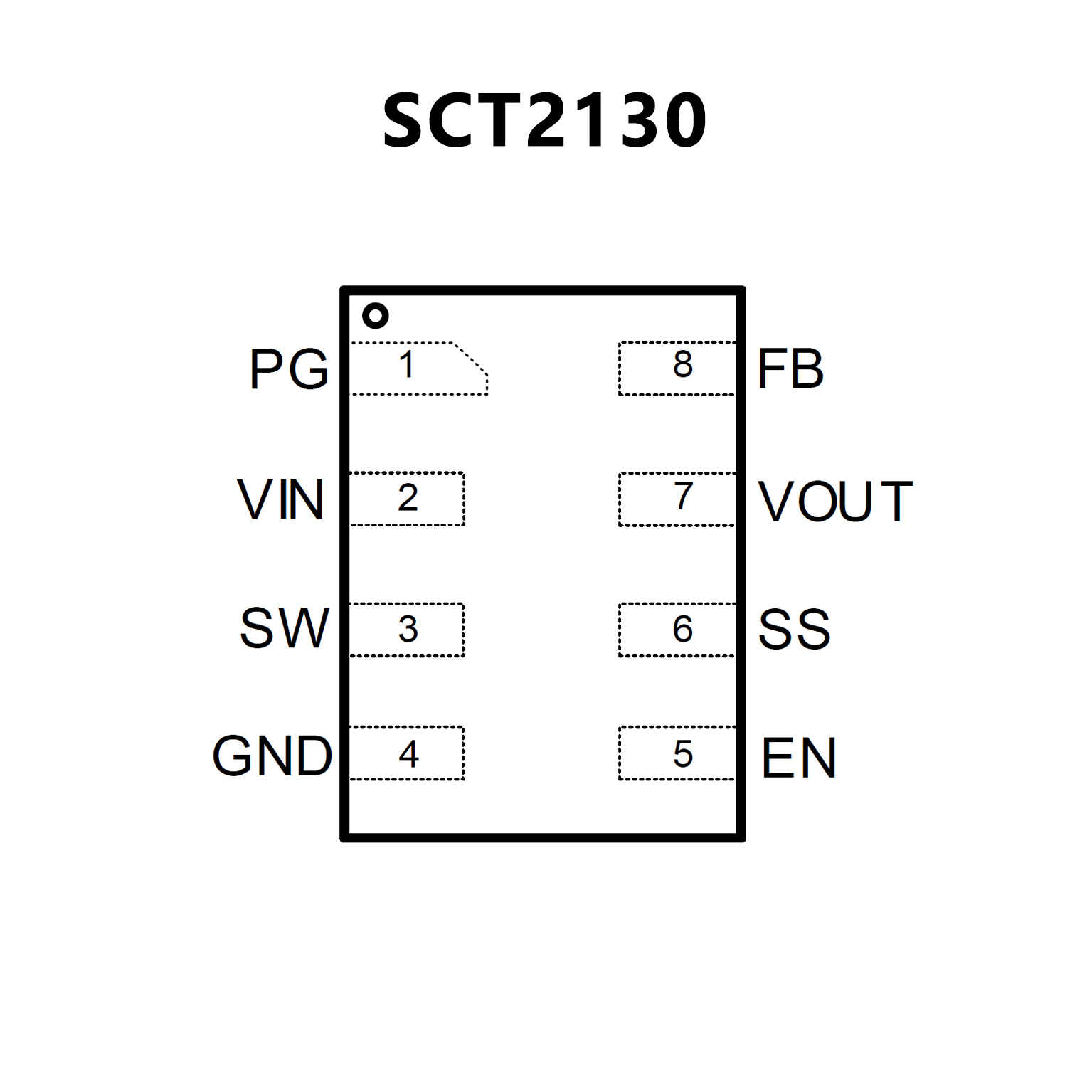

PIN CONFIGUTION
優勢替代
TPS62823 TPS62823.pdf

No.13244

FEATURES

? DCS-Control? topology

? 26-mΩ/25-mΩ internal power switches

  (TPS62823)

? Up to 3-A output current (TPS62823)

? Very low quiescent current of 4 μA

? Switching frequency of typically 2.2 MHz

? 1% feedback voltage accuracy (full temp. range)

? Enable (EN) and power good (PG)

? Adjustable output voltage from 0.6 V to 4 V

? 100% duty-cycle mode

? Internal soft-start circuitry

? Seamless power save mode transition

? Undervoltage lockout

? Active output discharge

? Cycle-by-cycle current limit

? HICCUP short-circuit protection

? Over temperature protection

? CISPR11 class B compliant

? Create a custom design using the TPS62822 with

  the WEBENCH? Power Designer

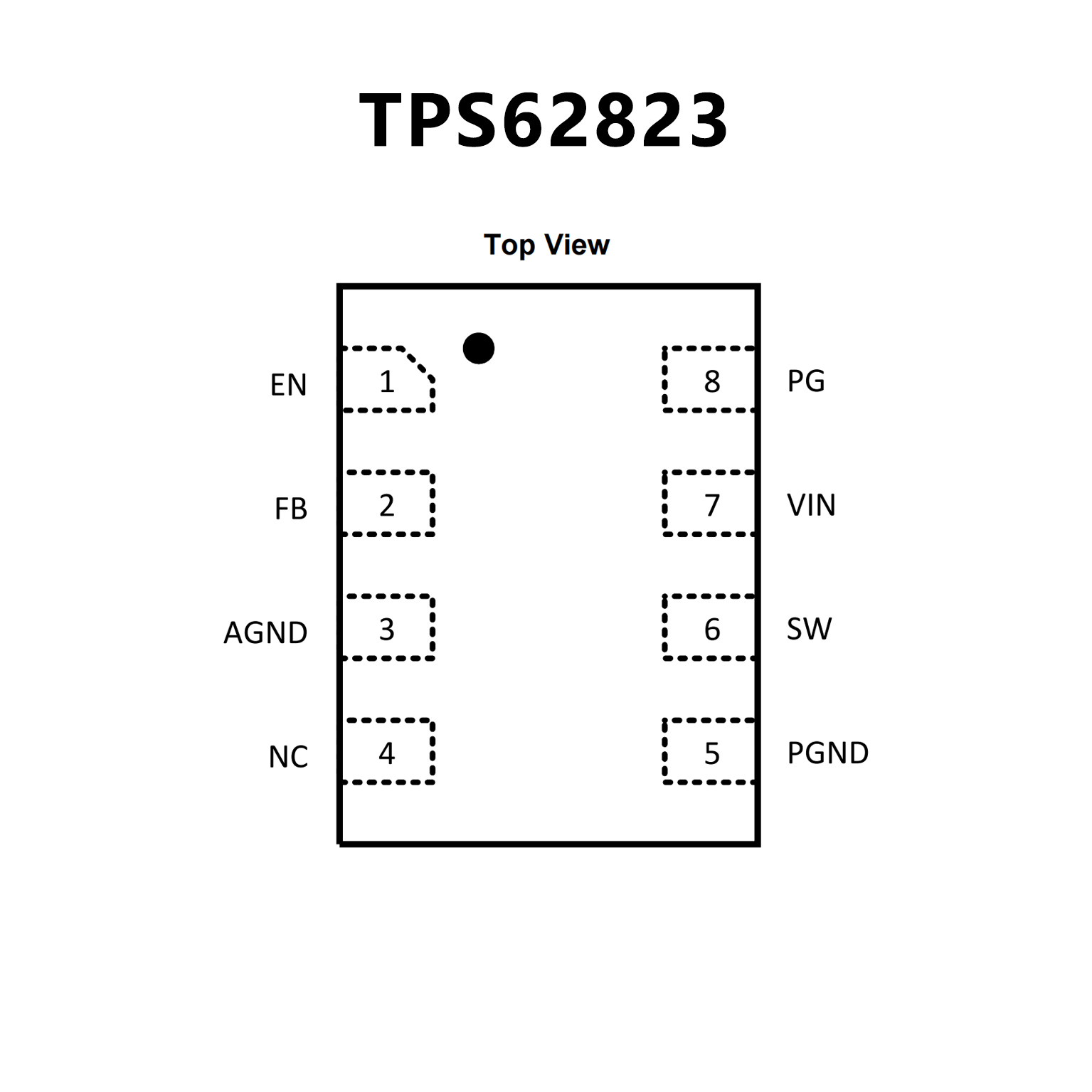

PIN CONFIGUTION
