Integrated Driver and MOSFET, NDB302RA Replace AOZ5613QI.
NDB302RA
NDB302RA.pdf
NDB302RA.pdfFEATURES
? Capable of Average Currents up to 65 A.
? Capable of Switching at Frequencies up to 1 MHz.
? Compatible with 3.3 V or 5 V PWM Input.
? Responds Properly to 3-level PWM Inputs.
? Option for Zero Cross Detection with 3-level PWM.
? Internal Bootstrap Diode.
? Undervoltage Lockout.
? Supports Intel? Power State 4.
? Thermal Warning output.
? Thermal Shutdown.

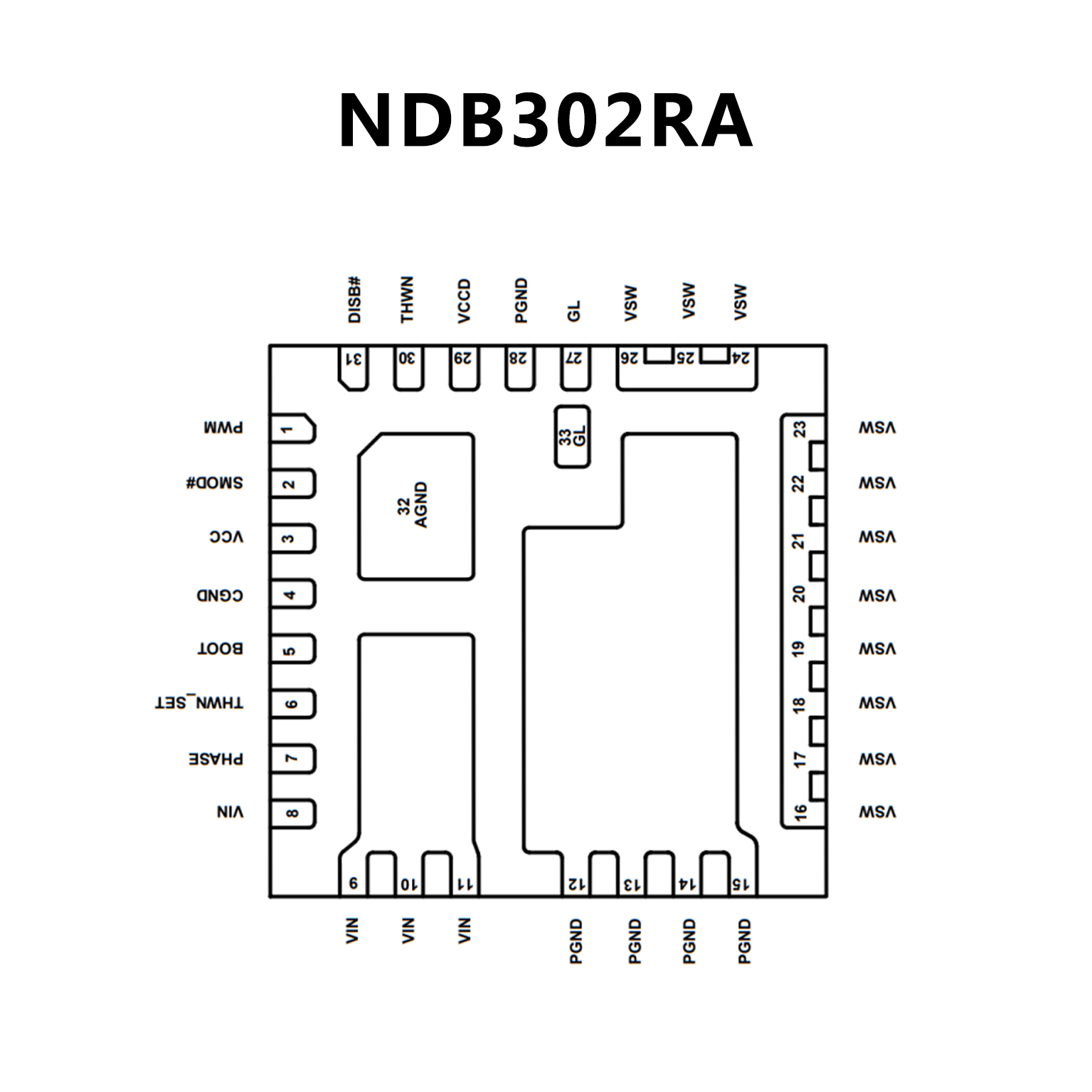

PIN CONFIGUTION
優勢替代
FEATURES
? 4.5V to 20V power supply range
? 4.5V to 5.5V driver supply range
? 65A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10us on pulse
? Up to 2MHz switching operation
? 5V PWM/Tri-State input compatible
? Under-voltage lockout protection
? SMOD# control for diode emulation/CCM operation
? Low Profile 5x5 QFN-31L package

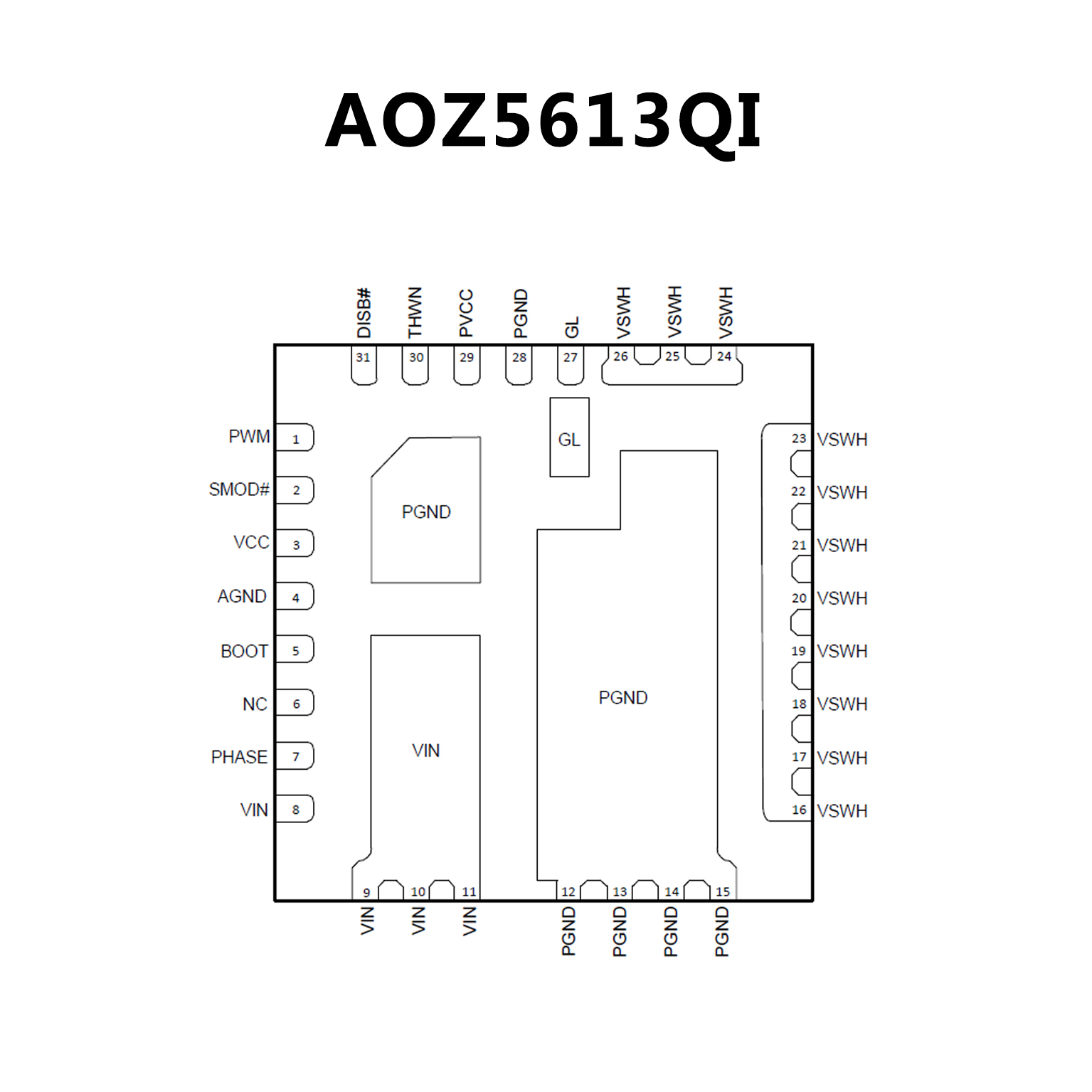

PIN CONFIGUTION
