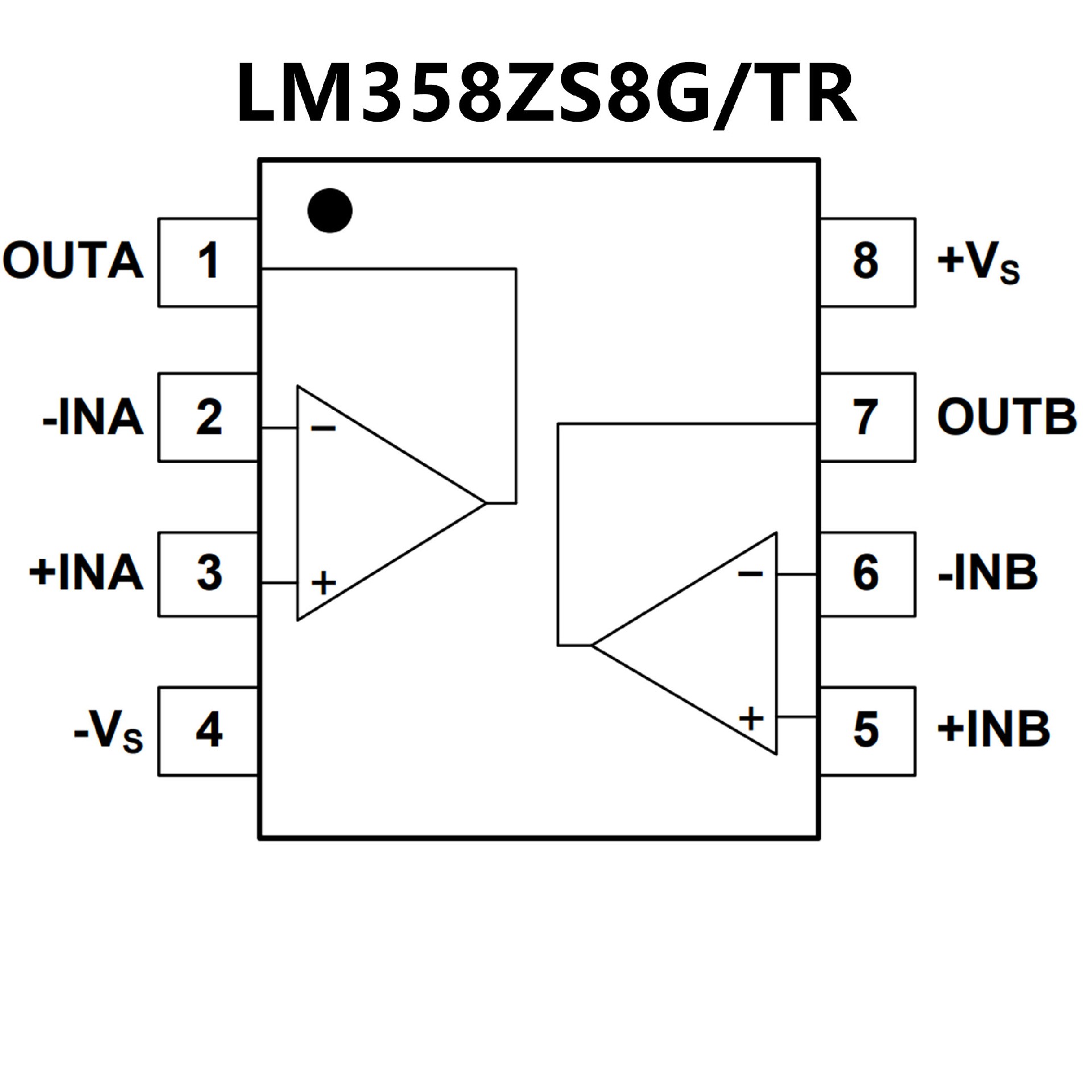

LM358ZS8G/TR.pdf? Wide Supply Ranges Single Supply:
3V to 32V Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range
Includes Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 20pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to
MaximumRated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? 0℃ to +70℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
? Operable with a single power supply
? Wide operating supply voltage range
? Input and output are operable GND sense
? Low supply current
? High open loop voltage gain
? Wide temperature range
