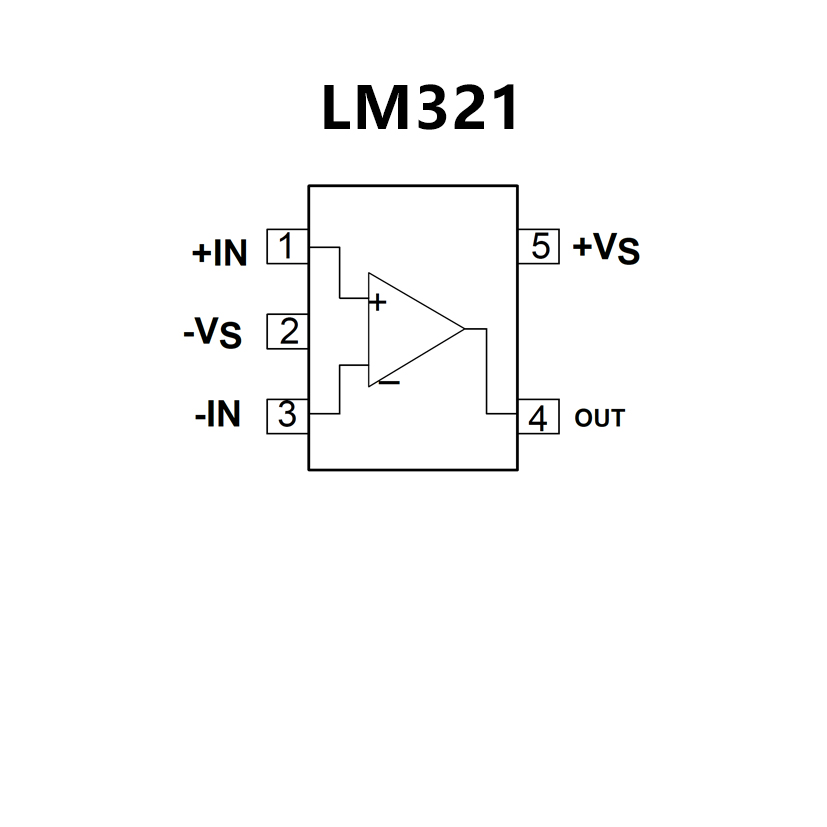

LM321.pdf? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 240μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range
IncludesGround, Allowing
Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 20pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal
to Maximum-Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? 0℃ to +70℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

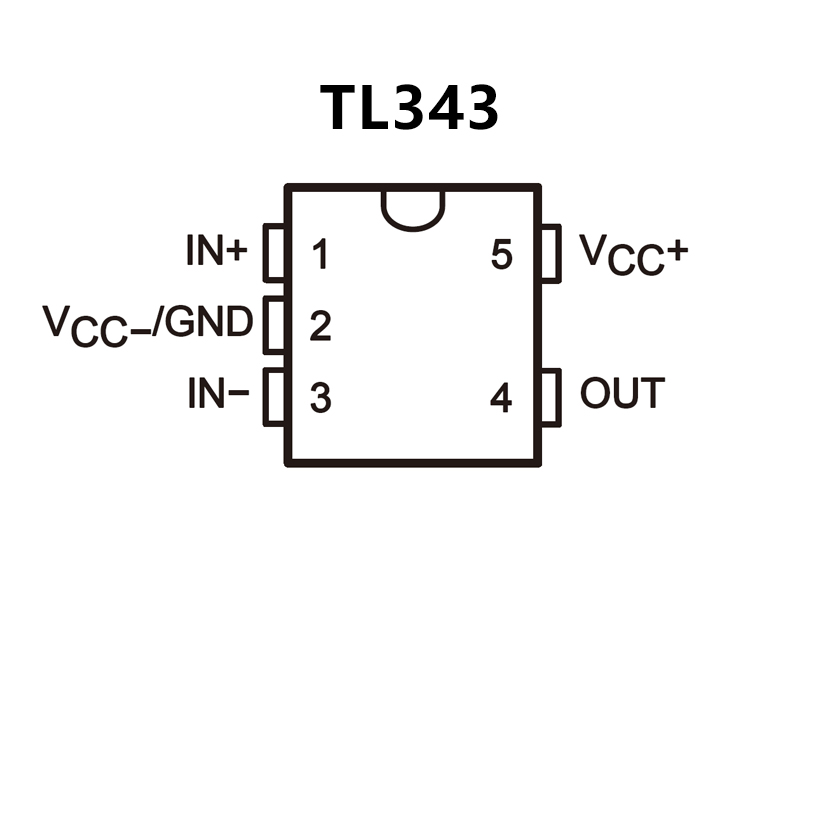

? Wide Range of Supply Voltages, Single
Supply 3 V to 30 V, or Dual Supplies
? Class AB Output Stage
? True Differential-Input Stage
? Low Input Bias Current
? Internal Frequency Compensation
? Short-Circuit Protection
