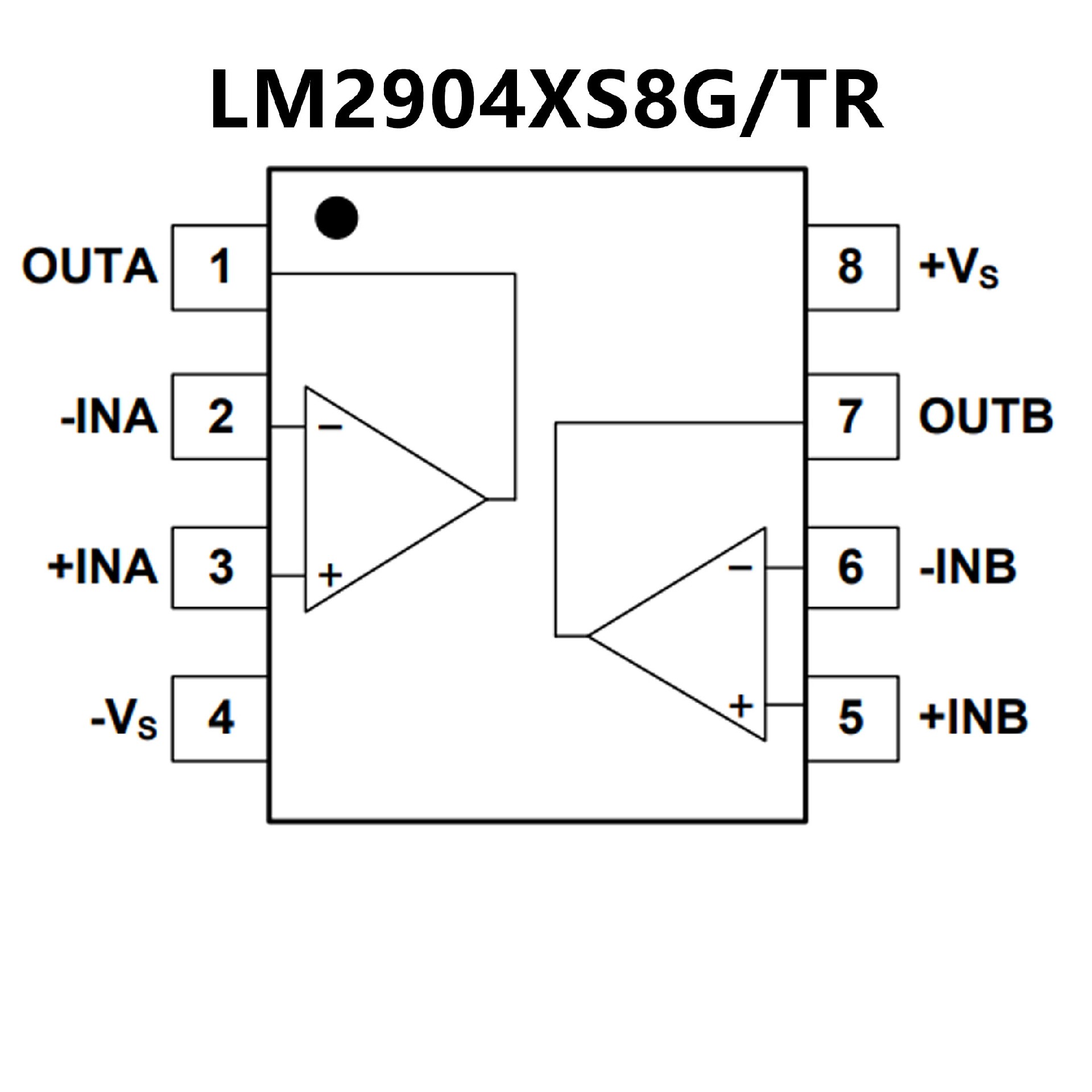

LM2904XS8G/TR.pdf? Wide Supply RangesSingle Supply:
3V to 32VDual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to
MaximumRated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 and TSSOP-8Packages

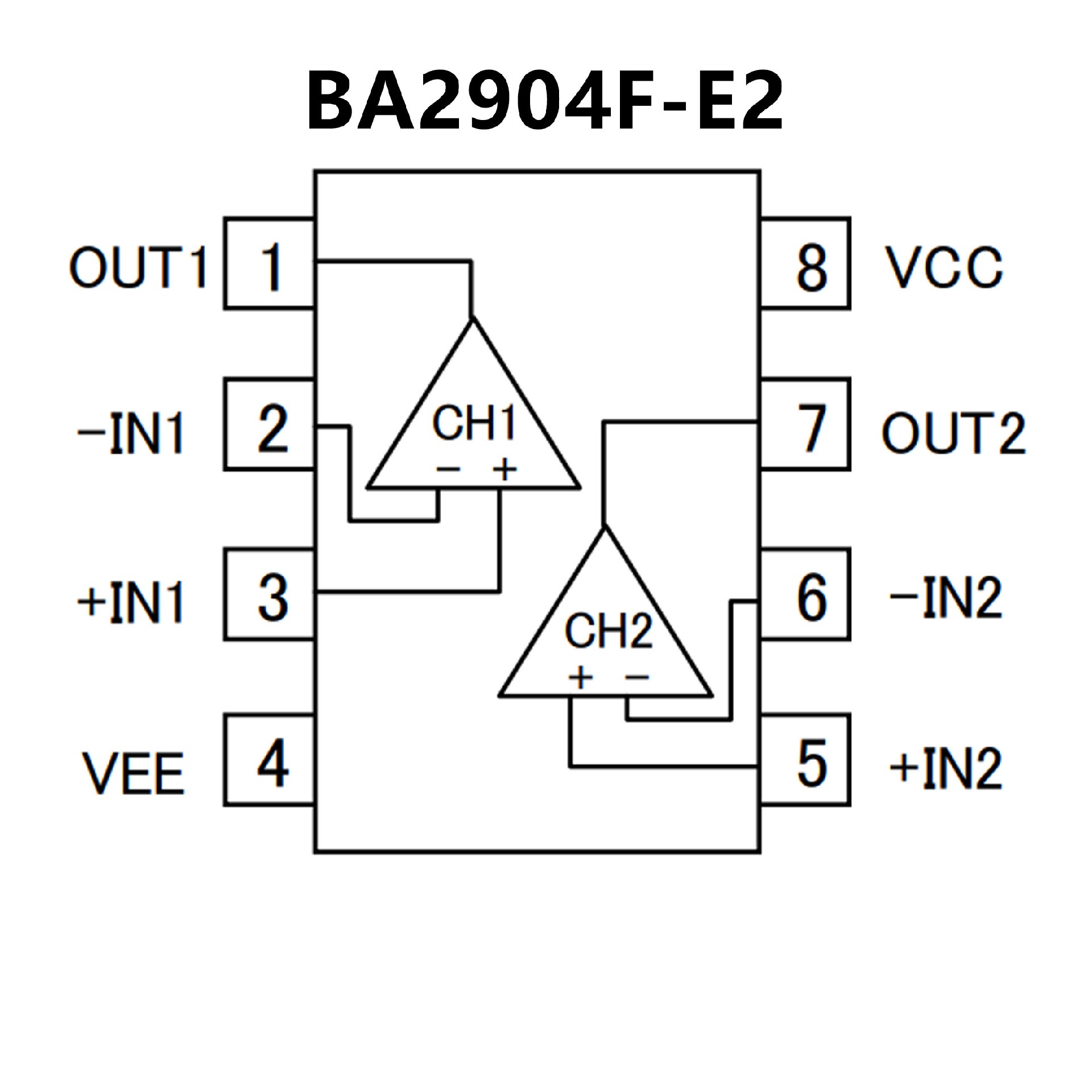

? Operable with a single power supply
? Wide operating supply voltage range
? Input and output are operable GND sense
? Low supply current
? High open loop voltage gain
? Wide temperature range
