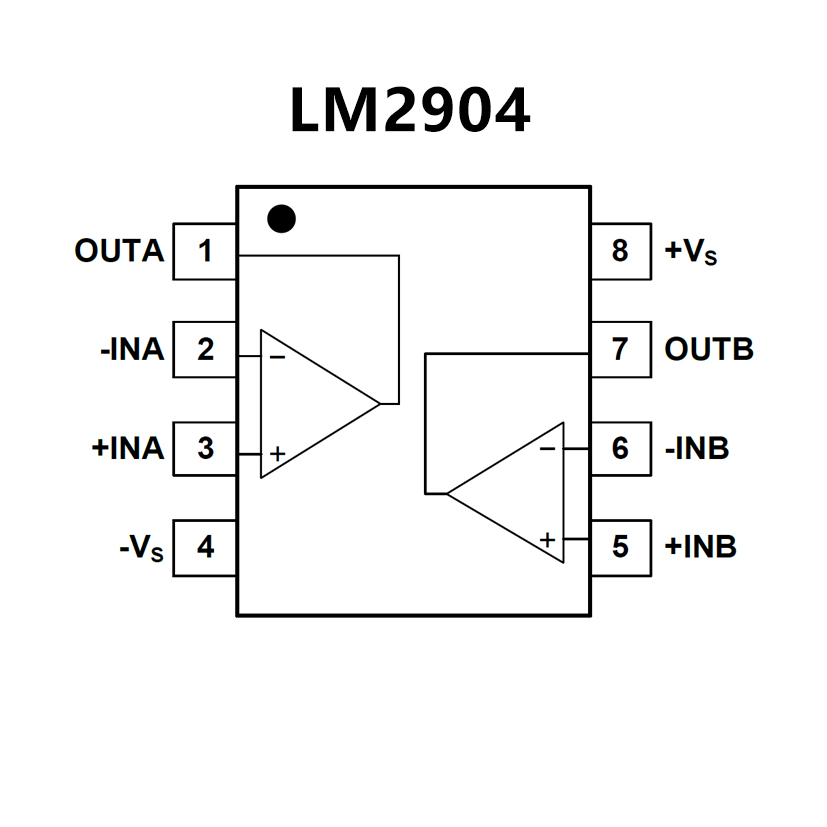

LM2904.pdf? Wide Power Supply Voltage Range:
? Single Supply: 3V to 36V
? Dual Supplies: ±1.5V to ±18V
? Very Low Supply Current Drain
? LM2904 500μA – Independent of Supply Voltage
? LM2902 700μA – Independent of Supply Voltage
? Low Input Bias Current: 20nA
? Low Input Offset Voltage:
? A Version: 1mV Typ
? Non-A Version: 2mV Typ
? Large DC Voltage Gain: 100dB
? Wide Bandwidth (Unity Gain):
700kHz (Temperature
Compensated)
? Internally Compensated with Unity Gain
? Input Common-Mode Voltage
Range Includes Ground
? Differential Input Voltage Range
Equal to the Power Supply
Voltage
? Large Output Voltage Swing:
0V to VCC -1.5V
? SO-8, MSOP-8, TSSOP-8 (Duals)
and SO-14, TSSOP-14
(Quads) Packages Available
? Totally Lead-Free & Fully RoHS
Compliant (Notes 1 & 2)
? Halogen and Antimony Free.
“Green” Device (Note 3)
? An Automotive-Compliant Part is
Available Under Separate

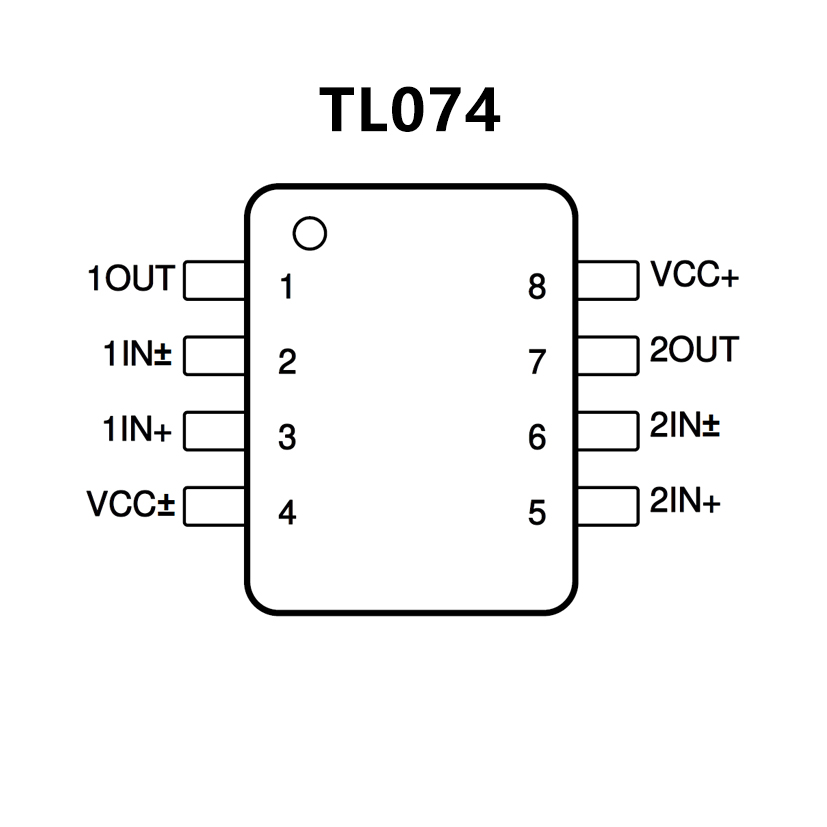

? High slew rate: 20 V/μs (TL07xH, typ)
? Low offset voltage: 1 mV (TL07xH, typ)
? Low offset voltage drift: 2 μV/°C
? Low power consumption: 940 μA/ch (TL07xH, typ)
? Wide common-mode and differential
voltage ranges
Common-mode input voltage range
includes VCC+
? Low input bias and offset currents
? Low noise:
Vn = 18 nV/√Hz (typ) at f = 1 kHz
? Output short-circuit protection
? Low total harmonic distortion: 0.003% (typ)
? Wide supply voltage:
±2.25 V to ±20 V, 4.5 V to 40 V
