Power Module for Battery Pack, GS95B0CS-R Replace CSD87501L.
GS95B0CS-R
GS95B0CS-R.pdf
GS95B0CS-R.pdfFEATURES
? Input Voltage up to 30V
? MOSFET Turn on Resistor RSS(ON)
=7.8mohm(Max)@Vgs=10V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=14A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

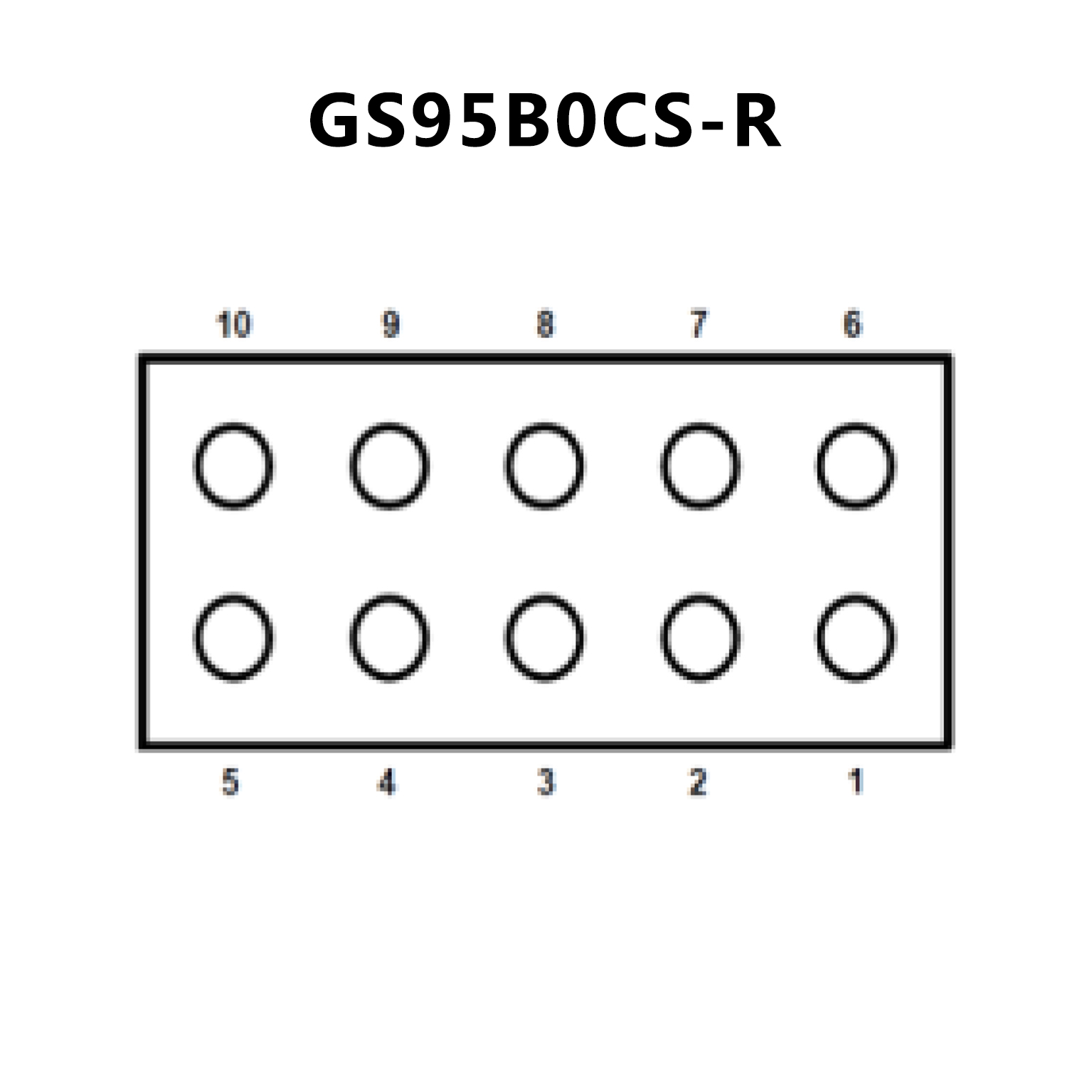

PIN CONFIGUTION
優勢替代
FEATURES
? 低導通電阻
? 3.37mm × 1.47mm 的小尺寸
? 超薄 – 高 0.2mm
? 無鉛
? 符合 RoHS
? 無鹵素
? 柵極 ESD 保護

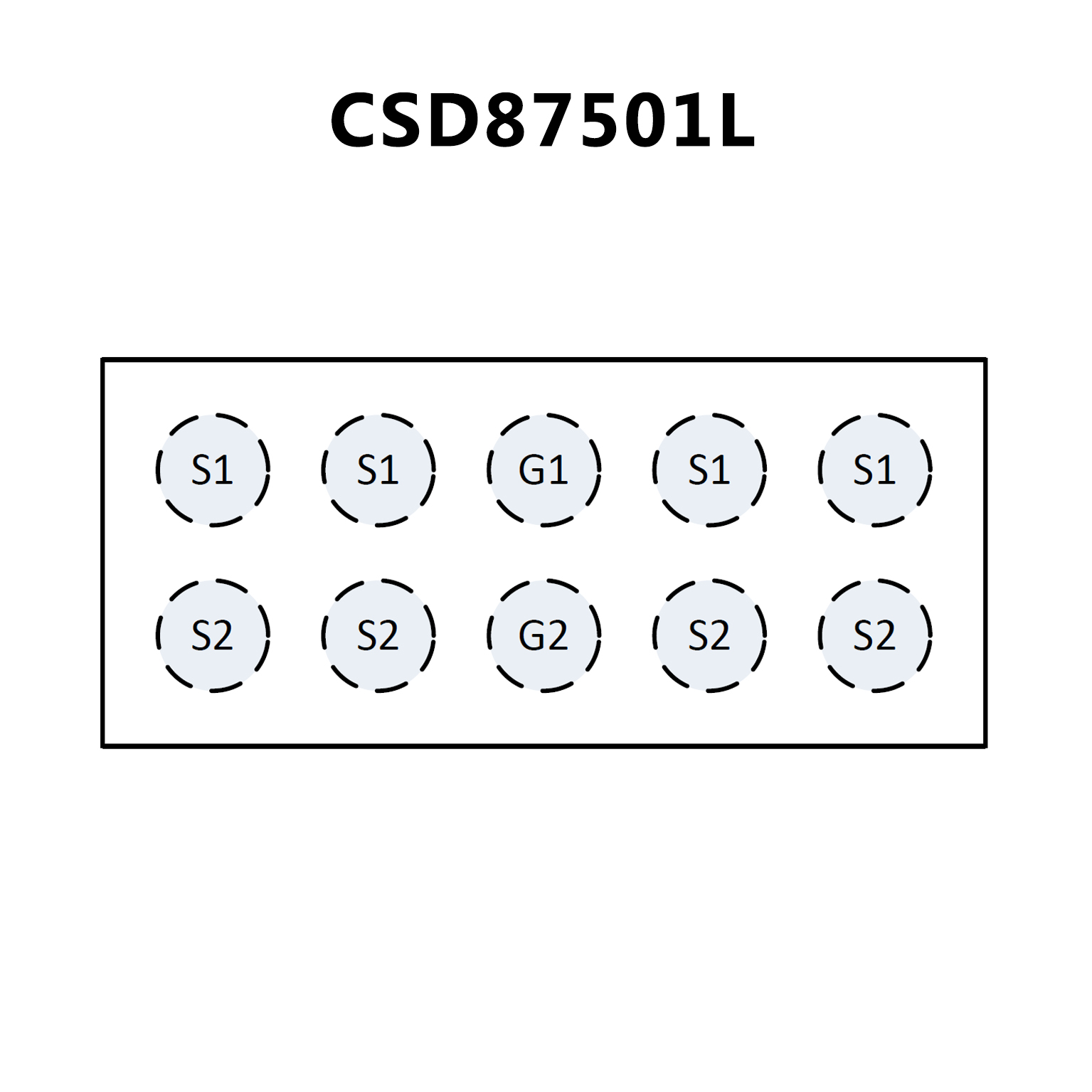

PIN CONFIGUTION
