BL9195.pdf? Ultra-Fast Response in Line/Load
Transient
? Low Dropout:210mV@300mA
? Wide Operating Voltage Range:2V to 6V
? Wide Output Voltage Range:1.2V to 5V
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1?F Output Capacitor Required forStability
? High Power Supply Rejection Ratio
? Custom Voltage Available

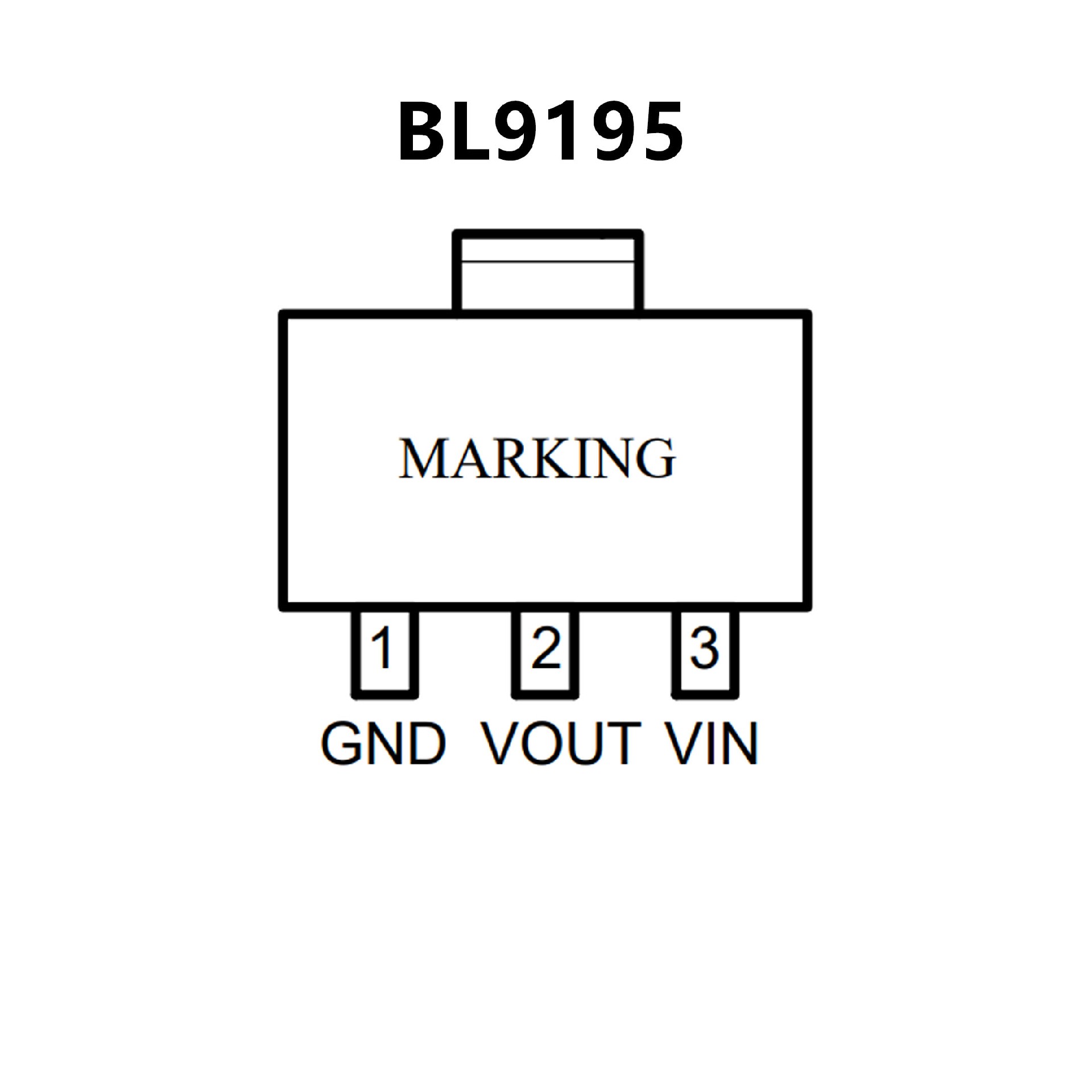

? Available in 3-Lead SOT23, SOT89 and
SOT223 Package
? Operating Voltages Range: +2.5V to +9.0V
? Output Voltages Range: +1.5V to +5.0V with 100mV
Increment
? Maximum Output Current: 300mA
? Low Dropout: 120mV@100mA (VOUT≥2.0V)
? ±2% Output Voltage Accuracy
? High Ripple Rejection: 70dB
? Output Current Limit Protection (600mA)
? Short Circuit Protection (300mA)
? Thermal Overload Shutdown Protection
? Low ESR Capacitor Compatible
? RoHS Compliant and 100% Lead (Pb)
Free and Green
(Halogen Free with Commercial Standard)
