1 kV RMS Quad-Channel Digital Isolators, BL7141 Replace ADuM7441.
BL7141
BL7141.pdf
BL7141.pdfFEATURES
? 100Mbps 信號傳輸速率
? 強大的隔離性能
±100kV/μs CMTI（典型值）
5kVRMS 隔離耐壓
>50 年的隔離柵壽命
高達 10kV 的抗浪涌能力
? 寬電源電壓范圍：2.5V 至 5.5V
? 2.5V 至 5.5V 電平轉(zhuǎn)換
? 寬溫度范圍：-40℃ to 125℃
? 默認輸出高電平（H）和低電平（L）選項
? 低傳播延遲：11ns（典型值，5V 供電）
? 低脈寬失真：3ns

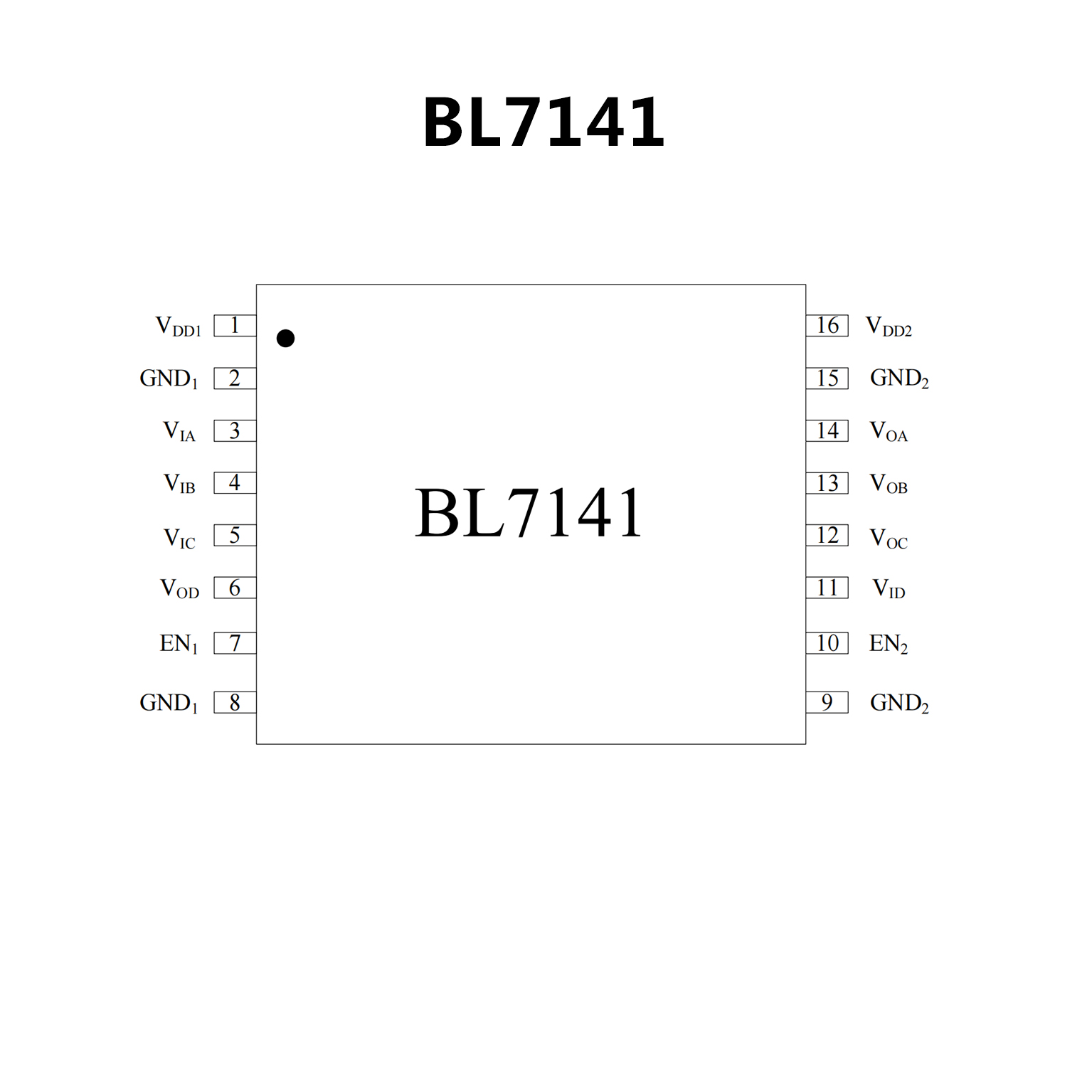

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Small, 16-lead QSOP
? 1000 V rms isolation rating
? Safety and regulatory approvals
UL recognition
UL 1577: 1000 V rms for 1 minute
? Low power operation
5 V operation
2.25 mA per channel maximum at 0 Mbps to 1 Mbps
11.5 mA per channel maximum at 25 Mbps
3.3 V operation
1.5 mA per channel maximum at 0 Mbps to 1 Mbps
8.25 mA per channel maximum at 25 Mbps
? Bidirectional communication
? Up to 25 Mbps data rate (NRZ)
? 3 V/5 V level translation
? High temperature operation: 105°C
? High common-mode transient immunity: >15 kV/μs

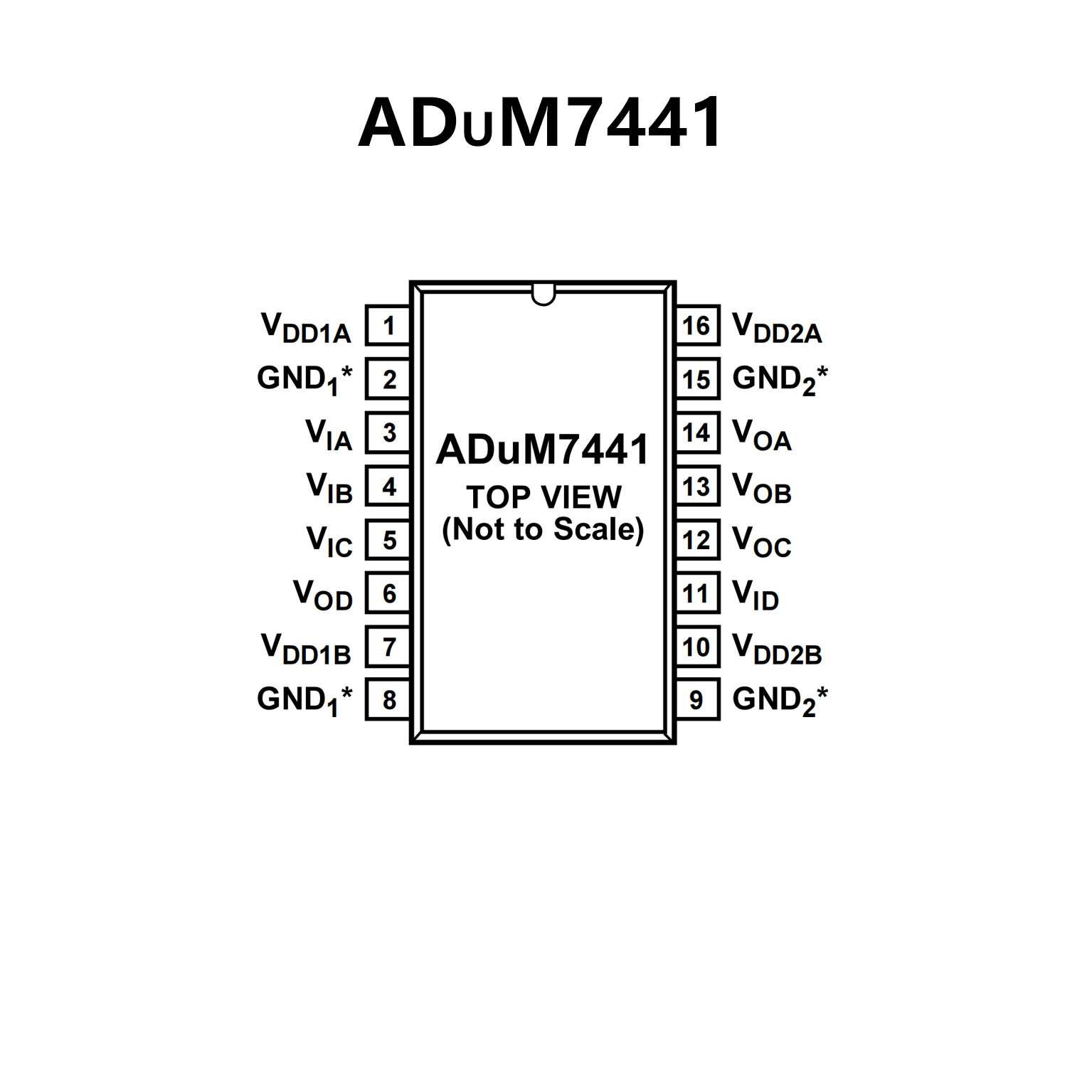

PIN CONFIGUTION
