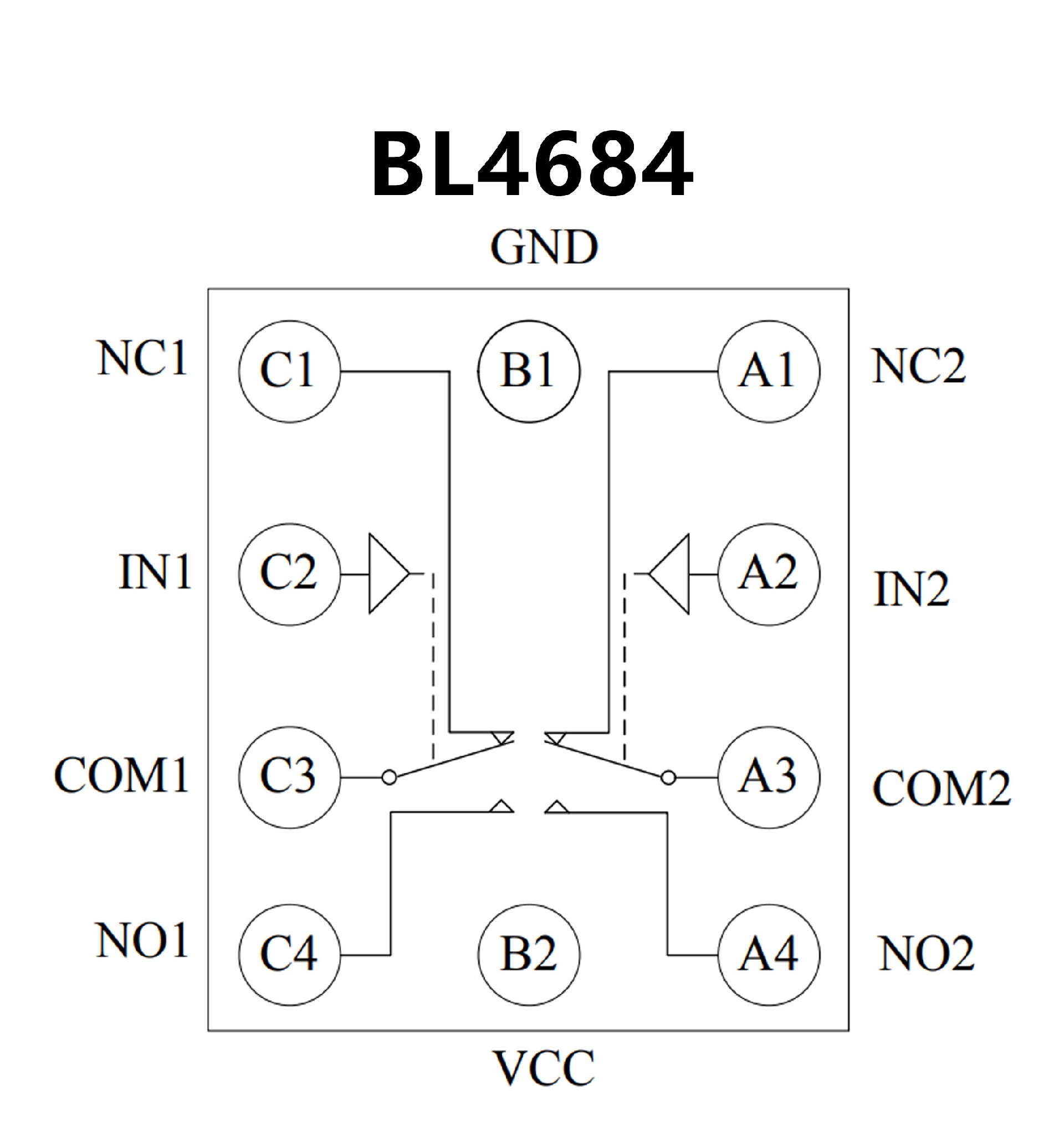

BL4684.pdf? Wide Power Supply Range:1.65V to 5.5V
? Low On-Resistance: RON(NC) = 0.4Ω
(VCC=2.7V) RON(NO) = 0.5Ω(VCC=2.7V)
? Low On-Resistance Flatness: RONF(NC) = 0.15Ω max
(VCC=2.7V) RONF(NO) = 0.25Ω max (VCC=2.7V)
? Rail-to-Rail Signal Range
? High Off-Isolation: -60dB (f=100 kHz)
? Crosstalk Rejection: -67dB
? Low Total Harmonic Distortion: 0.05%
? Lead(Pb) Free CSP-10 Packaging

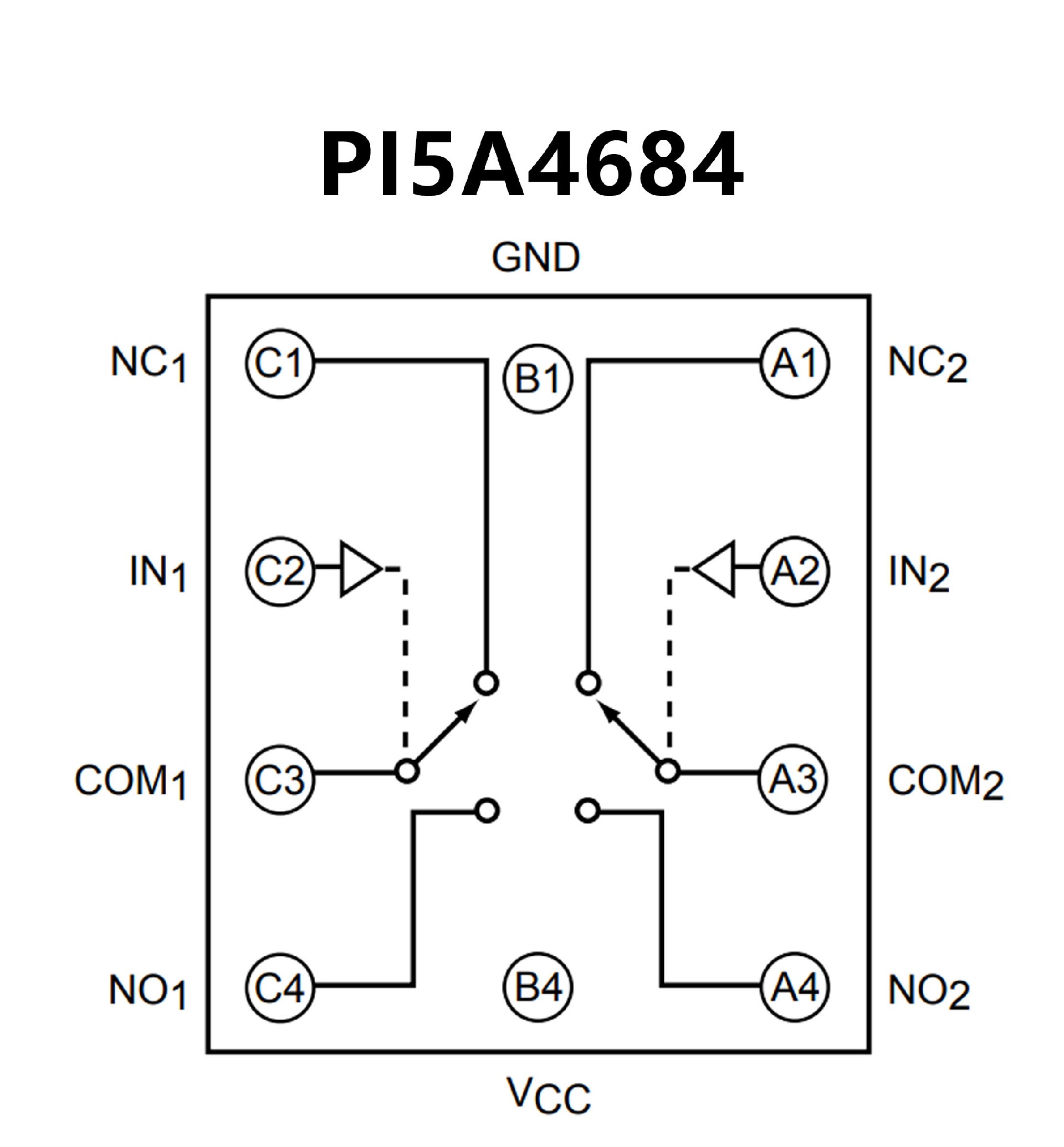

? CMOS Technology for Bus and Analog Applications
? Low On-Resistance: 0.5?.
? Wide VCC Range: 1.65V to 5.5V
? Rail-to-Rail Signal Range
? Control Input Overvoltage Tolerance: 5.5V min.
? High Off Isolation: -42dB
? Crosstalk Rejection Reduces Signal Distortion: -70dB
? Low THD (0.05% @ VCC = 2.7V)
? Break-Before-Make Switching
? Extended Industrial Temperature Range: –40°C to 85°C
? Packaging (Pb-free & Green):
10-ball Chip Scale Packaging (CSP)
