BL24SA64
BL24SA64.pdf
BL24SA64.pdfFEATURES
? Compatible with all I2C bidirectional datatransfer protocol
? Memory array:
64 Kbits (8 Kbytes) of EEPROM
Page size: 32 bytes
? Single supply voltage and high speed:
1 MHz （1.7V）Random and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Software data Protection
? Slave Address Configurable
? Schmitt Trigger, Filtered Inputs for NoiseSuppression
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
HBM 8000V
? WLCSP4 Package

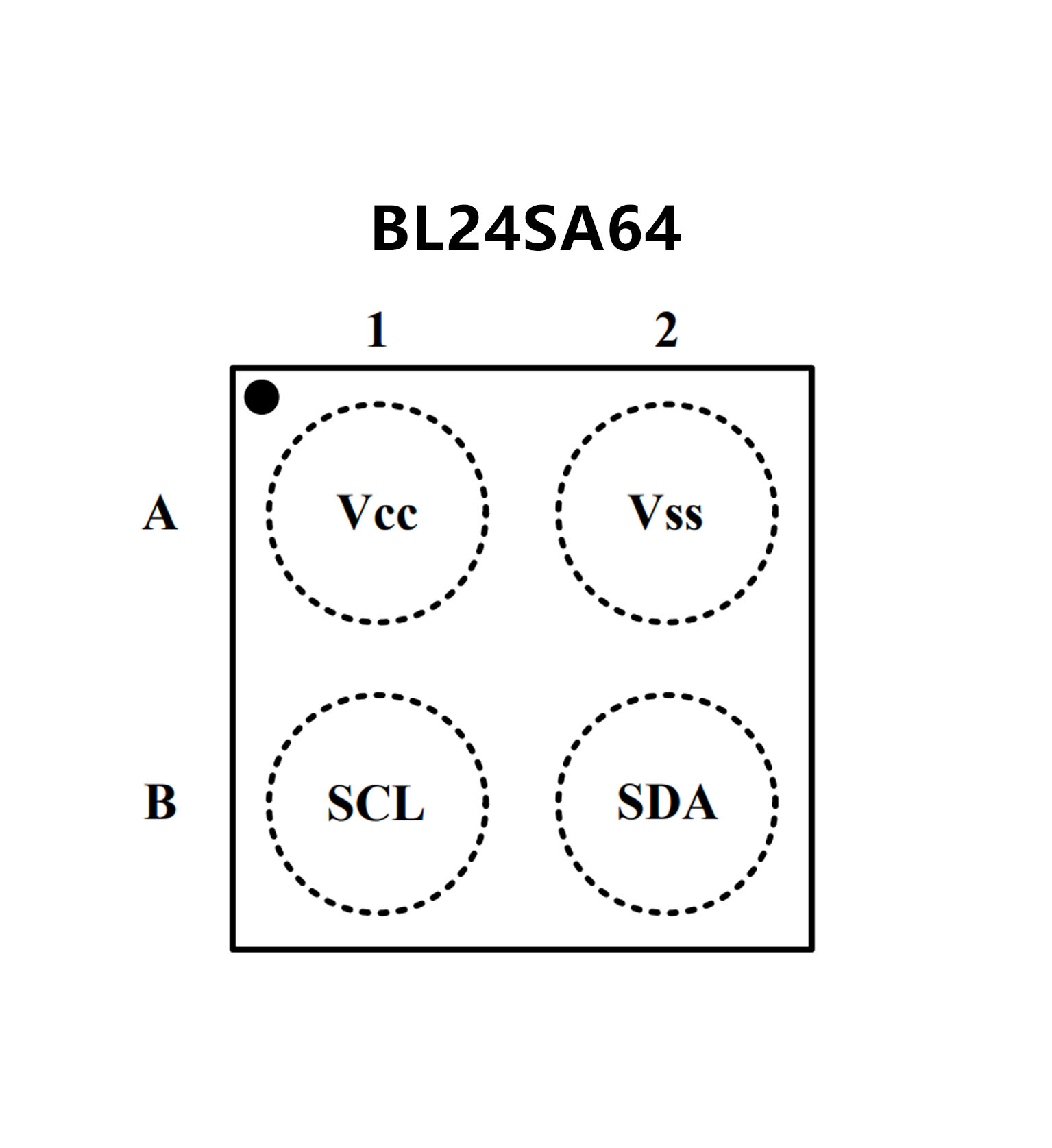

PIN CONFIGUTION
