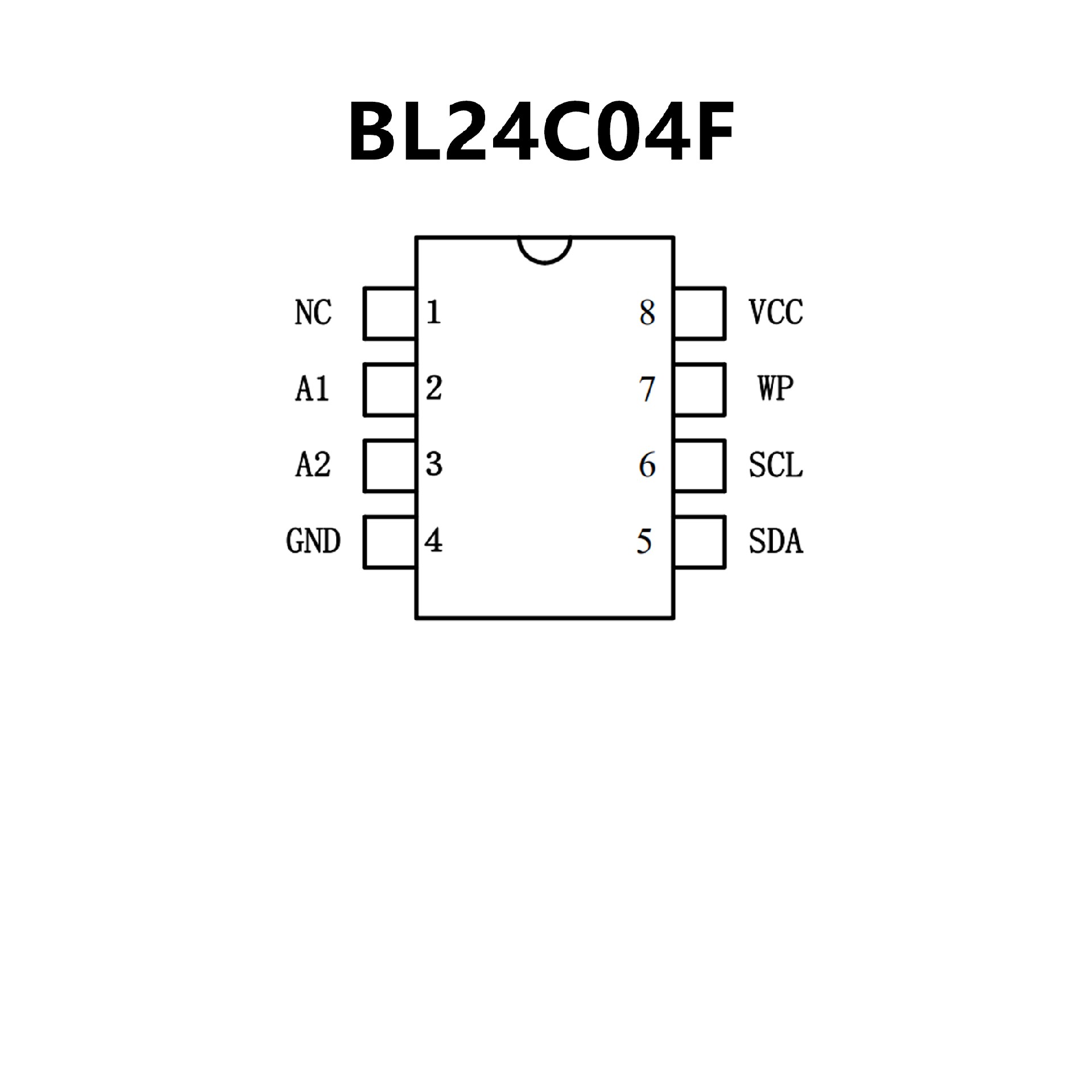

BL24C04F.pdf? Compatible with all I2C bidirectional data transfer protocol
? Memory array:
4 Kbits (512bytes) of EEPROM
Page size: 16 bytes
? Single supply voltage and high speed:
1MHZ
Random and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Write Protect Pin for Hardware Data Protection
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
HBM 6000V
? 8-lead PDIP/SOP/TSSOP/ UDFN and TSOT23- 5packages

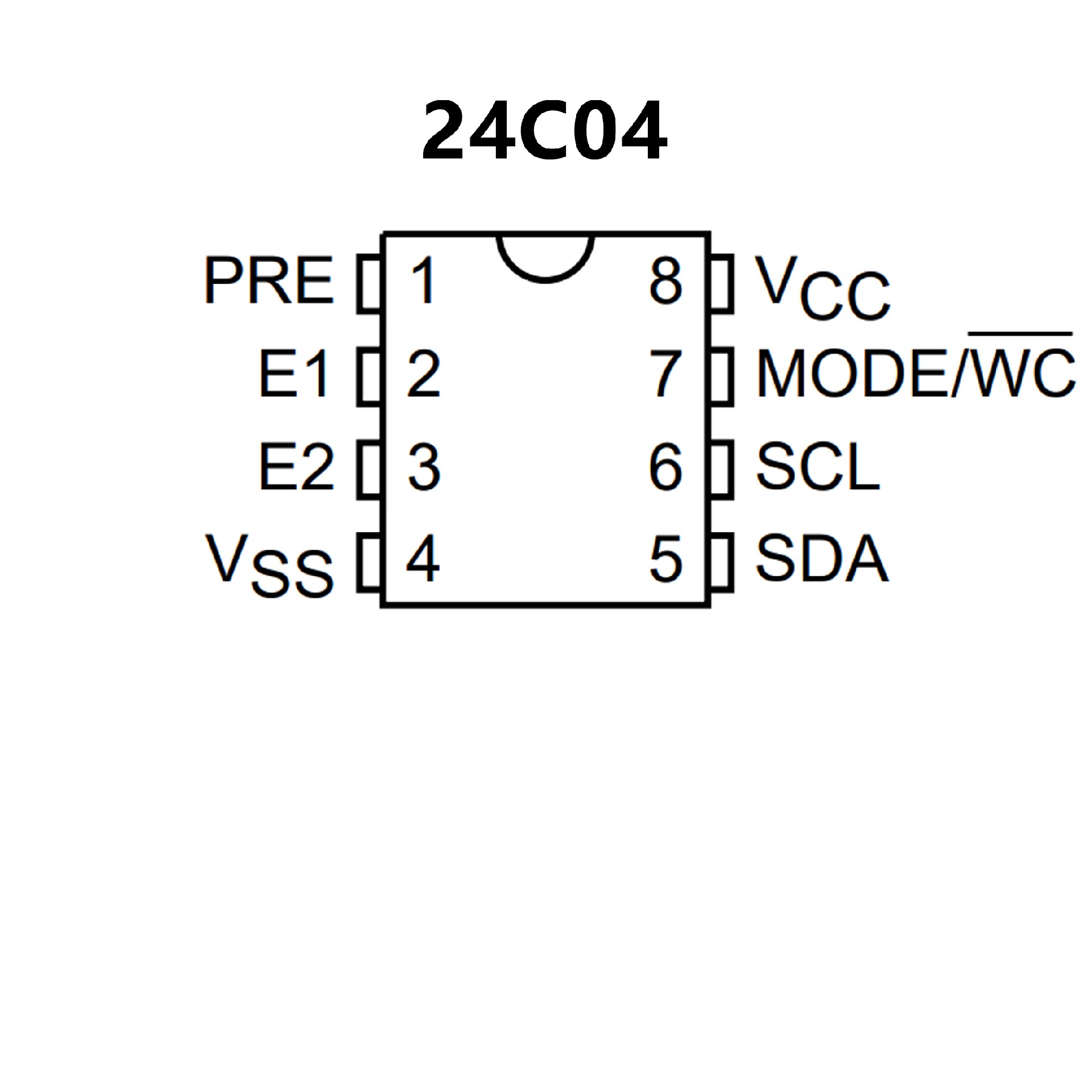

? 1million erase/write cycles with 40 years data retention
? Single supply voltage:
3V to 5.5V for ST24x04 versions
2.5V to 5.5V for ST25x04 versions
? Hardware write control versions: st24w04 and st25w04
? Programmable write protection
? Two wire serial interface, fully i2c bus compatible
? Byte and multibyte write (up to 4 bytes)
? Page write (up to 8 bytes)
? Byte, random and sequential read modes
? Self timed programming cycle
? Automatic address incrementing
? Enhanced esd/latch up performances
